Lonsdor K518ISE Program Porsche Macan Turbo Smart Key

Here’s the step-by-step guide on programming smart key on a  porsche macan turboby using Lonsdor K518ISE key programmer.

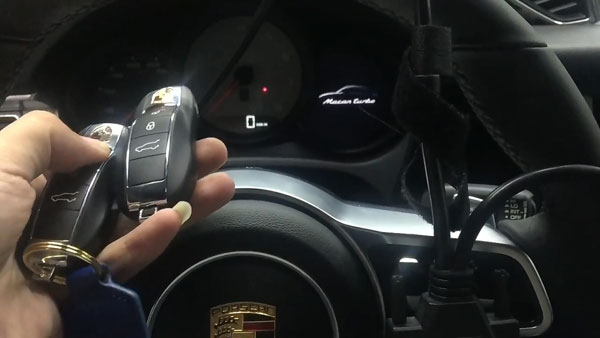

Requirements:
2 keys to be programmed
Read BCM data before programming
Lonsdor K518 key programmer
lonsdor-k518ise-Macan-1
Guide:
Connect K518ise host with vehicle via diagnostic socket
Turn ignition switch to ON position

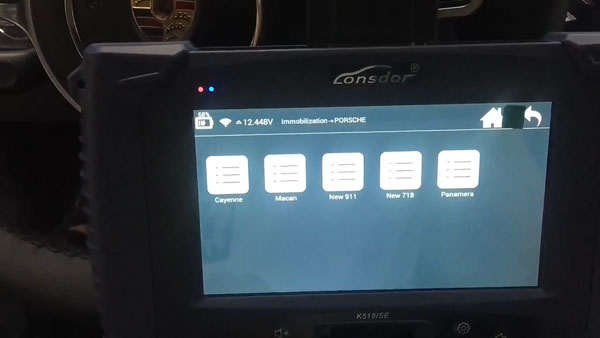

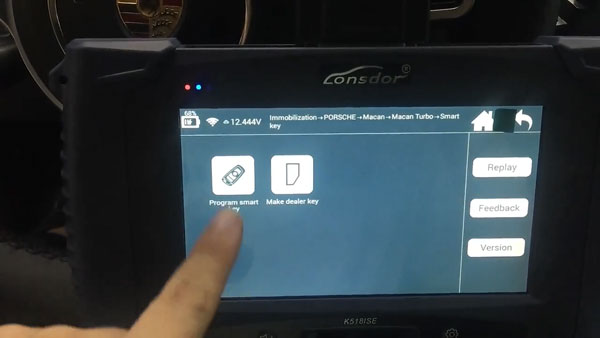

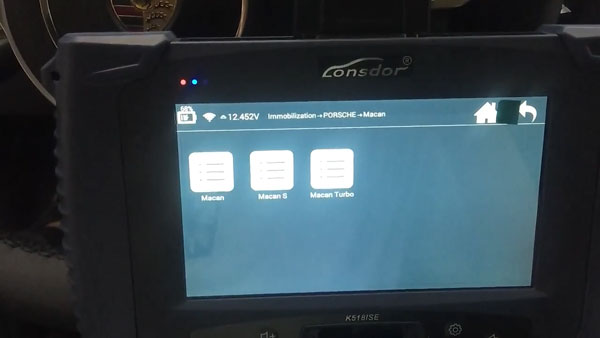

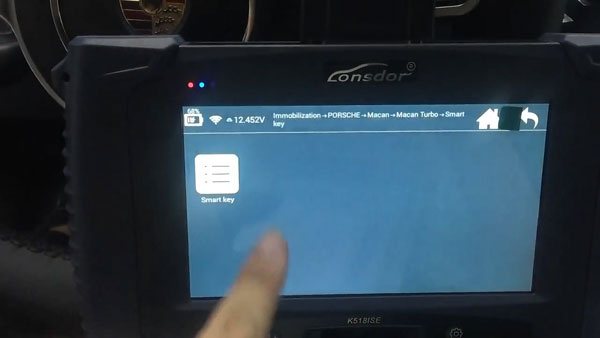

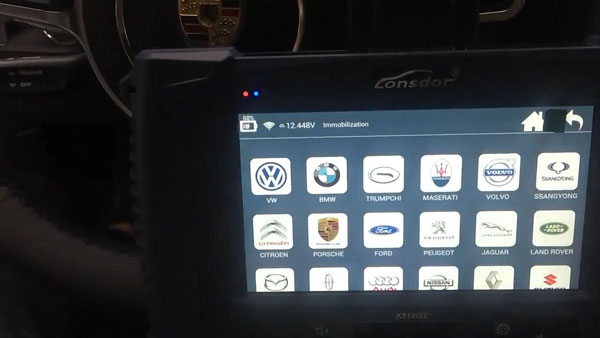

Come to Immobilization->Porsche->Macan->Macan Turbo->Smart Key->Program Smart Key
lonsdor-k518ise-Macan-2
lonsdor-k518ise-Macan-3
lonsdor-k518ise-Macan-4
lonsdor-k518ise-Macan-5
lonsdor-k518ise-Macan-6

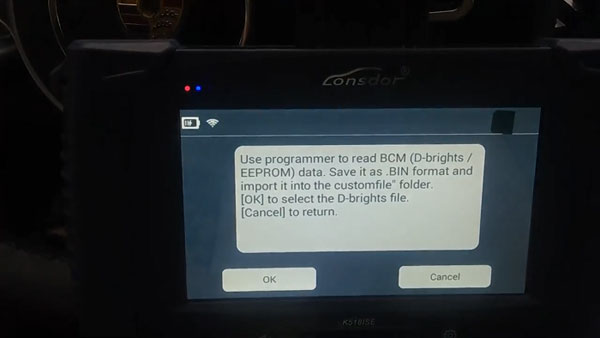

Use programmer to read BCM (D-brights/1N35H EEPROM) data, i.e XprogVVDI Prog. Save it as. BIN format and import it into the customfile folder.

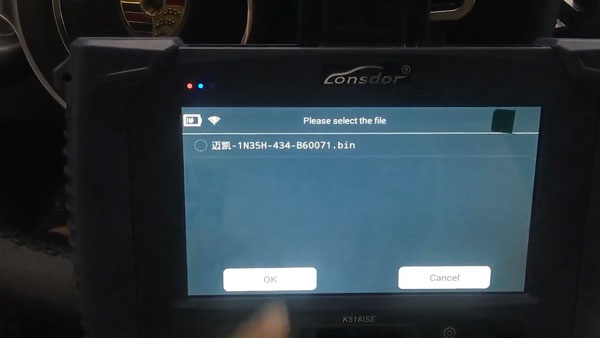

Press OK to upload bin file
lonsdor-k518ise-Macan-7
lonsdor-k518ise-Macan-9
Lonsdor K518 will display vehicle VIN, press OK to confirm
lonsdor-k518ise-Macan-10

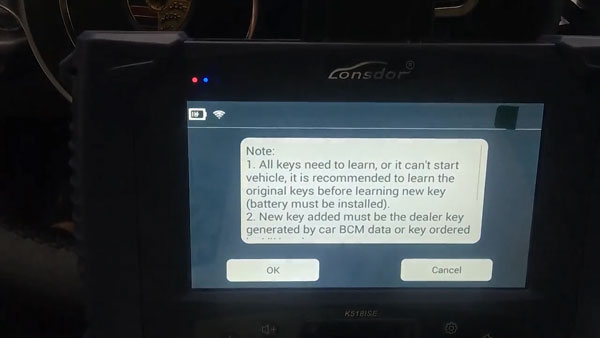

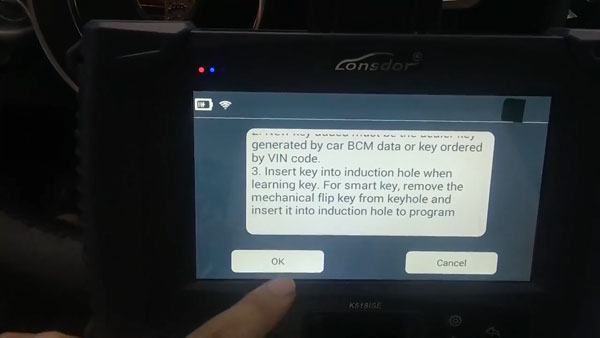

Please do following:
1.All keys need to learn, otherwise it cannot start vehicle. Recommend to learn the original keys before learning new key (battery must be installed)
2. New key added must be the dealer key generated by car BCM data or key ordered by VIN code
3.Insert key into induction hole when learning key. For smart key, remove the mechanical flip key from keyhole and insert it into induction hole to program.
lonsdor-k518ise-Macan-11
lonsdor-k518ise-Macan-12

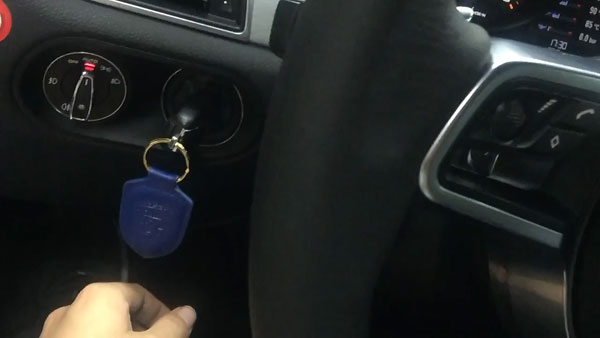

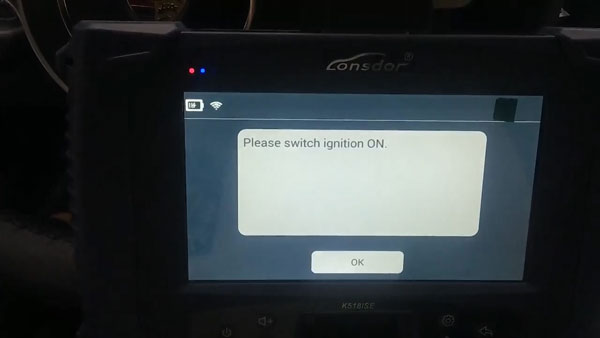

Turn ignition to ON
lonsdor-k518ise-Macan-13
lonsdor-k518ise-Macan-14
Communicating…please wait

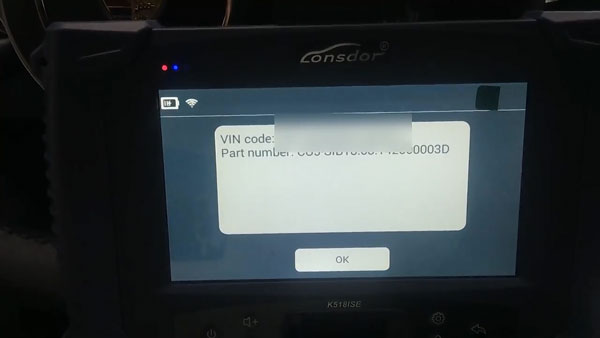

Lonsdor K518ISE will display vehicle VIN and part number, press OK to confirm
lonsdor-k518ise-Macan-15

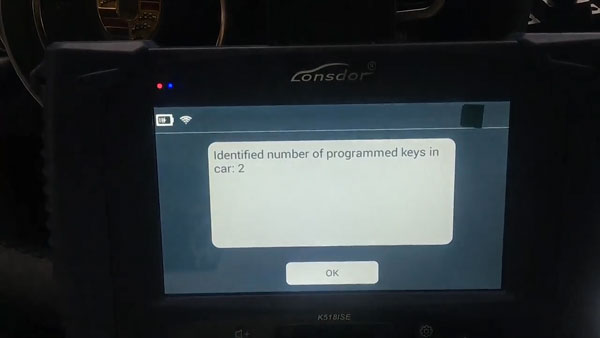

Identified number of programmed keys in car: 2
lonsdor-k518ise-Macan-16

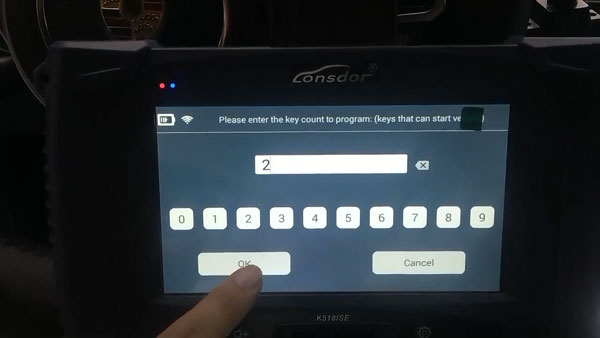

Enter key number to be programmed, here we are going to program  2 keys
lonsdor-k518ise-Macan-17
Building communication

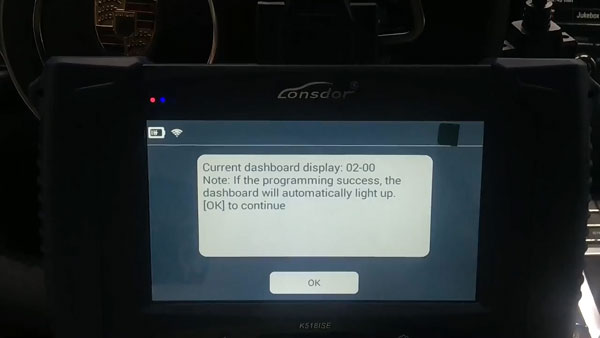

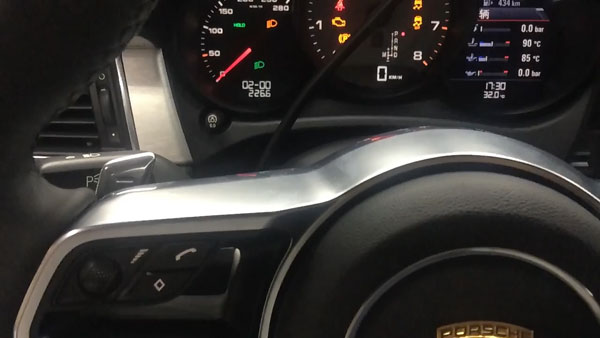

Current dashboard display: 02-00
Note: if the programming success, the dashboard  will turn on automatically
lonsdor-k518ise-Macan-18
lonsdor-k518ise-Macan-19

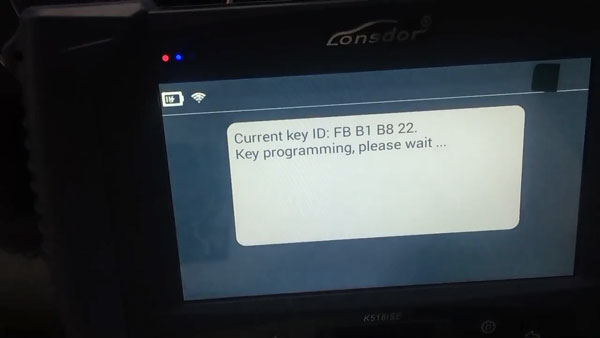

K518 shows current key ID and programming processing
lonsdor-k518ise-Macan-20
Insert new key into ignition switch

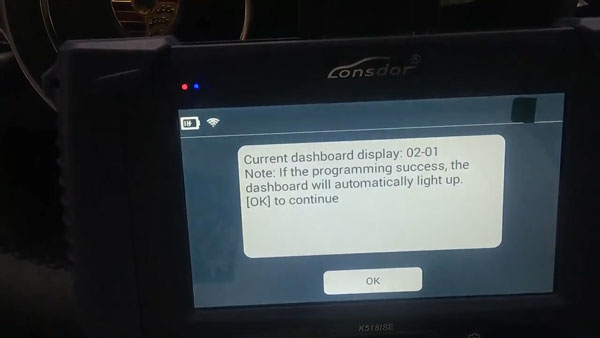

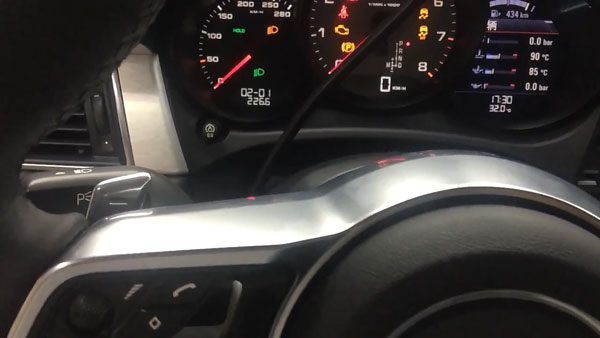

Current dashboard display: 02-01
Note: if the programming success, the dashboard  will turn on automatically
lonsdor-k518ise-Macan-21
lonsdor-k518ise-Macan-22

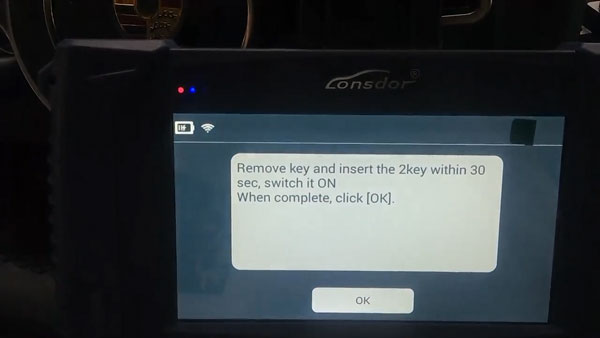

Remove key and insert 2nd key within 30 sec, turn ignition ON
lonsdor-k518ise-Macan-23

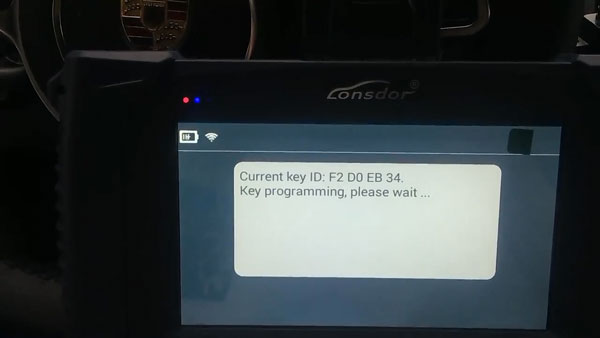

Lonsdor K518 shows 2nd key current ID and programming
lonsdor-k518ise-Macan-24

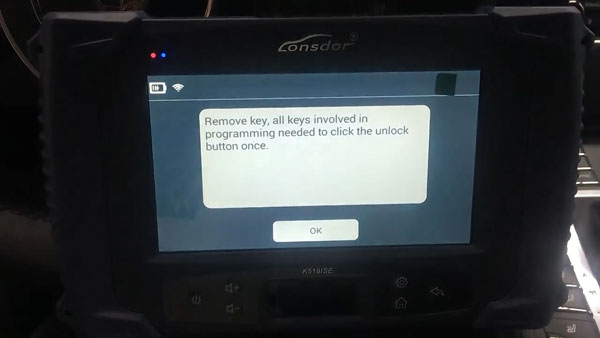

Remove key, all keys involved in programming need to click the unlock button once
lonsdor-k518ise-Macan-25

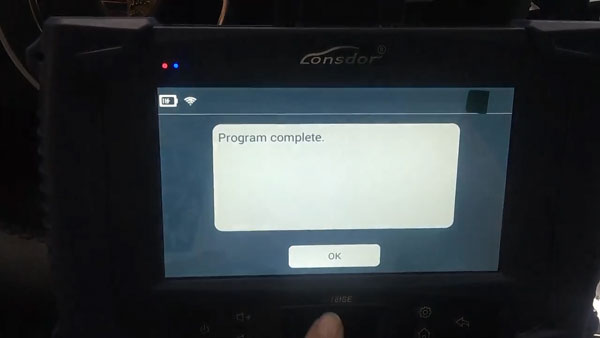

Program success
lonsdor-k518ise-Macan-26
Program smart key success will automatically generate remote

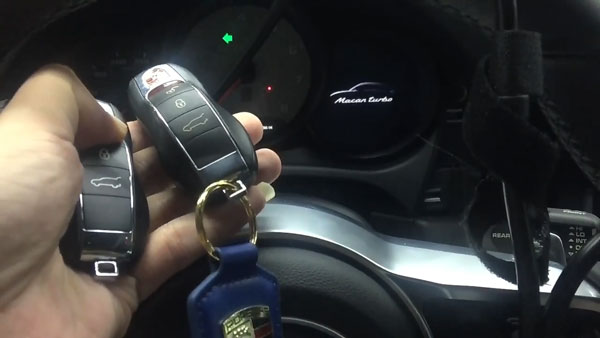

Test the new smart key
lonsdor-k518ise-Macan-27
