How to Use Lonsdor K518 with SVG149 Cable for VDO Clusters All Keys Lost?

As titled, here is an example of how to use the Lonsdor K518 with the SPVG SVG149 NEC Dash Cable for a VDO cluster with all keys lost.



Cluster type example: VDO NEC24C64

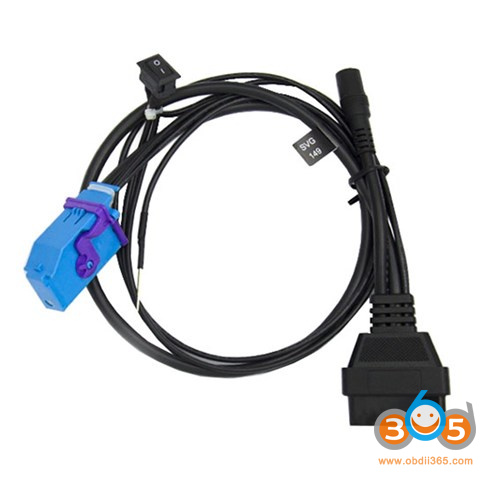

The SVG149 cable is designed to work for the ALL KEYS LOST solution on VAG instrument clusters with the NEC microprocessor. The SVG-149 cable allows you to plug your Supervag directly into the back of the VDO VDD cluster.

Main steps:

Back up eeprom
Read Immo data
Make dealer key
Directly add key



Procedure:

If you use Lonsdor, there is no follow-up procedure in it’s software.

1. Back up EEPROM

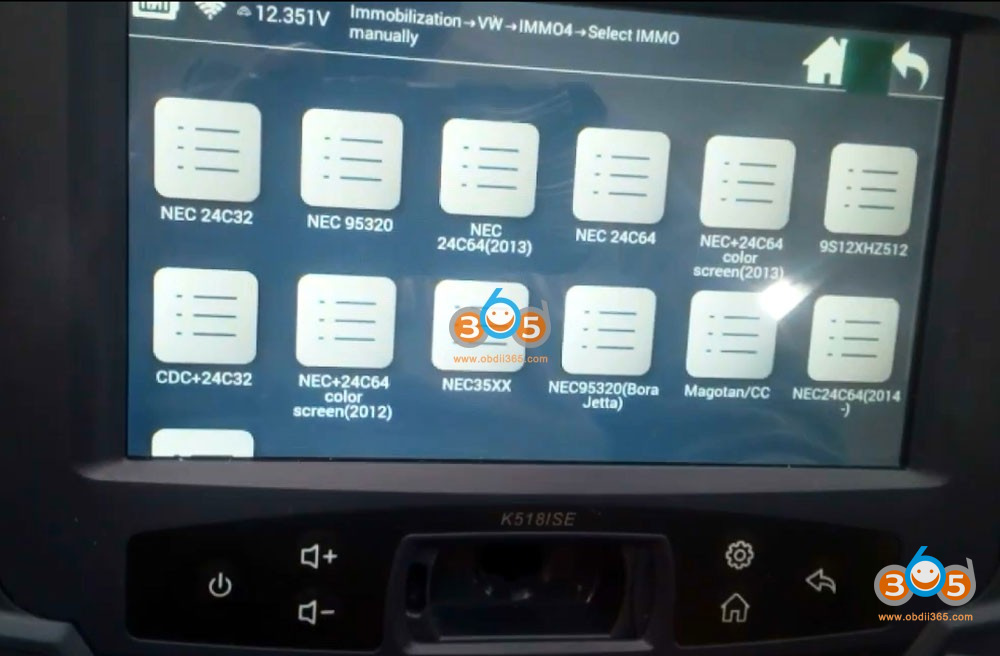

Select Immobilizer-VW-IMMO4-Select IMMO manually- NEC+24C64- Immobilizer.

Back up EEPROM.

Connect SVG149 cable and pogo pin with cluster.

Detect cluster number.

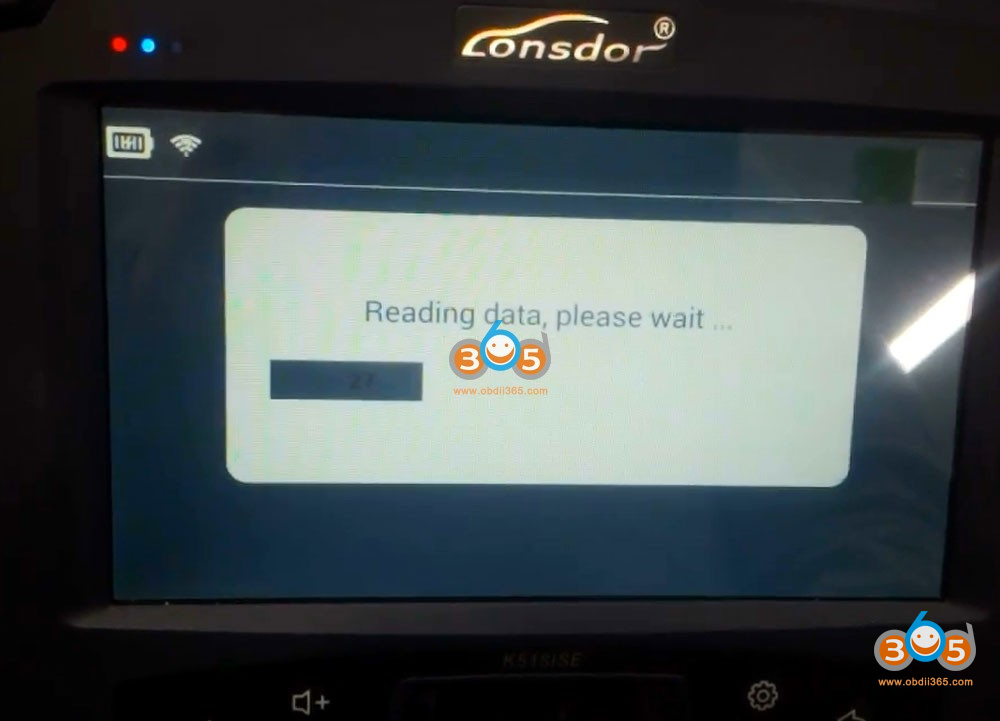

Reading eeprom data.

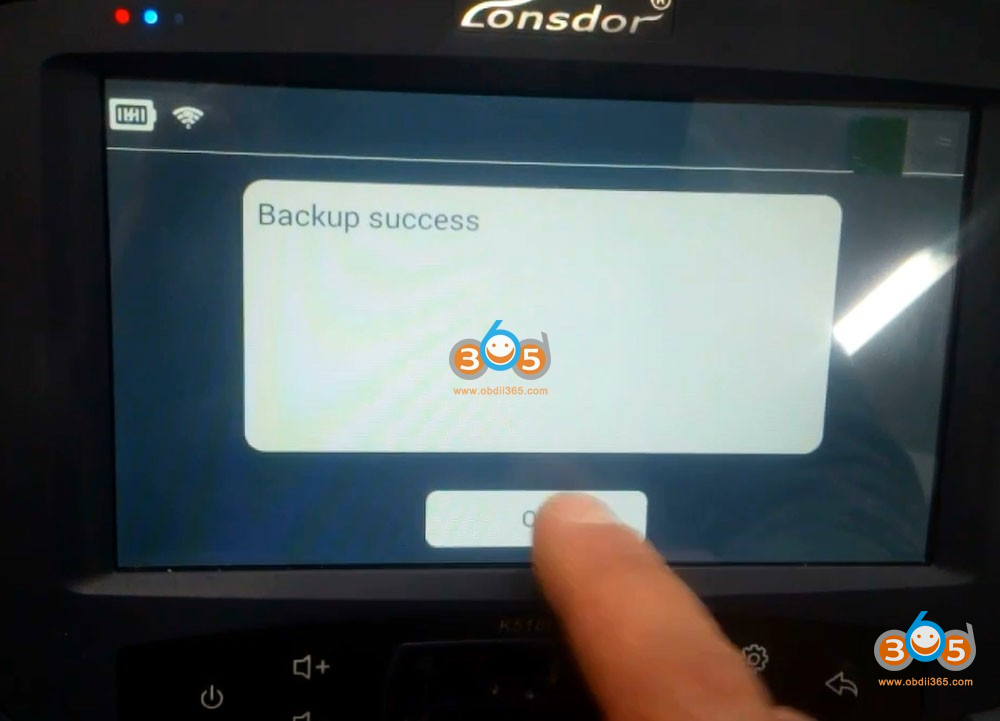

Back up eeprom successfully.

2. Read IMMO Data

Select Read IMMO data and follow prompts.

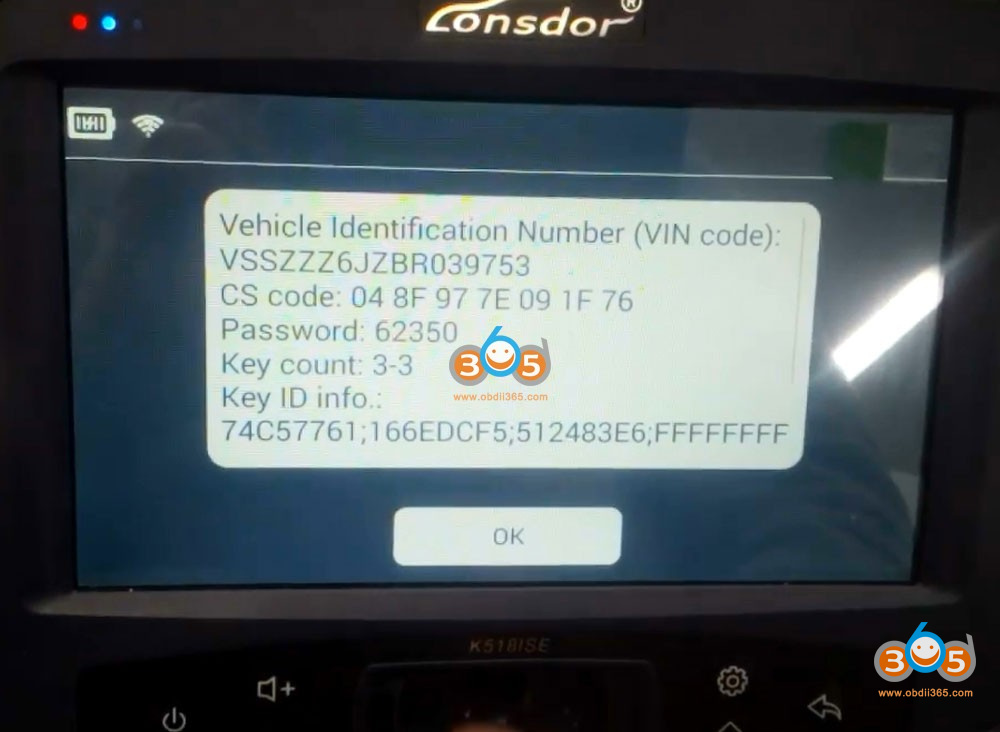

Read immo data (VIN, CS, password, key ID, key numbers) successfully.

3. Make dealer key

Select Make Dealer Key.
Place the key to be programmed in the key slot.

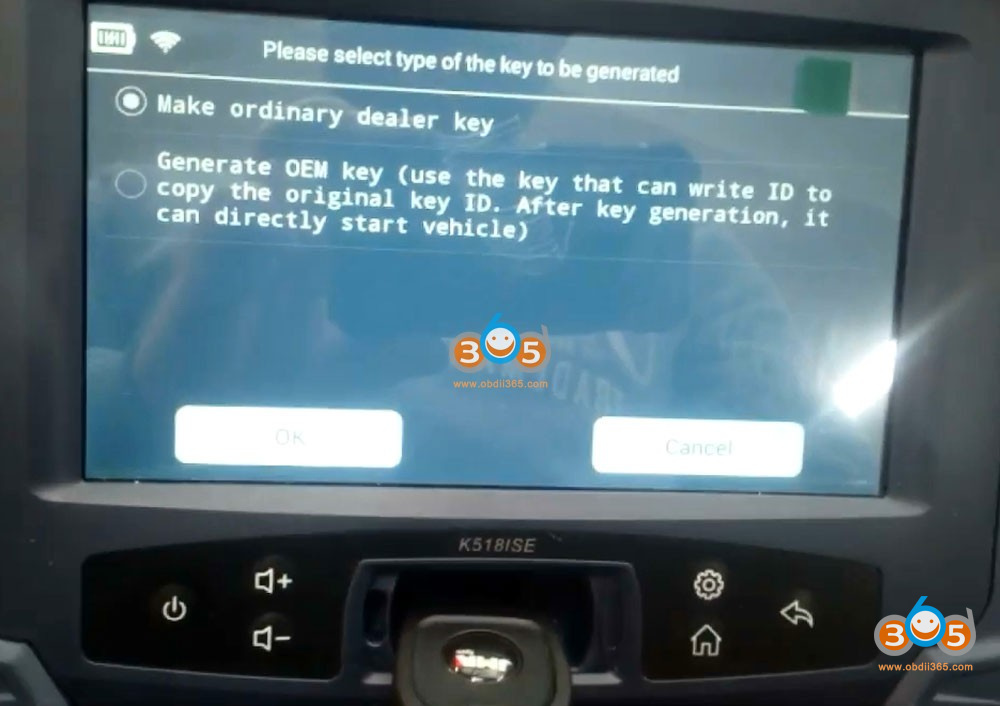

Make an ordinary dealer key.

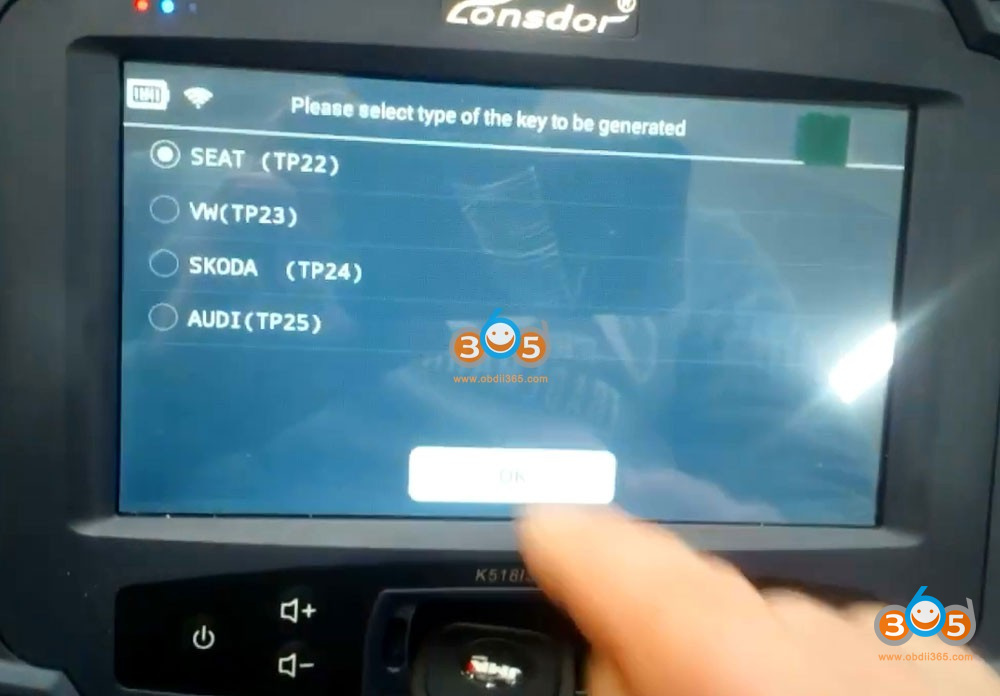

Select brand: Seat TP22

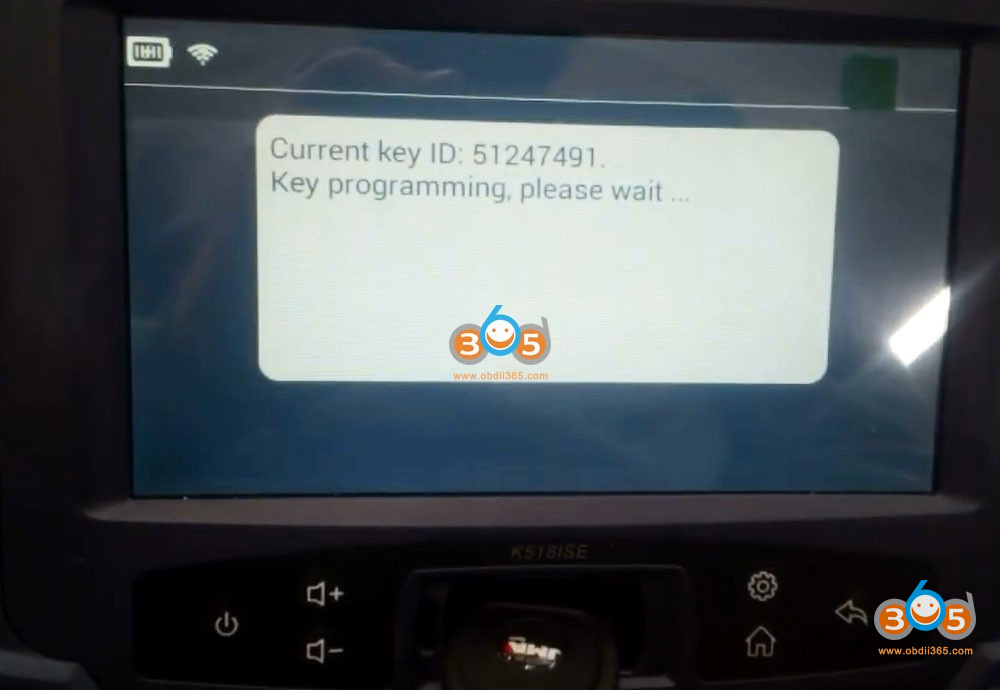

Read current key ID.

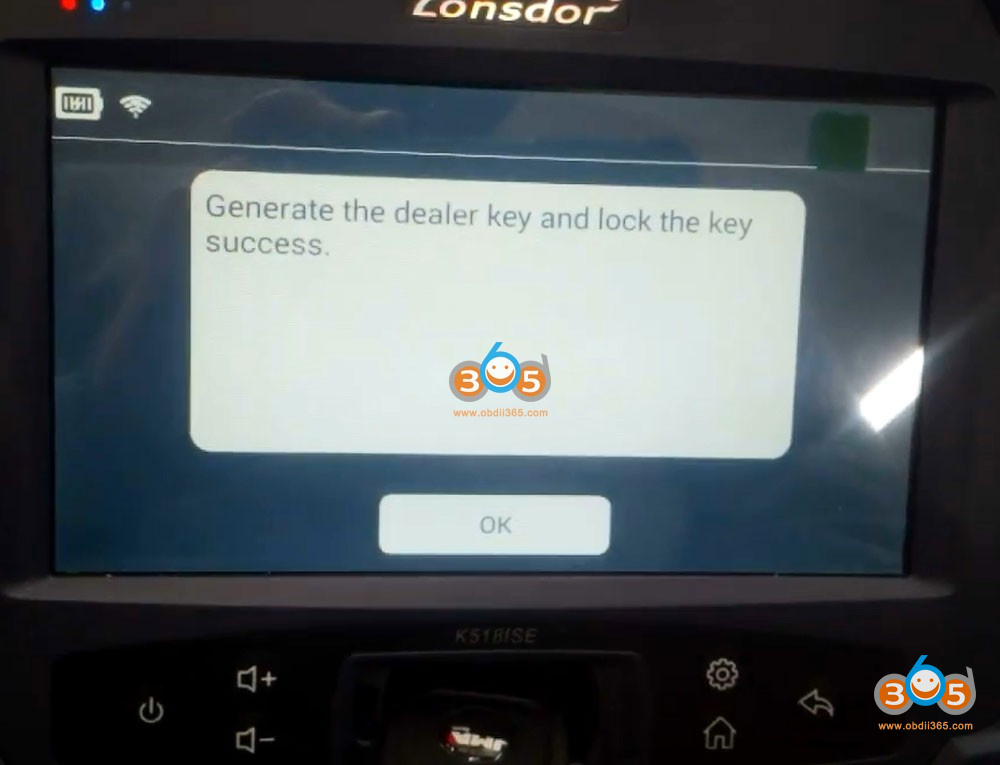

Generate dealer key and lock key.

4. Add key

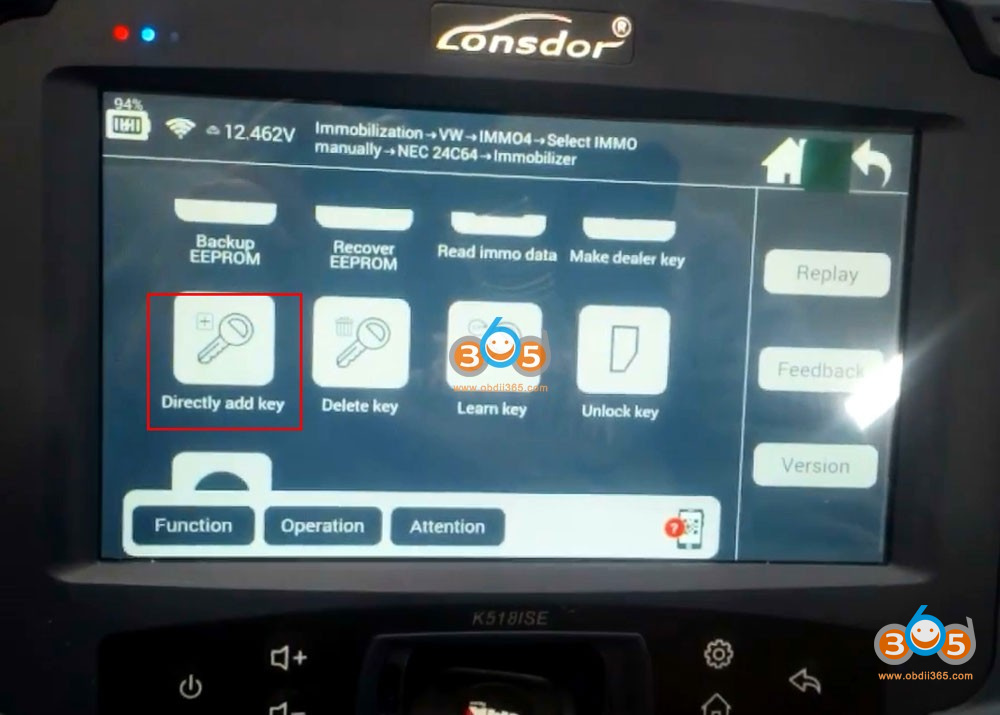

Here is a mechanical key, choose Directly add key menu.

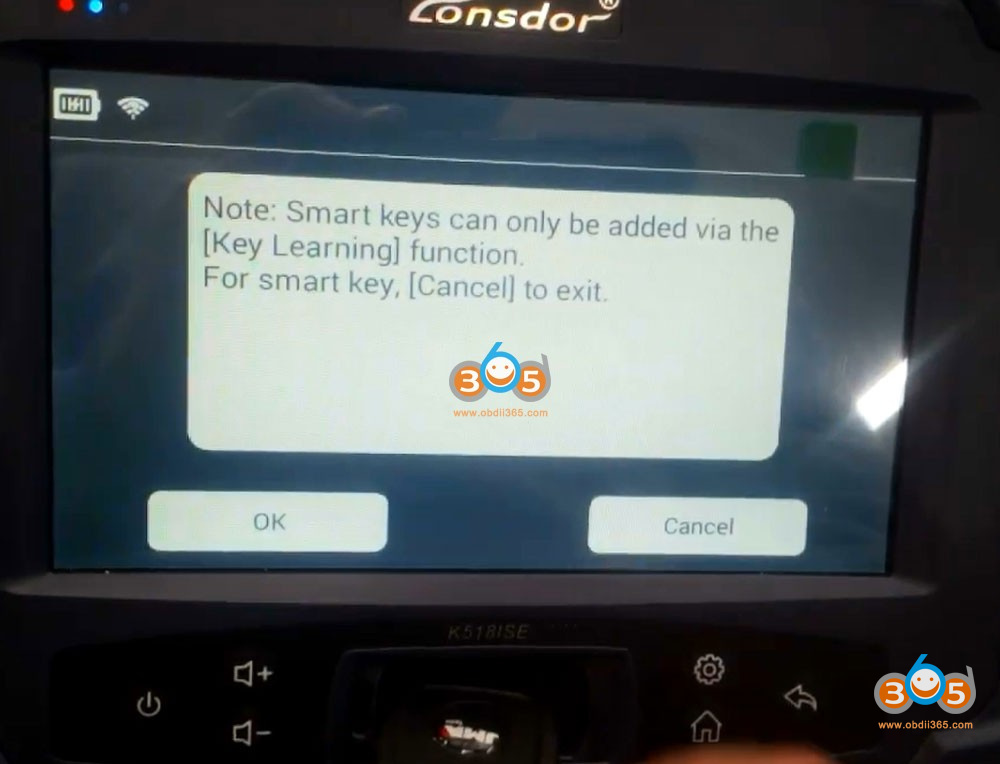

If it is smart key, go to Key Learning function instead.

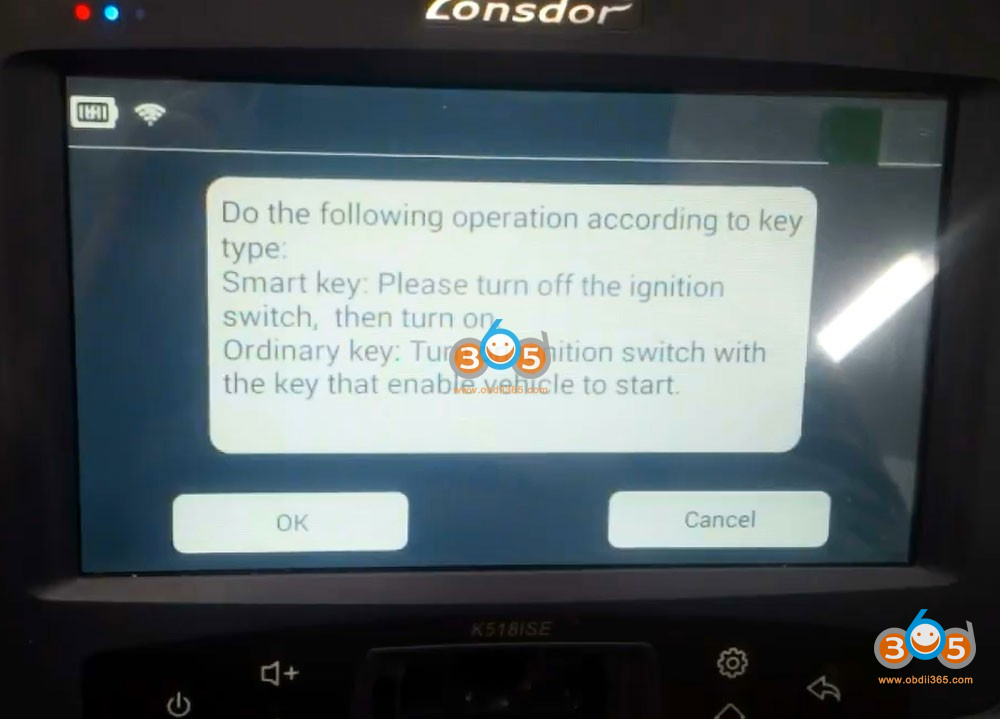

Turn on ignition switch.

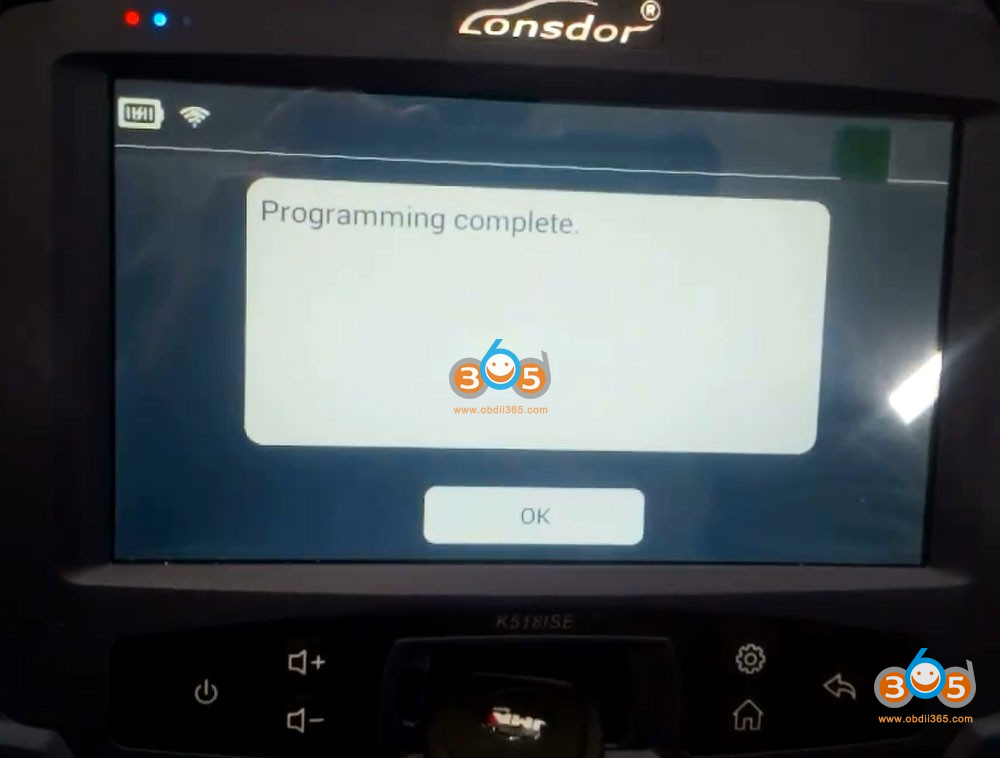

Programming key compleye.

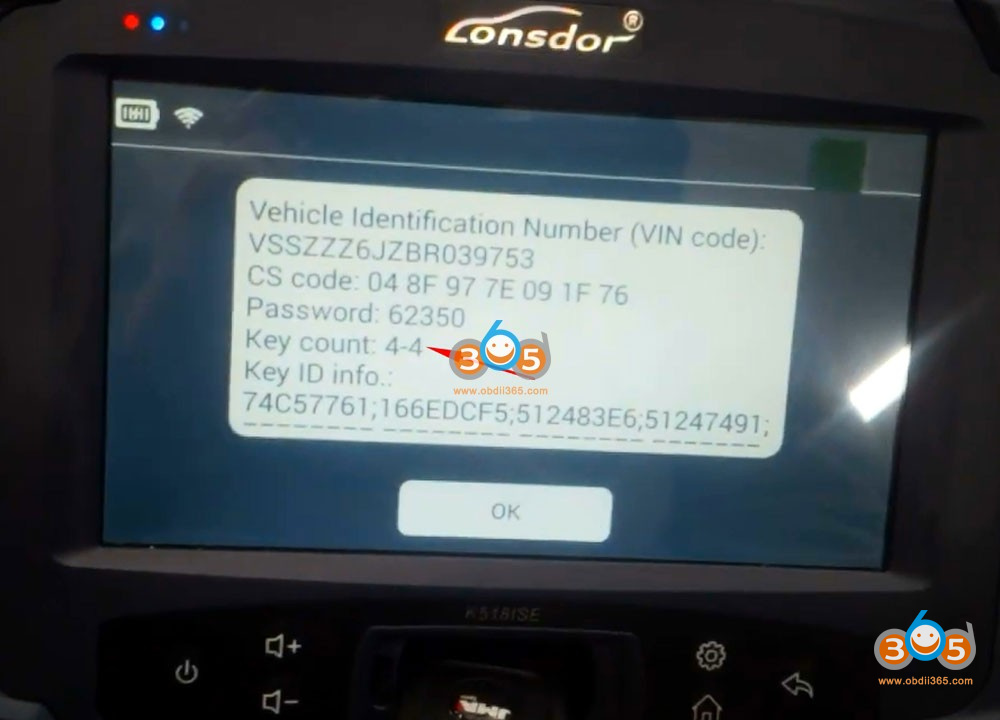

Read Immo data again.
Now you can see a new key has been programmed.

FYI:

The Pogo PIN method can corrupt eeprom checksum on VW Polo, Seat Ibiza and Skoda Fabia so better to avoid use this method on these. Generally speaking of course the best method is to read eeprom and modify it to enter service mode, then you have backup.
