Lonsdor 518ISE Program 2018 Range Rover Evoque KVM All Keys Lost via JLR OBD Key

2018 Range Rover Evoque is very difficult to program when lost all smart keys.  Here we program it in a crazy easy what via OBD only.  No EEPROM, No KVM out, no break the system.



Tools required:

Lonsdor K518ISE or K518S key programmer

Lonsdor new JLR software license

Lonsdor dedicated JLR proximity key

The vehicle is the FK72 version. For HPLA AKL, you will need extra JLR connector as well.

lonsdor-2018-evoque-akl-via-obd-1

How-to: Program 2018 Evoque KVM system using OBD key

First, connect K518 obd cable to the vehicle
Located just below the driver side dash

lonsdor-2018-evoque-akl-via-obd-2

lonsdor-2018-evoque-akl-via-obd-3

lonsdor-2018-evoque-akl-via-obd-4

lonsdor-2018-evoque-akl-via-obd-5

lonsdor-2018-evoque-akl-via-obd-6

lonsdor-2018-evoque-akl-via-obd-7

lonsdor-2018-evoque-akl-via-obd-8

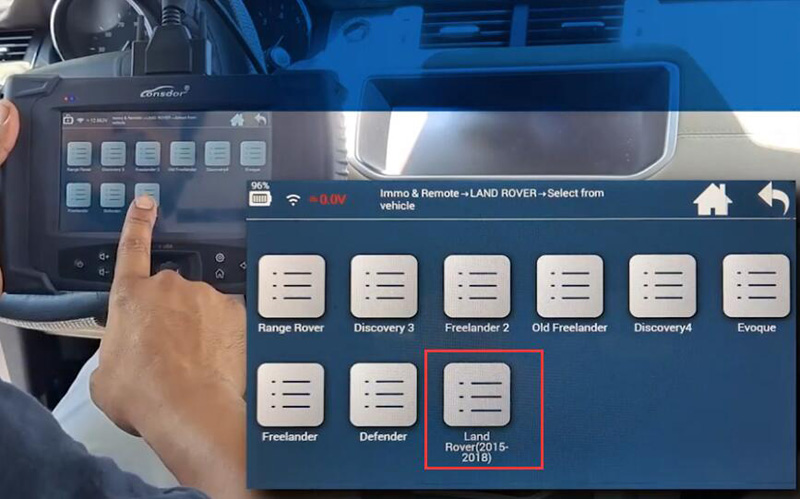

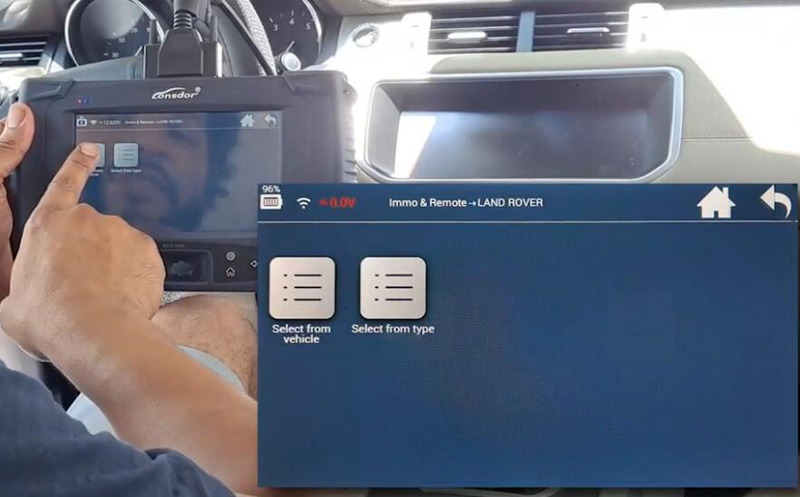

First, select Immo and remote-> Land Rover ->Select from vehicle->Land Rover 2015-2018->Smart key->Select type 4 (program by obd)->All smart key lost and wait to connect

lonsdor-2018-evoque-akl-via-obd-9

lonsdor-2018-evoque-akl-via-obd-10
Choose all keys lost will delete the original key from system be sure before selecting

lonsdor-2018-evoque-akl-via-obd-11
Update works for both FK72 and HPLA versions of KVM system

lonsdor-2018-evoque-akl-via-obd-12
All keys lost, select cancel and confirm

lonsdor-2018-evoque-akl-via-obd-13

lonsdor-2018-evoque-akl-via-obd-14
Select desired key position and generate a working key

lonsdor-2018-evoque-akl-via-obd-15
Place JLR OBD key to be generated into k518ise card slot, select ok to begin

lonsdor-2018-evoque-akl-via-obd-16
Confirm use of Lonsdor dedicated key

lonsdor-2018-evoque-akl-via-obd-17
Reading and witting key

lonsdor-2018-evoque-akl-via-obd-18
Generated successfully. Confirm once the process complete, begin key testing by unlocking the vehicle
Everything works.
Key works straight.
The procedure is done in a few minutes very easy, program a brand new smart key no problem.
