Lonsdor K518 Program Ford Fiesta 2017 4D63 Key

The task is to program a new chip for auto start on a Ford Fiesta car year 2017. We program 4D ID63 chip (80 bit), ID83 with Lonsdor K518ISE key programmer.





Step 1: Identify chip type

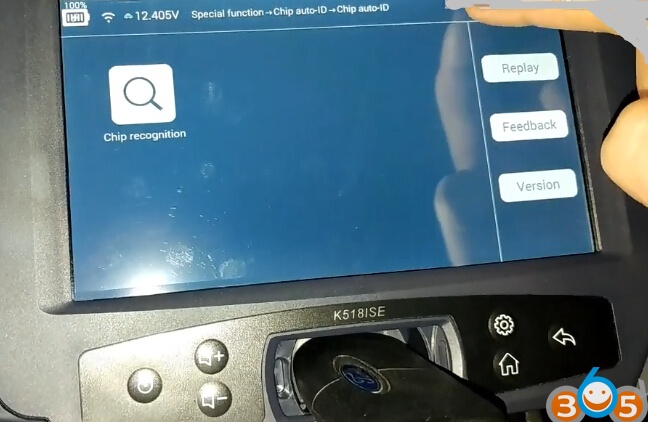

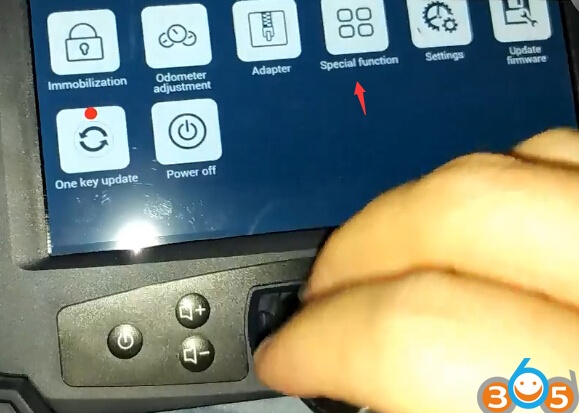

Select Special function->Chip auto ID->Chip auto ID->Chip recognition

Insert key/chip into K518 key slot

lonsdor-k518-ford-fiesta-2017-1

lonsdor-k518-ford-fiesta-2017-2

Lonsdor k518 identified key chip type: 4D chip 63 (80 bit)

lonsdor-k518-ford-fiesta-2017-3



Step 2: Add key

Connect Lonsdor K518 host with vehicle via OBD socket

Select Ford->Fiesta->IMMO->2013 up->Immobilizer->Turn on ignition->Add key

lonsdor-k518-ford-fiesta-2017-4

lonsdor-k518-ford-fiesta-2017-5

lonsdor-k518-ford-fiesta-2017-6

lonsdor-k518-ford-fiesta-2017-8

lonsdor-k518-ford-fiesta-2017-7

If all keys lost, need to register 2 keys to start vehicle

lonsdor-k518-ford-fiesta-2017-9
Insert new key and turn on ignition

lonsdor-k518-ford-fiesta-2017-14

lonsdor-k518-ford-fiesta-2017-10
Identify key number: 4

lonsdor-k518-ford-fiesta-2017-11
Reading pin automatically

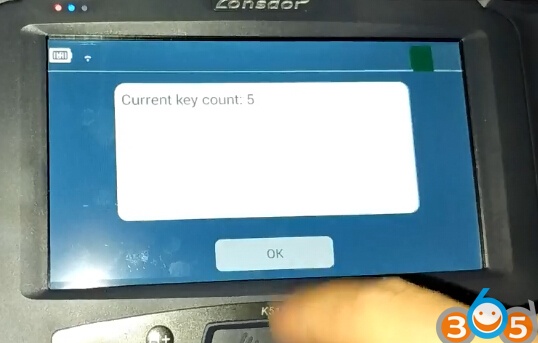

lonsdor-k518-ford-fiesta-2017-12
key programmed successfully

lonsdor-k518-ford-fiesta-2017-13
Program complete

lonsdor-k518-ford-fiesta-2017-15

Start car with the new key.

Done.
