Lonsdor K518ISE Adds Honda City 2014 Smart Key

Lonsdor K518ISE key programmer added 3-button smart keys on a Honda City year 2014 successfully.

lonsdor-k518ise-honda-city-1

Connect K518ISE host with vehicle via OBD diagnostic socket

Select Immobilizer->Honda->Select from type->Smart Key->Button Type 3->All Keys Lost

lonsdor-k518ise-honda-city-2

Take all the smart keys out of car

lonsdor-k518ise-honda-city-3
Put a programmed smart key inside car

lonsdor-k518ise-honda-city-4
Press start button twice to see if it can switch ignition

lonsdor-k518ise-honda-city-5

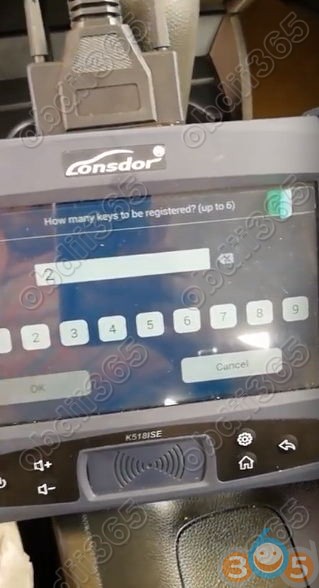

Select keys number to be registered: 2

lonsdor-k518ise-honda-city-6

Take all the smart keys out of car
Put a programmed smart key inside car
Turn ignition on within 15 sec

lonsdor-k518ise-honda-city-7
Check if the immo indicator goes off
Press YES to continue

Turn ignition on within 15 sec

2 keys has been successfully programmed

lonsdor-k518ise-honda-city-8

Program complete.
Test the remote and start car.
