Lonsdor K518ISE Program 2017 Ford Fusion Smart Key

Ford Fusion 2017 smart key successfully programmed by Lonsdor K518ISE key programmer under New Mondeo menu.

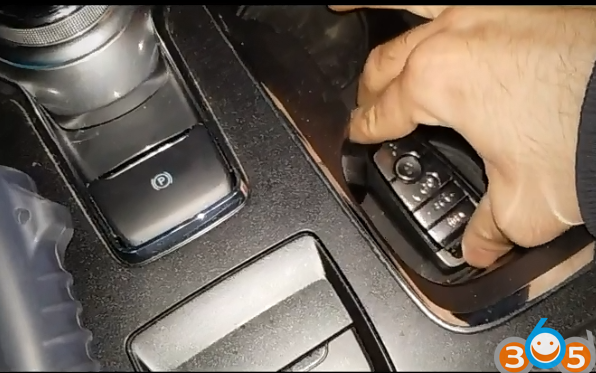

lonsdor-k518-2017-ford-fusion-2
Original key (Put original key into cup holder)
lonsdor-k518-2017-ford-fusion-1
New smart key 315MHz
Connect K518 with vehicle via OBD socket
Select Immobilizer->Ford->China->New Mondeo->2017->Smart Key->Add smart key

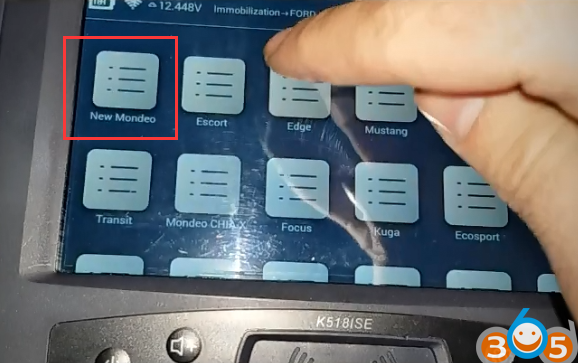

lonsdor-k518-2017-ford-fusion-3

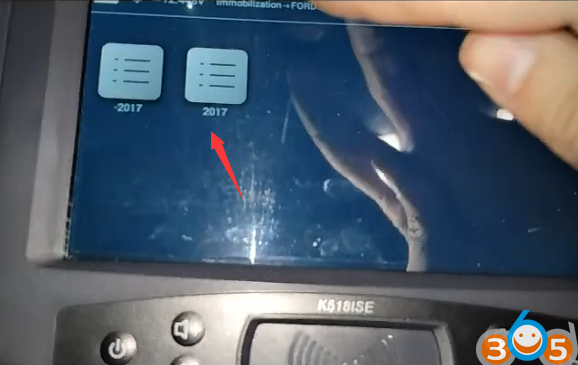

lonsdor-k518-2017-ford-fusion-4
lonsdor-k518-2017-ford-fusion-5
Turn ignition switch to ON position

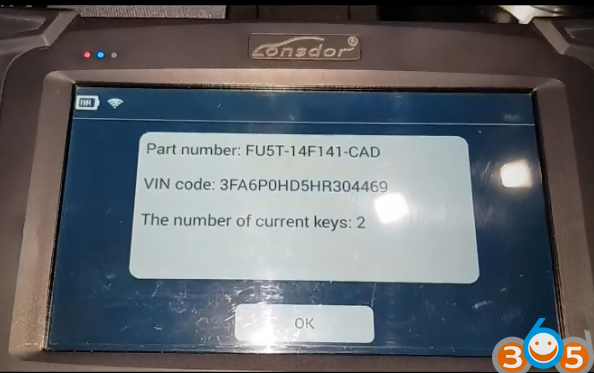

lonsdor-k518-2017-ford-fusion-6
Lonsdor K518 reads vehicle info. VIN, key number
Put a new smart key into slot (cup holder) and press Start button
lonsdor-k518-2017-ford-fusion-7

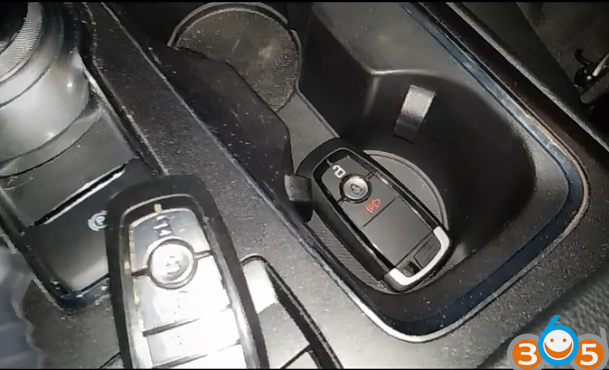

lonsdor-k518-2017-ford-fusion-8
Programming in progress

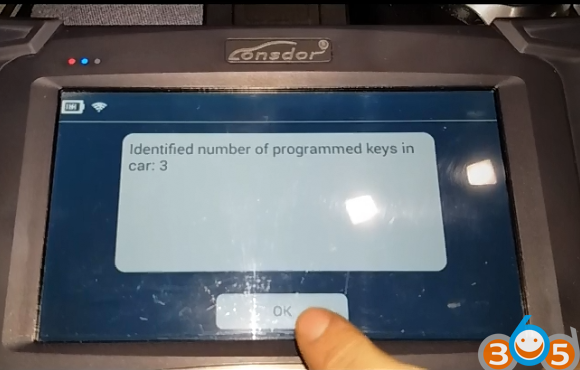

lonsdor-k518-2017-ford-fusion-9
Identify new key programmed

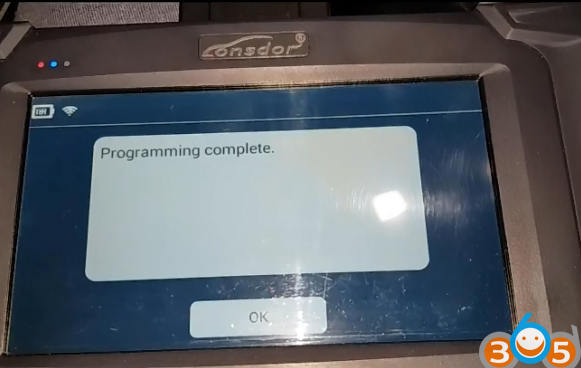

lonsdor-k518-2017-ford-fusion-10
Program completed.
Test the new key.
