Lonsdor K518ISE Program Cadillac SRX 2010-2014 Smart Key

Another test report: Lonsdor K518ISE key programmer read pin code and program smart key on Cadillac SRX from year 2010-2014 successfully.



Connect K518 host with vehicle via OBD diagnostic socket

Step 1: Read pin code

Select Immobilizer->Cadillac->Read Pin Code->Turn ignition to ON position

lonsdor-k518-cadillac-srx-1

lonsdor-k518-cadillac-srx-2

lonsdor-k518-cadillac-srx-3

Read 4-digit pin code very fast

lonsdor-k518-cadillac-srx-4

Step 2: Program smart key

Select SRX->2010-2014->Smart key->Type 1->Add smart key

lonsdor-k518-cadillac-srx-5

lonsdor-k518-cadillac-srx-6

lonsdor-k518-cadillac-srx-7

Put the original car key in the car, don’t press the pedal brakes

Long press the Start button to switch ignition on

lonsdor-k518-cadillac-srx-8

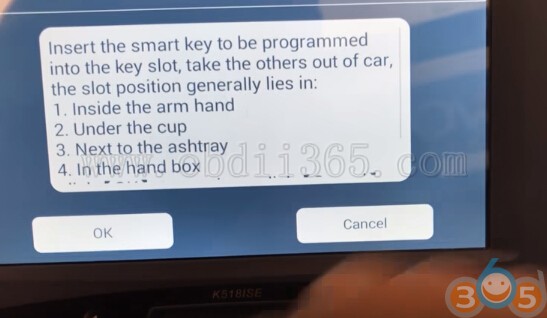

Insert the smart key to be programmed into the key slot, take the others out of car

lonsdor-k518-cadillac-srx-9

Enter 4-digit pin code to access

lonsdor-k518-cadillac-srx-10

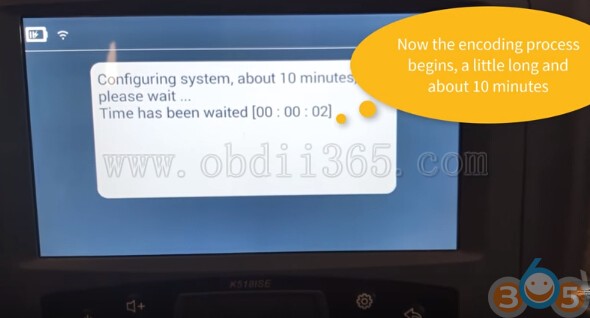

Configuring system, wait for 10 minutes

lonsdor-k518-cadillac-srx-11

Press Start button

lonsdor-k518-cadillac-srx-12

Program succeed



Step 3: Sync key

Lonsdor K518 than prompts to hold down the start button for 12 sec

lonsdor-k518-cadillac-srx-13

Release the Start button and wait for 5 sec

Press and hold the Start button until the dashboard turns on

lonsdor-k518-cadillac-srx-14

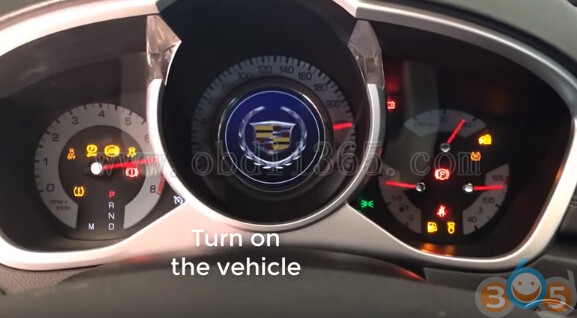

Turn on the vehicle

lonsdor-k518-cadillac-srx-15

Press the Start button and turn ignition off

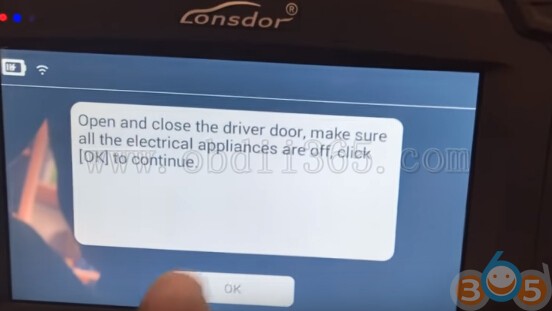

Open and close the driver door, make sure all the electrical appliances are off

lonsdor-k518-cadillac-srx-17

lonsdor-k518-cadillac-srx-16

Configuring system, wait 30 sec

All key must be synchronized

lonsdor-k518-cadillac-srx-18

Slam the brakes, press the Start button to start the engine and wait for 5 sec.

Done.
