Lonsdor K518ISE Program Honda N-BOX All Smart Keys Lost

One of our customers has successfully program a smart key on a Honda N-BOX (NBOX) Japanese model using Lonsdor K518ISE key programmer when all keys lost.



Connect K518 host with vehicle via obd diagnostic socket

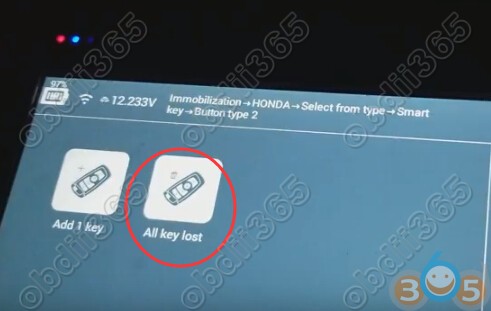

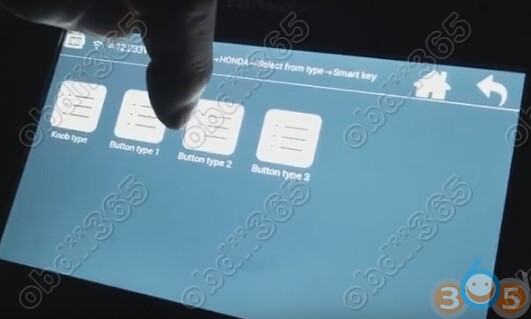

Select Immobilizer->Honda->Select from type->Smart Key->Button Type 2-> All Key Lost

lonsdor-k518-honda-all-key-lost-1

lonsdor-k518-honda-all-key-lost-2

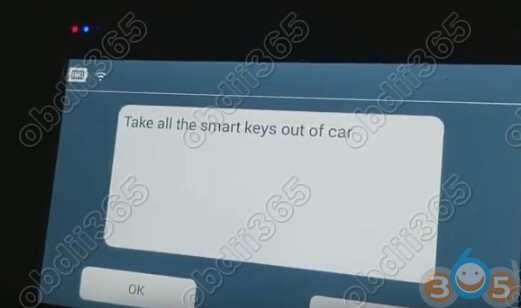

lonsdor-k518-honda-all-key-lost-3

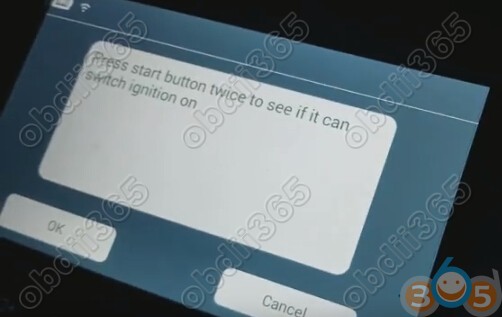

Press Start button twice to see if can turn on ignition switch

Here press Cancel button

lonsdor-k518-honda-all-key-lost-4

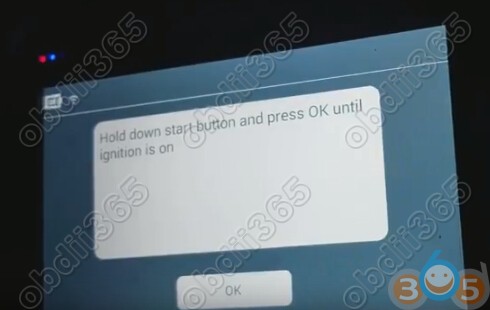

Hold down Start button and press OK until ignition goes on

lonsdor-k518-honda-all-key-lost-5

lonsdor-k518-honda-all-key-lost-6

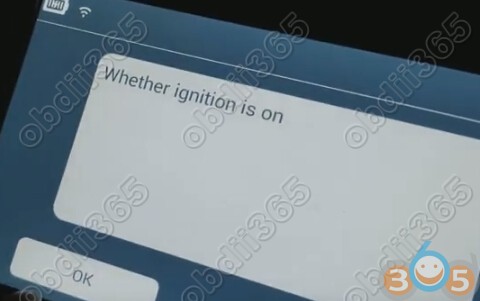

lonsdor-k518-honda-all-key-lost-7

Ignition indicator goes on

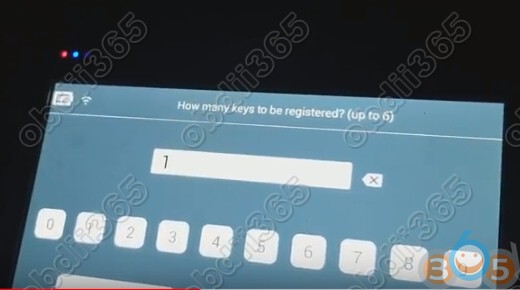

Enter number of keys to be registered (up to 6): 1

lonsdor-k518-honda-all-key-lost-8

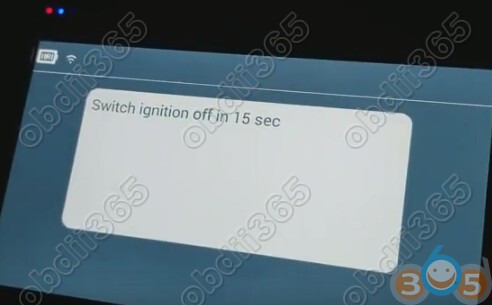

Turn ignition off within 15 sec

lonsdor-k518-honda-all-key-lost-9

Turn ignition on within 15 sec

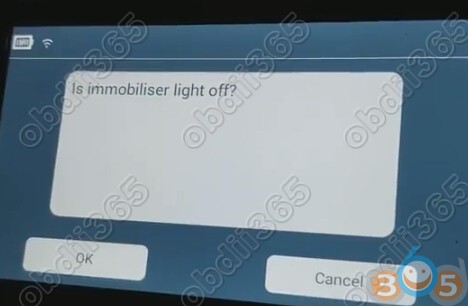

lonsdor-k518-honda-all-key-lost-10

Check if immo indicator goes off.

Press OK to confirm if yes

Turn ignition off within 15 sec

Turn ignition on within 15 sec

Turn ignition off within 15 sec

Turn ignition on within 15 sec

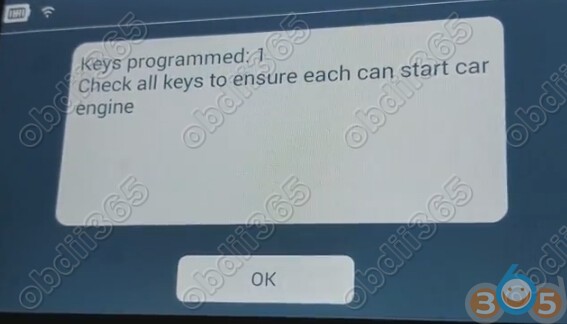

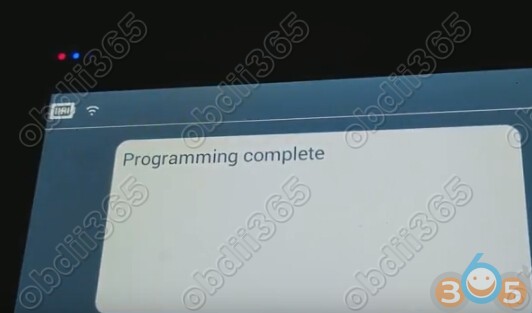

Lonsdor K518ise has successfully programmed 1 smart key on NBOX

lonsdor-k518-honda-all-key-lost-11

lonsdor-k518-honda-all-key-lost-12

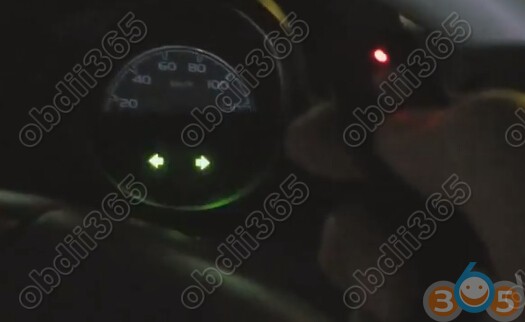

Test remote control and start engine

lonsdor-k518-honda-all-key-lost-13

Working!!!
