Lonsdor K518ISE Program Mazda CX9 2016 All Smart Keys Lost

How-to: program smart keys on Mazda CX9 Second generation (2016–present) when all keys lost using Lonsdor K518ISE key programmer.

mazda-cx9-all-key-lost-lonsdor-2

mazda-cx9-all-key-lost-lonsdor-1

At least 2 smart keys are required

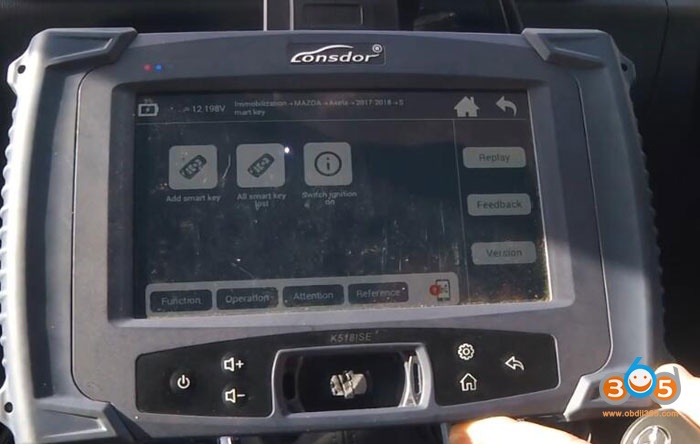

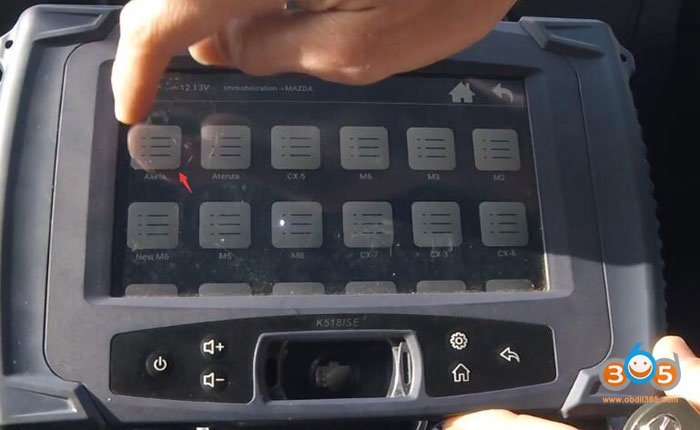

Go to Immobilizer->Mazda->Axela->2017-2018-> Smart Key->All smart key lost

mazda-cx9-all-key-lost-lonsdor-3

mazda-cx9-all-key-lost-lonsdor-4

mazda-cx9-all-key-lost-lonsdor-5

Read part number

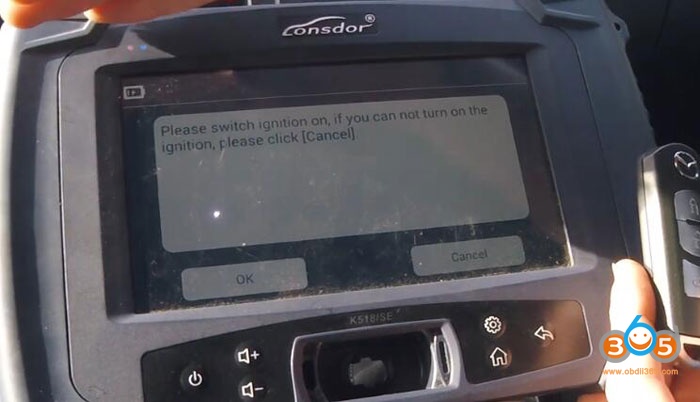

Turn on ignition, if you cannot turn on the ignition, click “Cancel”

mazda-cx9-all-key-lost-lonsdor-6

Identify number of keys programmed: 4

mazda-cx9-all-key-lost-lonsdor-7
Configuring system, wait about 7 minutes, the the horn will ring

mazda-cx9-all-key-lost-lonsdor-8
Lonsdor K518 will erase all registered keys
Switch off ignition
Hold the unregistered smart keys in hand
Turn on ignition by pressing the Start button

mazda-cx9-all-key-lost-lonsdor-9

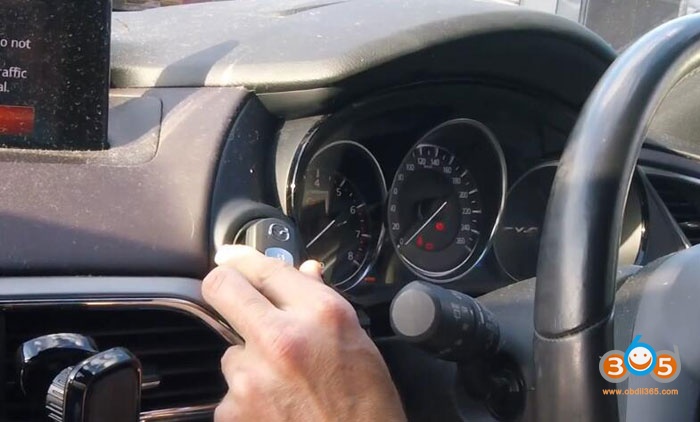

Keep a smart key close to the Start button

mazda-cx9-all-key-lost-lonsdor-10
Program 1 key success
Switch off ignition
Follow same step to program 2nd key

mazda-cx9-all-key-lost-lonsdor-11
Program 2nd key success
Switch off ignition

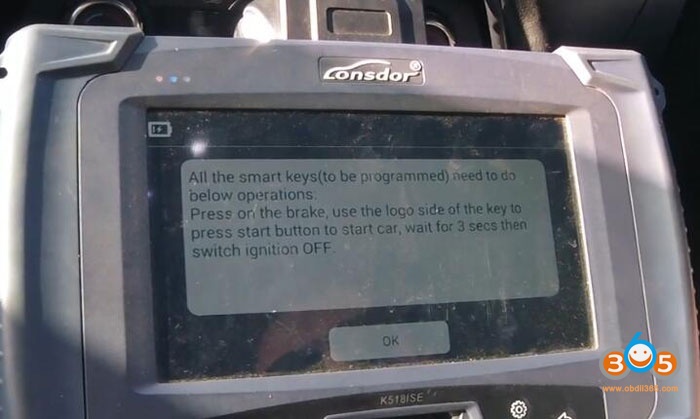

Press the brake. use the logo side of the key to press Start button to start car, wait for 3s then turn off ignition

mazda-cx9-all-key-lost-lonsdor-12

Program complete
Test the new key and start vehicle

mazda-cx9-all-key-lost-lonsdor-13

Done.
