Lonsdor K518ISE Program Mitsubishi ASX 2015 Remote Key

Here’s the instruction on duplicating a new key for Mitsubishi ASX 2015 with chip PCF7936. Chip programming and remote control programming were carried out with the device Lonsdor K518ISE key programmer.

lonsdor-k518-mitsubishi-asx-1

2-button remote key with chip PCF7936



Procedure

Step 1: Generate key chip

Connect K518 host with vehicle via OBD socket

Select Special Function->Generate key chip->46 chip->Mitsubishi

lonsdor-k518-mitsubishi-asx-2

lonsdor-k518-mitsubishi-asx-3

Insert key/chip into Lonsdor K518 card slot

lonsdor-k518-mitsubishi-asx-4

Generating in progress

lonsdor-k518-mitsubishi-asx-5

Generate key chip success



Step 2: Program chip key

Turn on ignition

Select Immobilizer->Mitsubishi->Select from vehicle->Europe->ASX->Without Smart-> Program smart key

lonsdor-k518-mitsubishi-asx-6

lonsdor-k518-mitsubishi-asx-7

lonsdor-k518-mitsubishi-asx-8

Lonsdor K518ISE will ask pin code to access

lonsdor-k518-mitsubishi-asx-9

1. For Lancer, Lancer-ex, try PIN:8A02, 8A12,8A32,8A42,8A62
2. For Outlander/Ralliart, try PIN:8A12, 8A32, 8A42
3. For ASX, try PIN: 8A62

Here we enter 4-digit pin code 8A62 and confirm

Programming…

lonsdor-k518-mitsubishi-asx-10

Program completed. Press OK to program next key

lonsdor-k518-mitsubishi-asx-11

Insert next key within 10 seconds and turn on ignition

lonsdor-k518-mitsubishi-asx-12

Both programmed key can start engine.



Step 3: Program remote control

Select Immobilizer->Mitsubishi->Select from type->Remote->Type 1->Program remote

lonsdor-k518-mitsubishi-asx-13

lonsdor-k518-mitsubishi-asx-14

This function will delete all programmed remotes

lonsdor-k518-mitsubishi-asx-15

Lonsdor K518 will ask to enter pin code again

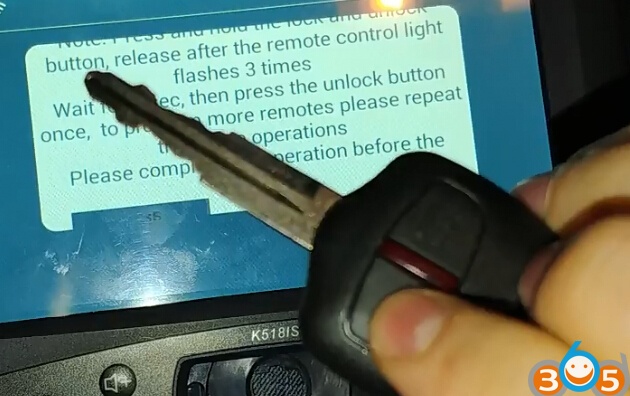

Press LOCK and UNLOCK button, release after the remote control light flashes 3 times.
Wait for 1 sec, then press the unlock button once, to program more remotes please repeat the above procedure.

lonsdor-k518-mitsubishi-asx-16

Program remote control completed.

lonsdor-k518-mitsubishi-asx-17

Test the remotes, both working.
