Lonsdor K518ISE Program Toyota Prius 2011 All Keys Lost

How-to: program Toyota Prius 2011 Smart Key (98 type) by Lonsdor K518ISE and LKE emulator when all keys lost.

lonsdor-k518-2011-toyota-prius-1

Japanese model

lonsdor-k518-2011-toyota-prius-2

All keys have lost, cannot start vehicle



Tools required:

Lonsdor K518ISE key programmer

Smart key emulator (LKE emulator all in one or SKE emulator 98 type)

New original key

Note* Lonsdor can program Prius smart key and mechanical key (but can not program mechanical key with 8A chip)



Procedure:

Connect K518 with vehicle via OBD socket and turn on device

Select Immobilizer->Toyota->Select from type->All smart key lost->All keys lost->Backup EEPROM

lonsdor-k518-2011-toyota-prius-3

lonsdor-k518-2011-toyota-prius-5

lonsdor-k518-2011-toyota-prius-7

This function can back up car EEPROM data
When backup complete, go to Make Emulator Key to make an emergency emulator key
Use the key to touch the start button to ignite dashboard and add key

lonsdor-k518-2011-toyota-prius-8
Obtaining car data, about 3 minutes

lonsdor-k518-2011-toyota-prius-9

Save eeprom file

lonsdor k518 2011 toyota prius 10

Backup EEPROM success

Go to make emulator key to make a spare original key

Before using LKE emulator you need to bind LKE with Lonsdor K518 key programmer

Check guide here

If using SKE emulator, it required to bind with device as well

Select Generate LKE function

lonsdor-k518-2011-toyota-prius-11

lonsdor-k518-2011-toyota-prius-12

This function can generate an alternate master key when all the key are lost. This key can replace the original working key to turn on the dashboard to add key.

Place key emulator into k518 card slot
lonsdor-k518-2011-toyota-prius-14

Select eeprom file

lonsdor-k518-2011-toyota-prius-15

Identify key number and type: 98

lonsdor-k518-2011-toyota-prius-16

Put the LKE key emulator into k518 card slot

lonsdor-k518-2011-toyota-prius-13
Generating key in progress,  wait for about 5 minutes

lonsdor-k518-2011-toyota-prius-17

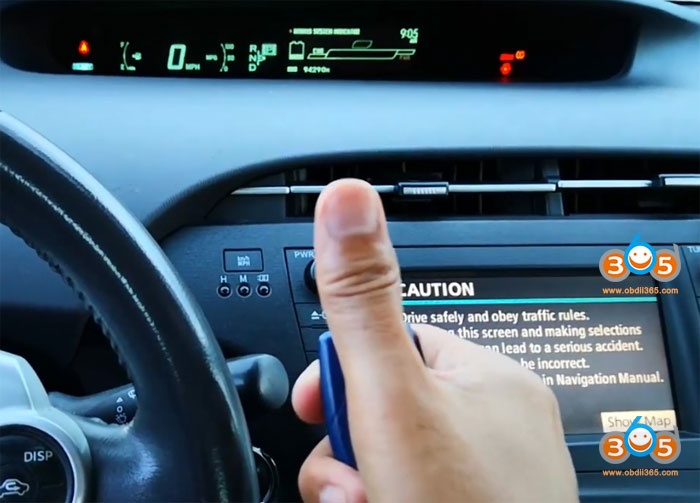

Key is generated, put the spare key close to the ignition, turn on the dashboard, and select Add key function to program new key

lonsdor-k518-2011-toyota-prius-18

lonsdor-k518-2011-toyota-prius-19

Done.
