Lonsdor K518ISE Program Toyota RAV4 2008 All Keys Lost via OBD

Lonsdor K518ISE key programmer another passed model: Toyota RAV4 2008 Smart key programming success- no working key, SKE-LT-DST40(94/D4) -94/D4 smart key emulator is required.



lonsdor-k518ise-emulator

Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key

lonsdor-k518-toyota-rav4-akl-1

Procedure:

Connect Lonsdor K518 with vehicle via OBD socket

Select Immobilizer->Toyota->Select from Type->All smart key lost->All key lost->Backup EEPROM

lonsdor-k518-toyota-rav4-akl-2

lonsdor-k518-toyota-rav4-akl-3

lonsdor-k518-toyota-rav4-akl-4

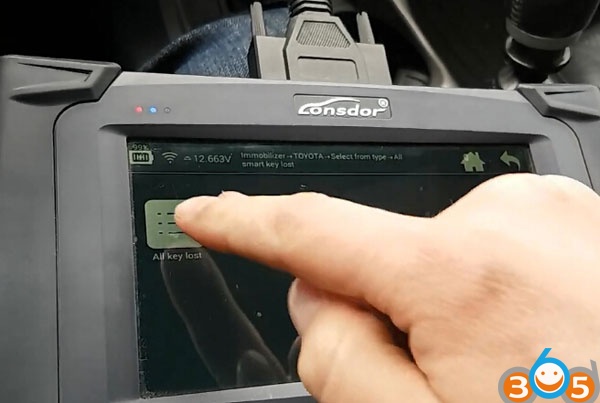

lonsdor-k518-toyota-rav4-akl-5

lonsdor-k518-toyota-rav4-akl-6

This function can back up car eeprom data
When backup complete, go to Make emulator key in network environment to make a spare original
Use the spare original key to add key

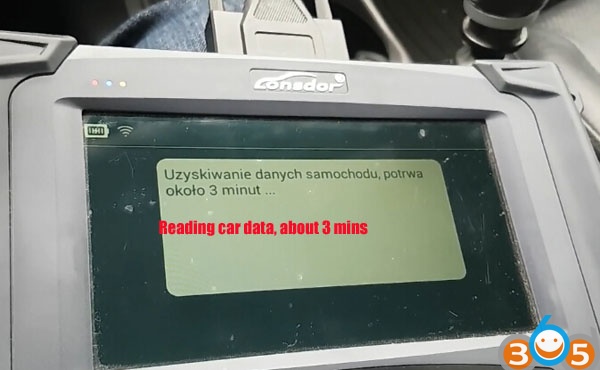

lonsdor-k518-toyota-rav4-akl-7
Reading car data, wait for 3 minutes or so

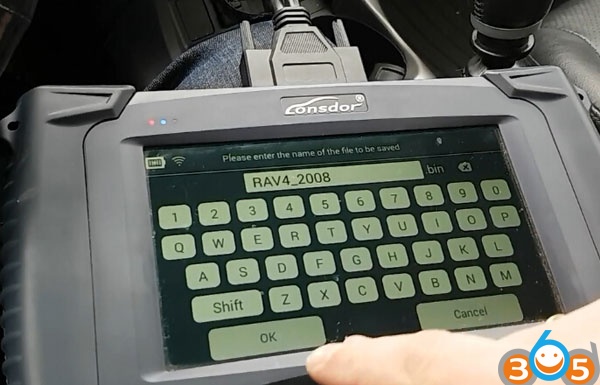

lonsdor-k518-toyota-rav4-akl-8
Save eeprom data

Backup eeprom data completed.

lonsdor-k518-toyota-rav4-akl-9

Go to Make emulator key function.
lonsdor-k518-toyota-rav4-akl-10
This function can make a spare master key when all keys lost. The key can replace the original master key to turn on the dashboard and add key.

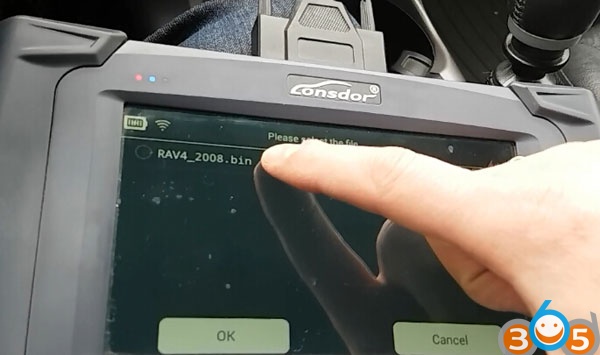

lonsdor-k518-toyota-rav4-akl-11
Select eeprom data saved above

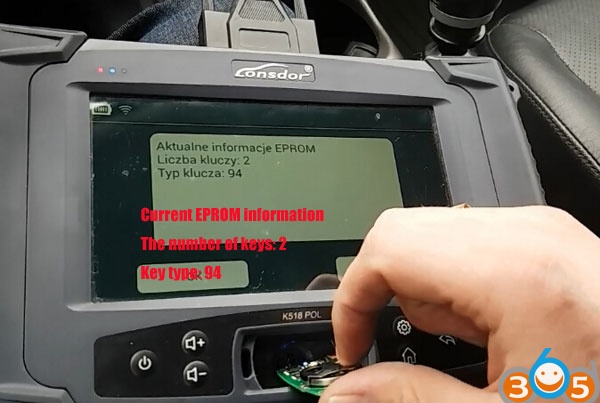

lonsdor-k518-toyota-rav4-akl-12
Lonsdor K518ise detects current eeprom information
The number of keys: 2
Key type: 94

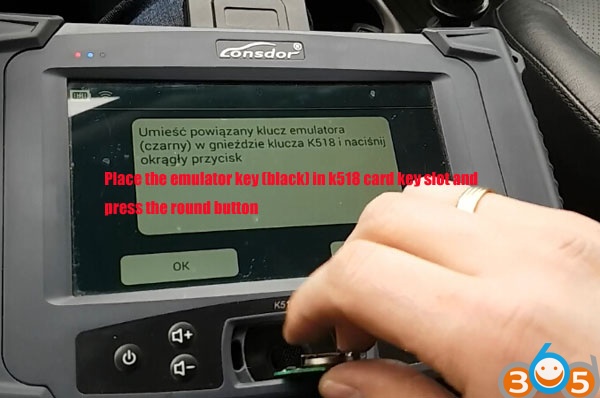

lonsdor-k518-toyota-rav4-akl-13
Place the emulator key (black) into K518 card slot, press the round button

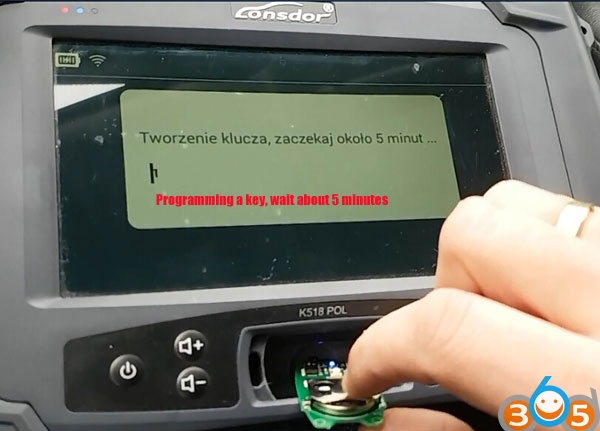

lonsdor-k518-toyota-rav4-akl-14
Programming key, please wait about 5 minutes

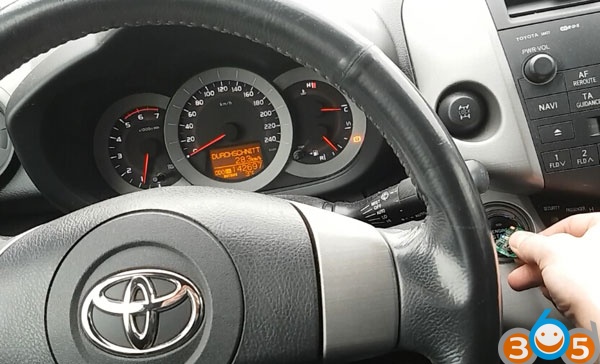

lonsdor-k518-toyota-rav4-akl-15

Key generation completed.

Check the emulator key round button, and close it to the ignition. Try to turn on the dashboard, if the dash can be turned on normally, use the emulator key instead of the original key to add/program new key.



Related post:

Here’s an example on using the K518ISE English machine to make Lexus ES200 all keys lost

Lonsdor K518ISE and Emulator Key Program Lexus ES200 Smart Key All Keys Lost by OBD
