Lonsdor K518ISE Program Volvo S60 2013- 2016 Keyless Smart Key

Here’s the operation guide of Volvo S60 2013-2016 5-button half-keyless smart key programming with Lonsdor k518ISE key programmer.

volvo-s60

Remove CEM module from Volvo S60

Connect K518 host with vehicle via OBD diagnostic socket

Select Immobilizer->Volvo->S60->Smart key (half keyless)

lonsdor-k518-volvo-s60-2

lonsdor-k518-volvo-s60-3

lonsdor-k518-volvo-s60-4

lonsdor-k518-volvo-s60-5

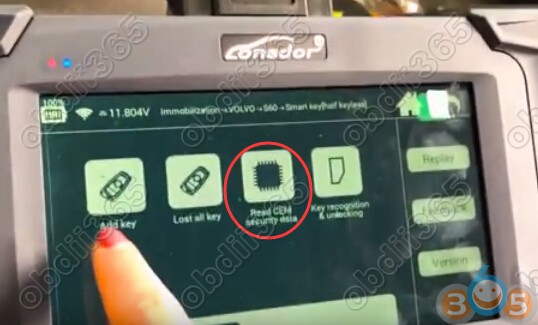

Select Read CEM security data

lonsdor-k518-volvo-s60-6

Plug the external 12V power supply and connect the KPROG-2 adapter to Lonsdor K518ISE host

lonsdor-k518-volvo-s60-1

connection between KPROG adapter and main host is built

lonsdor-k518-volvo-s60-7

Reading security data and save bin file

lonsdor-k518-volvo-s60-8

Select Add key function

lonsdor-k518-volvo-s60-9

This function require to load the security data

lonsdor-k518-volvo-s60-10

Load CEM data just read

lonsdor-k518-volvo-s60-11

Press Start button

Communicating…

Lonsdor k518 read vehicle information, part number, VIN, key numbers

lonsdor-k518-volvo-s60-12

lonsdor-k518-volvo-s60-13

lonsdor-k518-volvo-s60-14

Insert new key to be programmed into the card slot

lonsdor-k518-volvo-s60-15

lonsdor-k518-volvo-s60-16

Identified keys programmed: 4

lonsdor-k518-volvo-s60-17

Program completed

lonsdor-k518-volvo-s60-18

Test the remote

lonsdor-k518-volvo-s60-20

lonsdor-k518-volvo-s60-19

Working!!!
