Lonsdor K518ISE Program VW Passat B7 Immo4 Magotan Key

New test report from Mr. Tibor Takács:

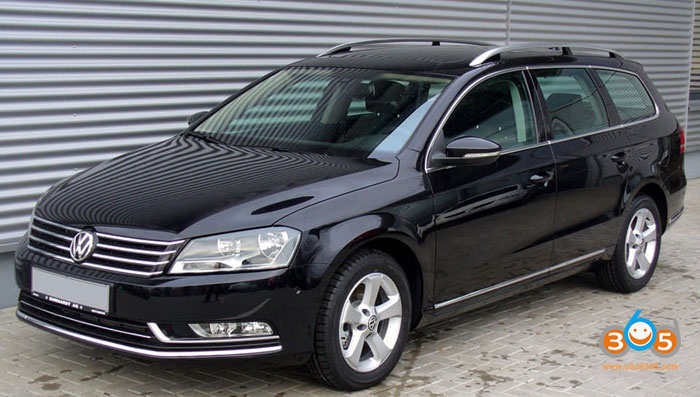

VW Passat B7 Immo4 Magotan with id48 chip
Make dealer key lonsdor k518ise+carprog OK
Learn key OK
Remote Learning with VCDS

lonsdor-VW-Passat-B7-Immo4-Magotan-1

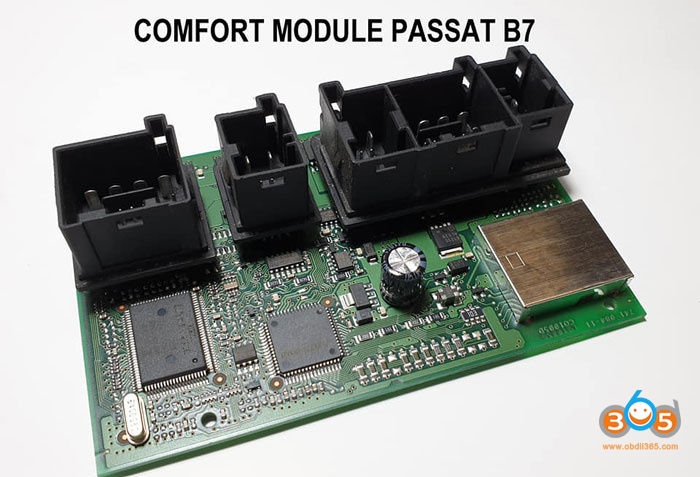

EEPROM: Comfort Module EEPROM 95320

lonsdor-VW-Passat-B7-Immo4-Magotan-2



Check detail procedure and photo operation

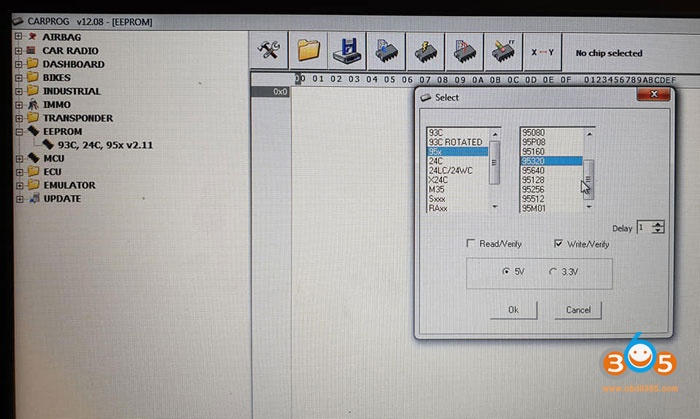

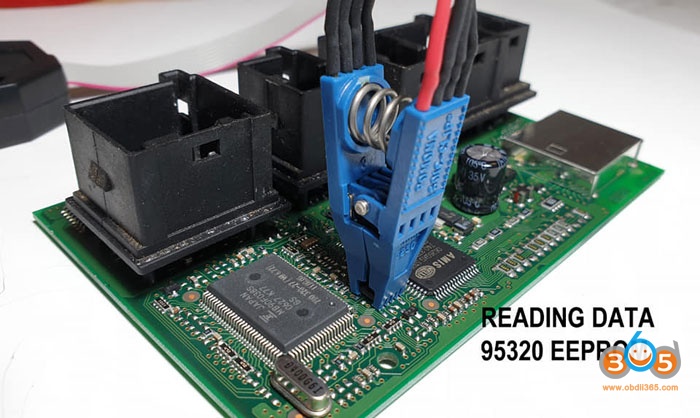

Read eeprom 95320 data with carprog or other programmer

lonsdor-VW-Passat-B7-Immo4-Magotan-3

lonsdor-VW-Passat-B7-Immo4-Magotan-4

lonsdor-VW-Passat-B7-Immo4-Magotan-5

Save eeprom data

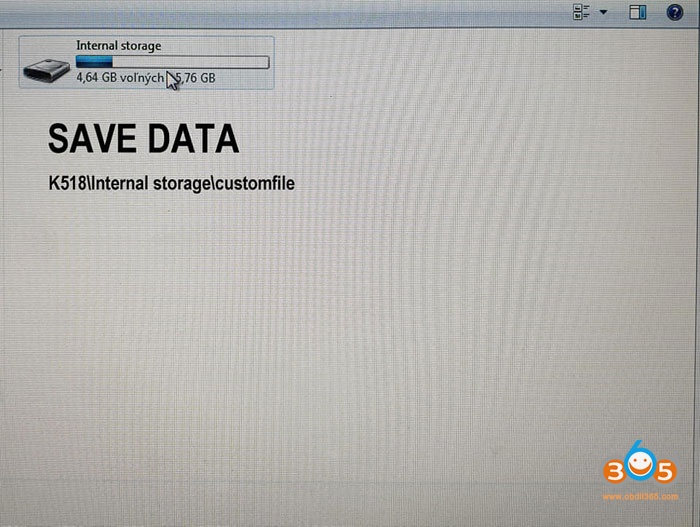

Copy and paste eeprom file to k518 customfile

lonsdor-VW-Passat-B7-Immo4-Magotan-6

Then make dealer key with Lonsdor k518

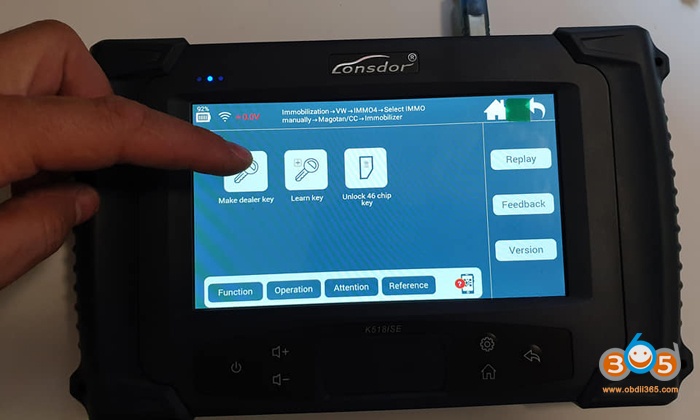

Go to Immobilizer-VW-IMMO4-Select IMMO manually-Magotan/CC-Immobilizer-Make Dealer Key

lonsdor-VW-Passat-B7-Immo4-Magotan-7

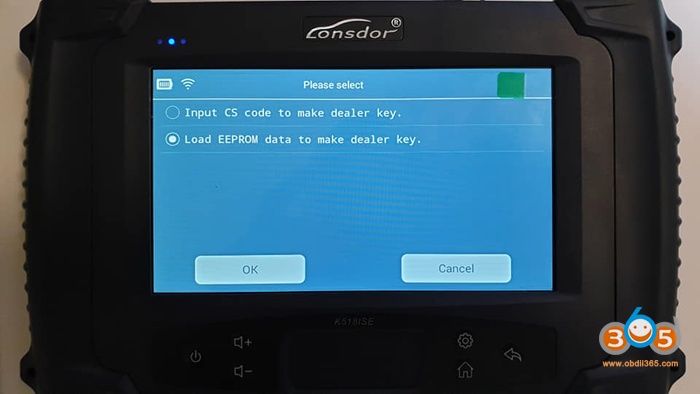

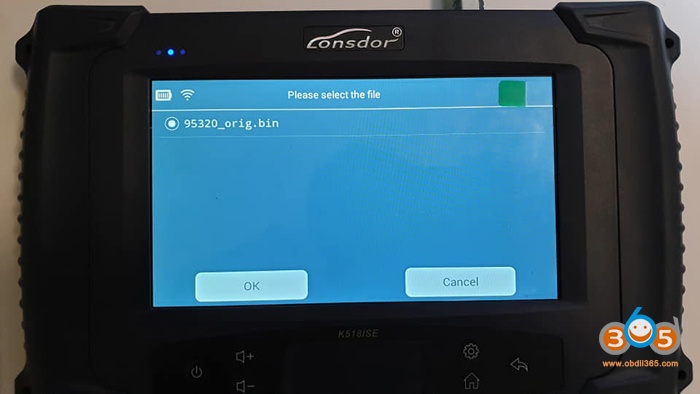

Load eeprom data to make dealer key

lonsdor-VW-Passat-B7-Immo4-Magotan-8

lonsdor-VW-Passat-B7-Immo4-Magotan-9

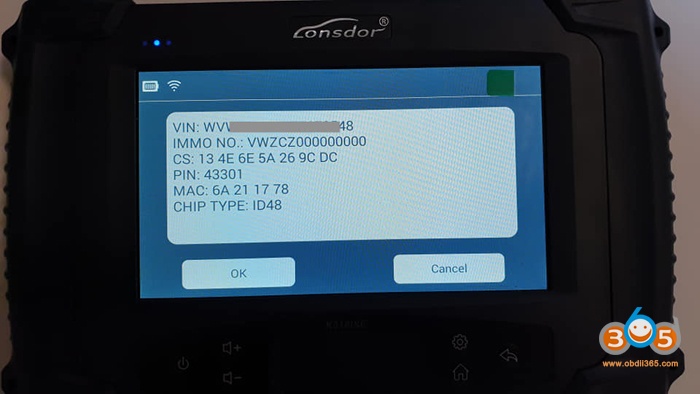

Lonsdor will read vehicle information, VIN, CS, PIN and chip type

lonsdor-VW-Passat-B7-Immo4-Magotan-10

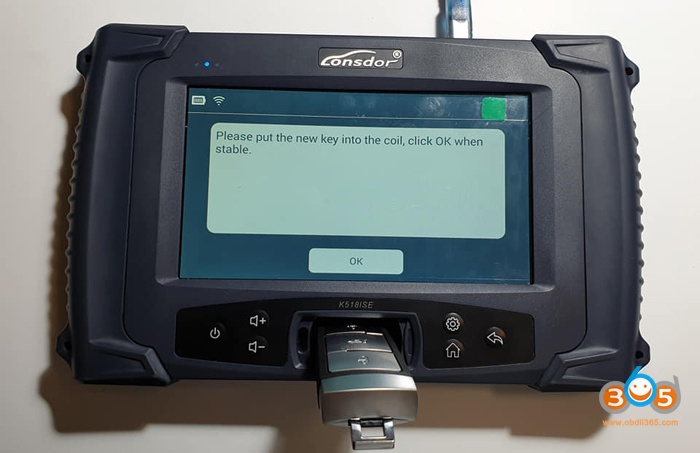

Put the new key into coil

lonsdor-VW-Passat-B7-Immo4-Magotan-11

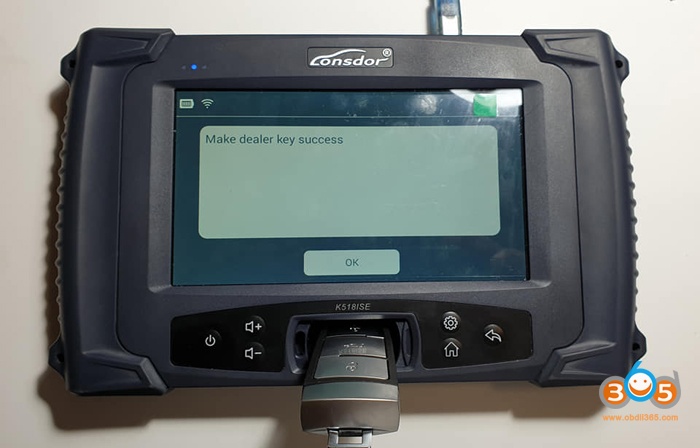

Make dealer key success

lonsdor-VW-Passat-B7-Immo4-Magotan-12

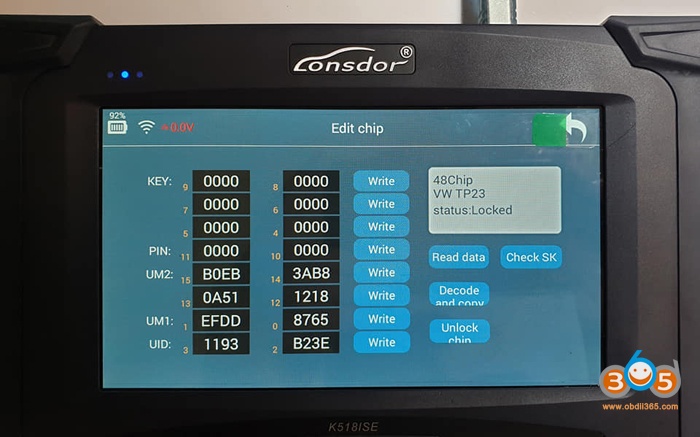

Check ke status

lonsdor-VW-Passat-B7-Immo4-Magotan-13

Then program remote with vcds. Or you can try remote programming with K518ISE (he didn’t test it)

lonsdor-VW-Passat-B7-Immo4-Magotan-14

Done.
