Lonsdor K518ISE Program VW Tiguan 2013 ID48 Remote Key

The task is to make a duplicate key for a 2013 4th generation Immobilizer Volkswagen Tiguan with key chip ID48. The chip key and remote programming is performed by the Lonsdor K518ISE key programmer.

lonsdor-k518ise-VW-Tiguan-2013-1

Procedure:

Step 1: Backup eeprom

Connect K518 host with vehicle via OBD socket

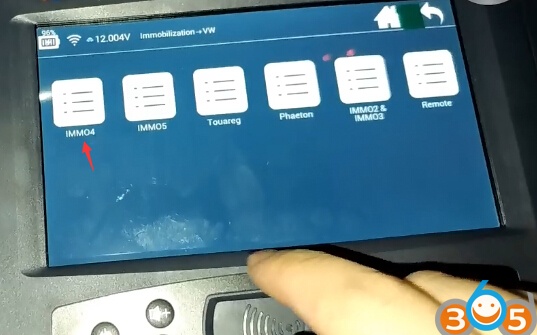

Select Immobilizer->VW->IMMO4->2013 NEC 24C64->Immobilizer->Backup EEPROM

lonsdor-k518ise-VW-Tiguan-2013-2

lonsdor-k518ise-VW-Tiguan-2013-3

lonsdor-k518ise-VW-Tiguan-2013-4

Enter the eeprom name to be saved

Turn on ignition switch

lonsdor-k518ise-VW-Tiguan-2013-8

During the procedure, the dashboard will turn black several times, this is normal.

lonsdor-k518ise-VW-Tiguan-2013-5

Reading data

lonsdor-k518ise-VW-Tiguan-2013-6

Backup success



Step 2: Read IMMO data

Select Read IMMO data

If it is the smart key, turn off ignition then turn it on

If it is remote key: turn on ignition and start vehicle

Here’s the remote key

lonsdor-k518ise-VW-Tiguan-2013-7

Communicating

lonsdor-k518ise-VW-Tiguan-2013-9

Lonsdor K518 read vehicle VIN, CS, password, key number etc information





Step 3: Make dealer key

lonsdor-k518ise-VW-Tiguan-2013-10

Select Make Dealer Key

Turn on ignition and start engine

lonsdor-k518ise-VW-Tiguan-2013-11

Dashboard turns black, it is normal.

Reading key data

lonsdor-k518ise-VW-Tiguan-2013-12

Insert the key to be programmed into K518 key slot

lonsdor-k518ise-VW-Tiguan-2013-13

Select Make ordinary dealer key

lonsdor-k518ise-VW-Tiguan-2013-14

Select key type VW (TP23)

Read key ID

lonsdor-k518ise-VW-Tiguan-2013-15

Generate the dealer key and lock key success





Step 4: Learn Key

lonsdor-k518ise-VW-Tiguan-2013-16

Select Learn key

Make sure the EEPROM has been backuped before the opearation is performed.
Press YES to continue

lonsdor-k518ise-VW-Tiguan-2013-17

Take all keys into the car.
All original keys that are not involved in learning will be deleted.

Turn on ignition and start engine

Communicating

Dashboard turns black

reading data

lonsdor-k518ise-VW-Tiguan-2013-18

Enter number of keys to be programmed: 2

lonsdor-k518ise-VW-Tiguan-2013-19

Select Key Type

If it is smart key, press OK

It it is remote key, press Cancel. Here we click Cancel to continue

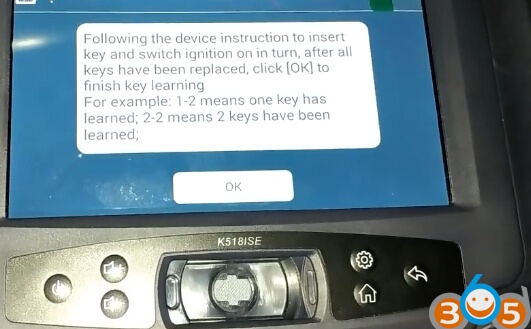

Insert key and turn on ignition switch, after all keys have been replaced, click OK to finish key learning.

lonsdor-k518ise-VW-Tiguan-2013-20

lonsdor-k518ise-VW-Tiguan-2013-21

lonsdor-k518ise-VW-Tiguan-2013-22

Switch ignition off then turn it on

Program complete.

Both keys can start vehicle



Step 5: Program remote

Go back to VW menu, Select VW->Remote->Program Remote->Delete Remote

lonsdor-k518ise-VW-Tiguan-2013-23

lonsdor-k518ise-VW-Tiguan-2013-24

Delete remote success

lonsdor-k518ise-VW-Tiguan-2013-25

Select Add remote

Press Unlock button for 2 sec within 15 sec

lonsdor-k518ise-VW-Tiguan-2013-26

Add remote success.

lonsdor-k518ise-VW-Tiguan-2013-27

Lonsdor K518ISE program 2103 Volkswagen Tiguan ID48 remote key success.
