Program Nissan X-trail 2017 Smart Key with Lonsdor K518ISE

The tutorial is to program a new smart key on the car 2017-2019 Nissan X-trail.  Key programming and pin code calculation is performed by the Lonsdor K518ISE key programmer.



Key information:

ID47 Hitag 3 (AES) chip

3-button smart keys

nissan-xtrail-lonsdor-k518-1

Procedure:

Connect K518 with vehicle

Turn on ignition switch

Select Immobilizer->Nissan->Select from vehicle->X-tail->T32-> Proximity smart->Program smart key

nissan-xtrail-lonsdor-k518-2

nissan-xtrail-lonsdor-k518-3

nissan-xtrail-lonsdor-k518-4

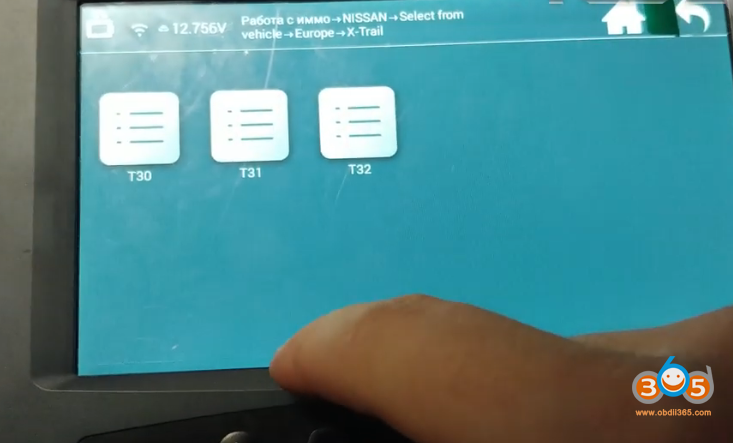

nissan-xtrail-lonsdor-k518-5

nissan-xtrail-lonsdor-k518-6

nissan-xtrail-lonsdor-k518-7

Turn on emergency light/turn ignition off

nissan-xtrail-lonsdor-k518-8

All keys will be deleted

Security checking

nissan-xtrail-lonsdor-k518-9

Press and release car start button, put the log end of the 1st smart key close to the button until the dash turns on and the security indicator flashes 5 times.

nissan-xtrail-lonsdor-k518-10

Press Start button once and turn off ignition

nissan-xtrail-lonsdor-k518-11

Program 1st key completed.

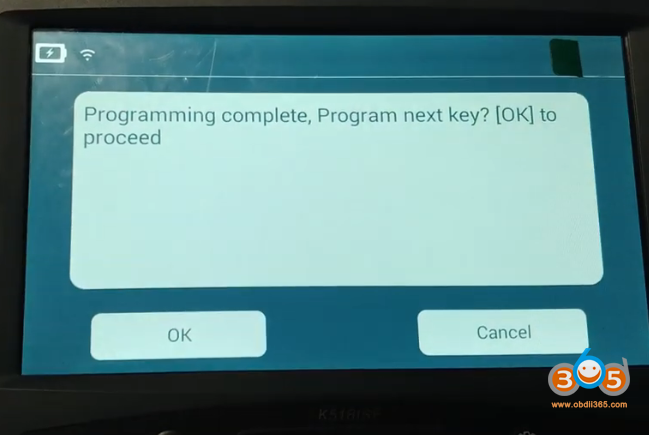

nissan-xtrail-lonsdor-k518-12

Follow steps above to program next key until complete

Press car Start button,put the log end of the 1st smart key close to the button until the dash makes sound

nissan-xtrail-lonsdor-k518-14

nissan-xtrail-lonsdor-k518-15

Press Start button once and turn off ignition

nissan-xtrail-lonsdor-k518-16

Press Start/Stop button once to check if engine can be started

Then test remote control.

nissan-xtrail-lonsdor-k518-17

Lonsdor k518 successfully added a new smart key to X-trail 2017.
