SKP1000 Program 2015 Renault Koleos Smart card

Guide to program Renault Koleos 2015 year smart card to enable one-button Start Stop feature by using SKP1000 key programmer via OBD.

program-Renault-Koleos-smart-card-1

(Note: The tutorial was provide by a Chinese engineer on a locksmith forum using SKP1000 Chinese version Lonsdor CI600 Plus key programmer)

There is no single device that will read Renault pin code by OBD, can only read data by removing the BCM and then to calculate the security pin code.



Step 1: Remove BCM

program-Renault-Koleos-smart-card-2

program-Renault-Koleos-smart-card-3

program-Renault-Koleos-smart-card-4

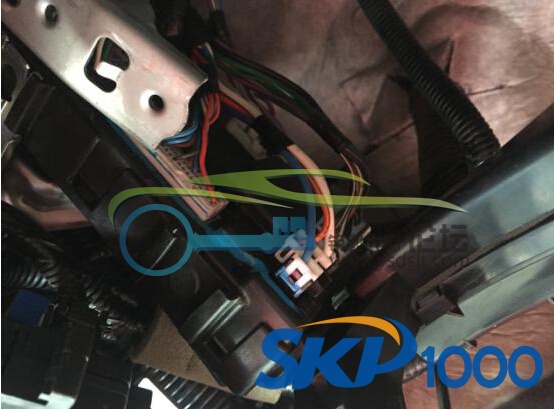

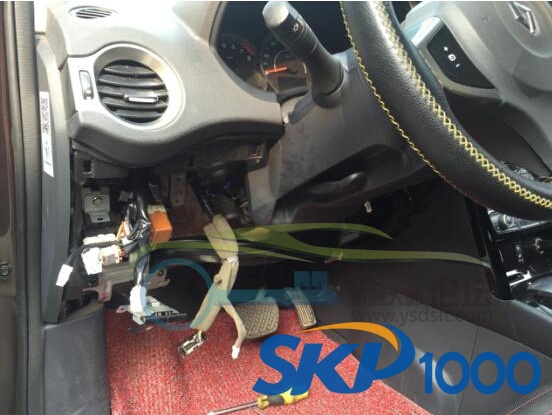

Remove BCM under the dash



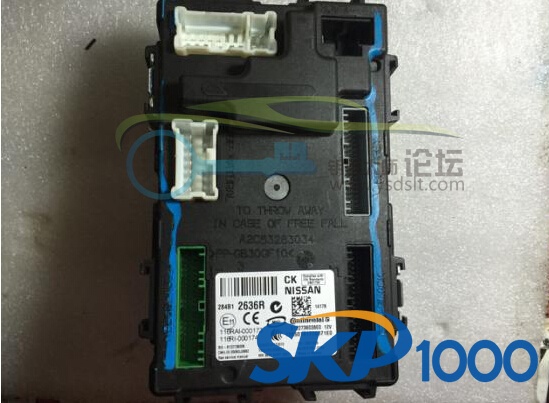

Step 2: Disamble BCM

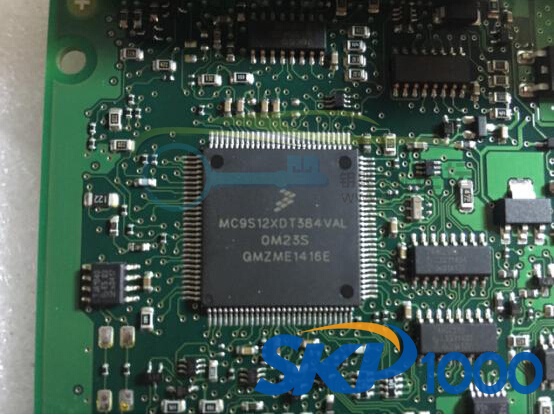

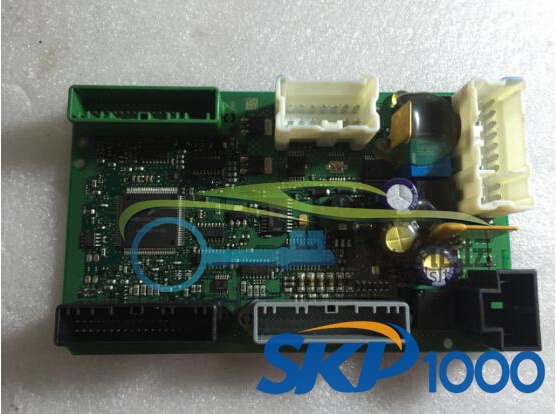

, find out and locate CPU 0M23S

program-Renault-Koleos-smart-card-5

program-Renault-Koleos-smart-card-6

Step 3: Read CPU data
In Xhorse VVDI Prog programmer, select Immobilizer->Renault BCM-XDT384- 1L15Y is the same as 0M23S

program-Renault-Koleos-smart-card-7

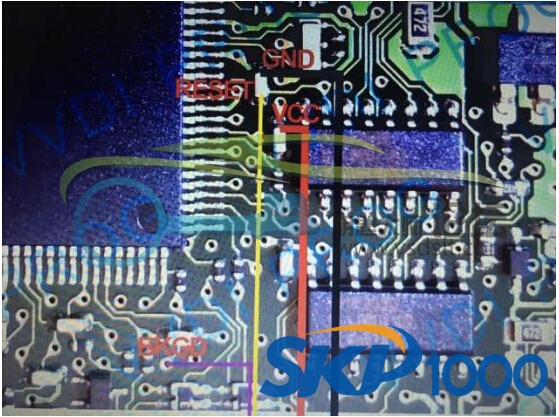

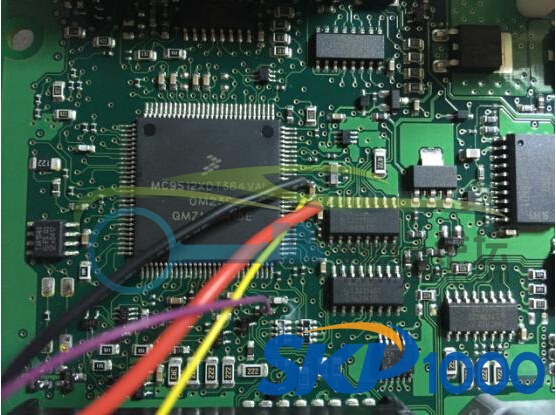

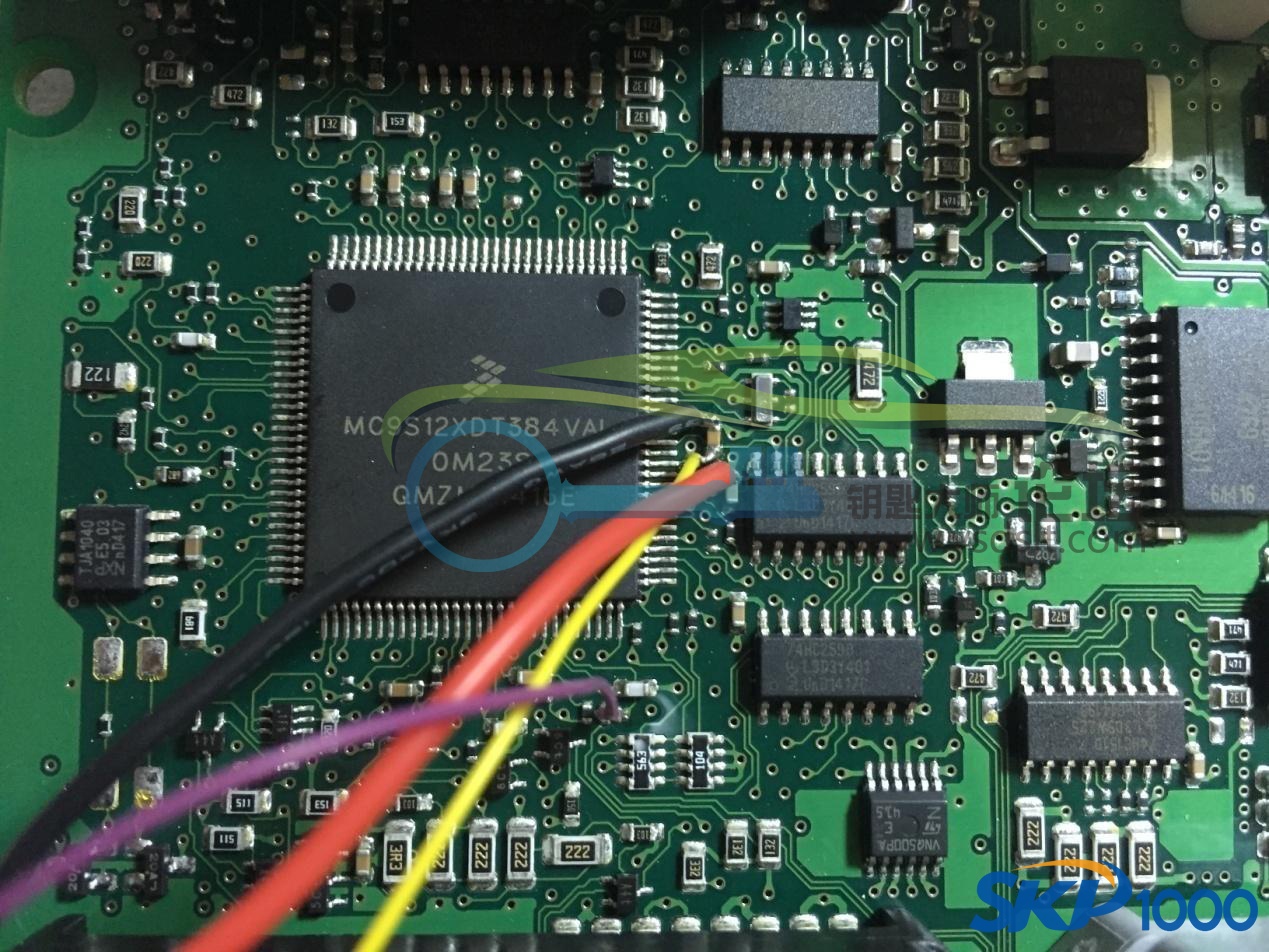

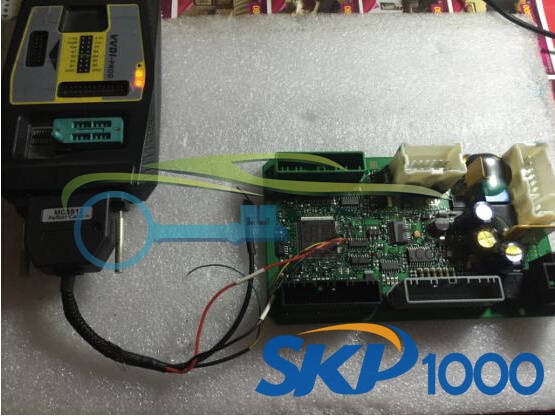

Follow VVDI prog wiring diagram to connect

program Renault Koleos smart card 8

program Renault Koleos smart card 9

program Renault Koleos smart card 10

program Renault Koleos smart card 11

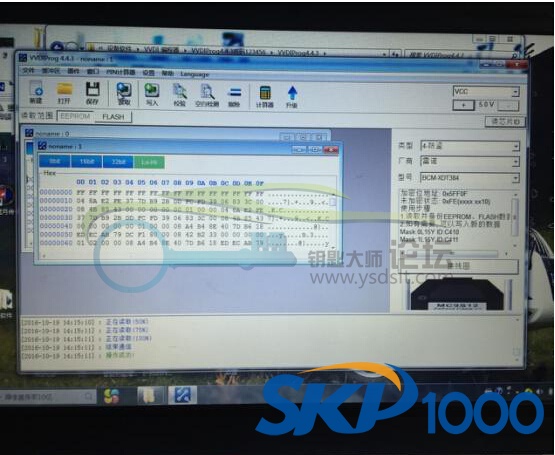

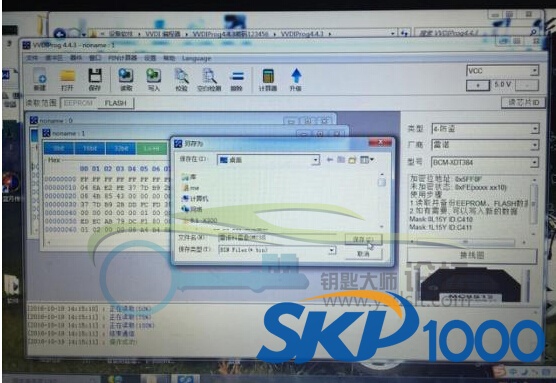

Save data

program Renault Koleos smart card 12

program-Renault-Koleos-smart-card-13

Step 5:  Calculate pin code

Send the BCM data to our engineer or Lonsdor factory engineer to calculate pin code within several minutes.

Here is the pin code for this car: 33EB 2FE6 78CD



Step 6: Smart Card Learning

Do smart card as well original smart card learning by SKP-1000 key programmer

skp1000-Renault-Koleos-smart-card-1

skp1000-Renault-Koleos-smart-card-2

skp1000-Renault-Koleos-smart-card-3

skp1000-Renault-Koleos-smart-card-4

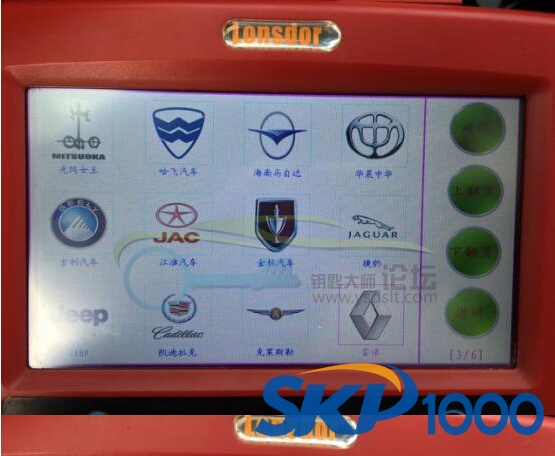

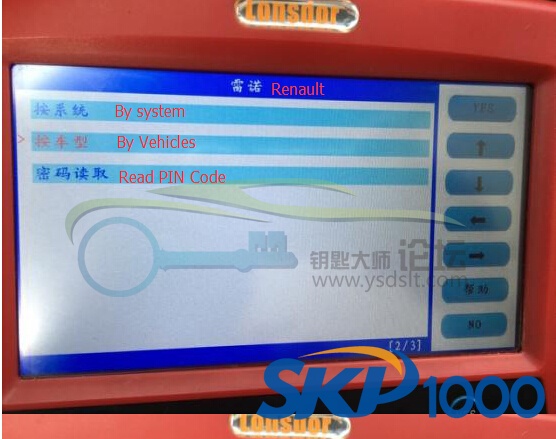

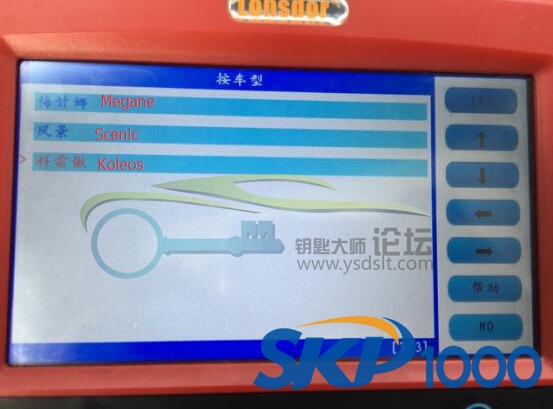

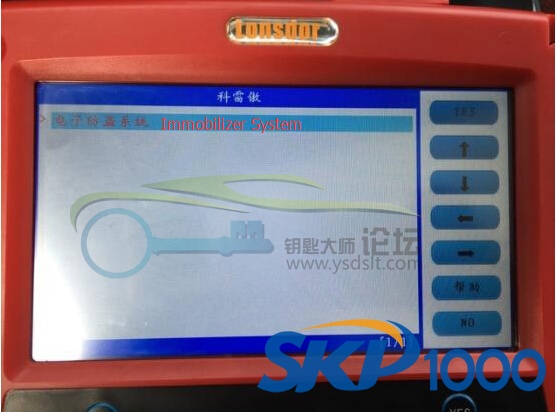

Select Renault->By Vehicle->Koleos->Immobilizer system

skp1000-Renault-Koleos-smart-card-5

skp1000-Renault-Koleos-smart-card-6

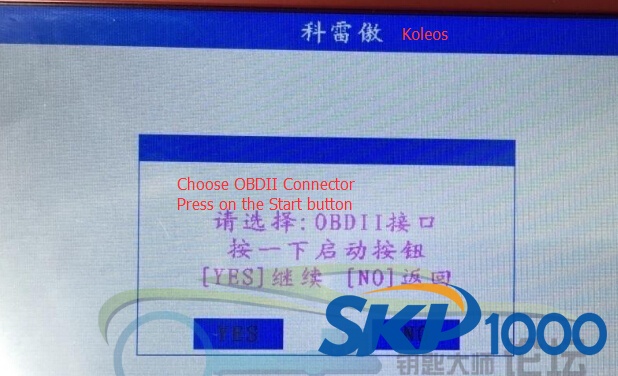

Choose OBDII connector

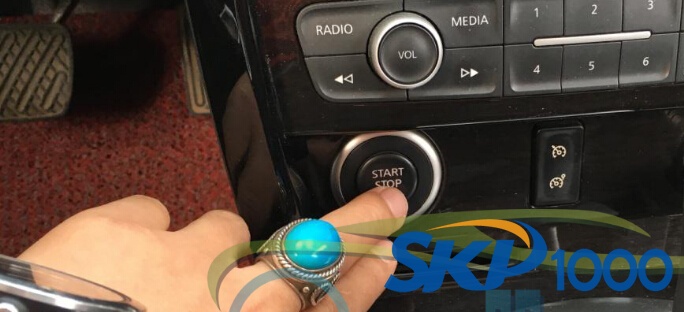

Press on the Start button

Press YES to continue

skp1000-Renault-Koleos-smart-card-7

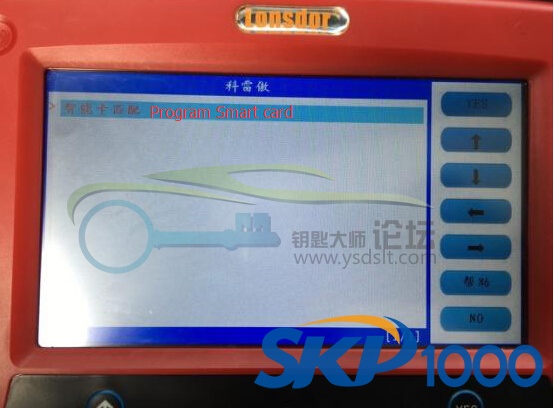

Select Program Smart card

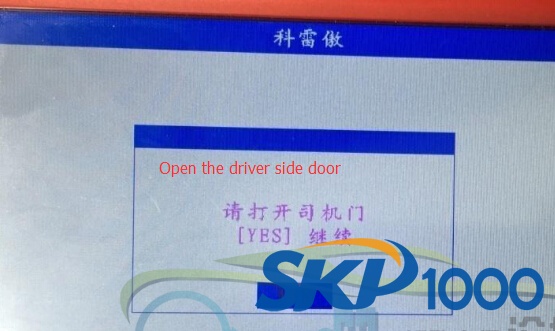

Open the door on the driver side

skp1000-Renault-Koleos-smart-card-8

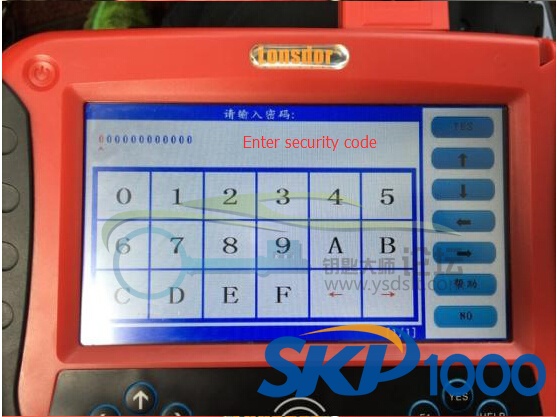

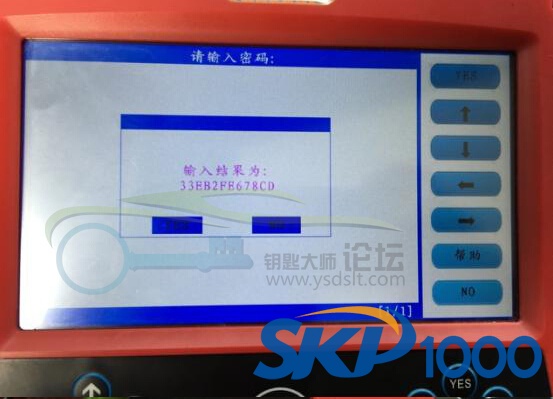

Manually enter security code calculated by engineer, and confirm

skp1000-Renault-Koleos-smart-card-9

skp1000-Renault-Koleos-smart-card-10

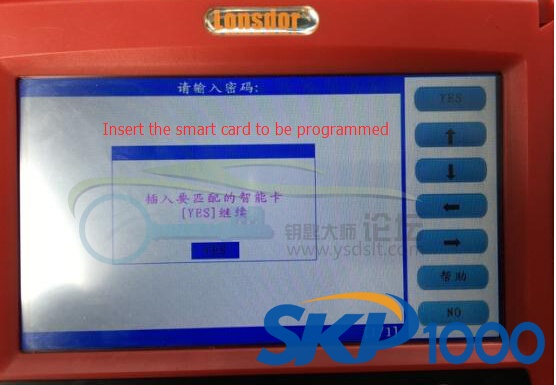

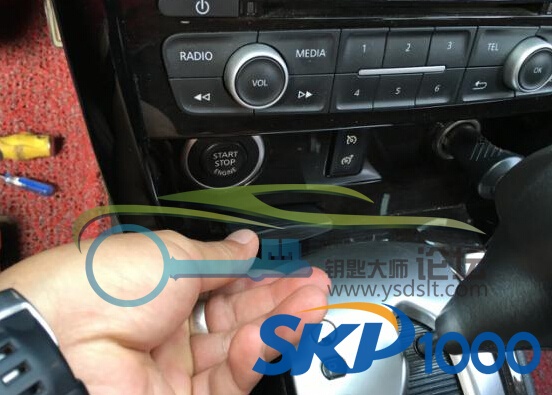

Insert the smart card to be programmed

Press YES to continue

skp1000-Renault-Koleos-smart-card-11

skp1000-Renault-Koleos-smart-card-12

Configuring…

Program success

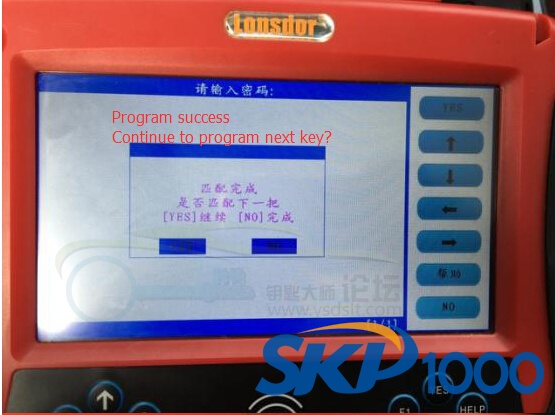

Continue to program next key?

Press YES to continue

skp1000-Renault-Koleos-smart-card-13

Insert the next smart key to be programmed

Follow procedure above

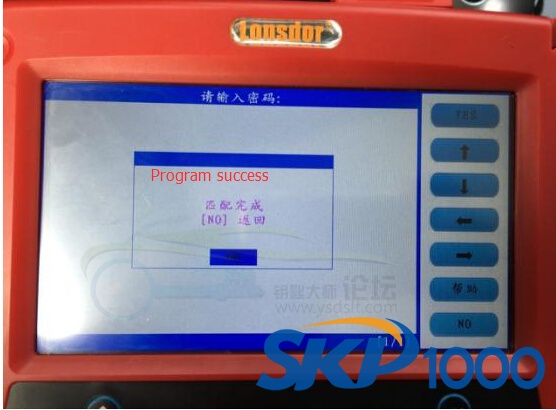

Until Program success.

skp1000-Renault-Koleos-smart-card-14

Done!
