Lonsdor K518 Adds Ford Escape 2013 Smart Key

Lonsdor K518 car key programmer successfully programmed a smart key on a Ford Escape year 2103 by OBD.

lonsdor-k518-ford-escape-1

Key information:

Original key: 3-button smart key

Frequency: 433MHz

Chip type: 83 chip

Card slot: Right under the steering wheel cover

Device to program: Lonsdor K518 key programmer



Easy steps:

Connect K518 host with vehicle via OBD socket

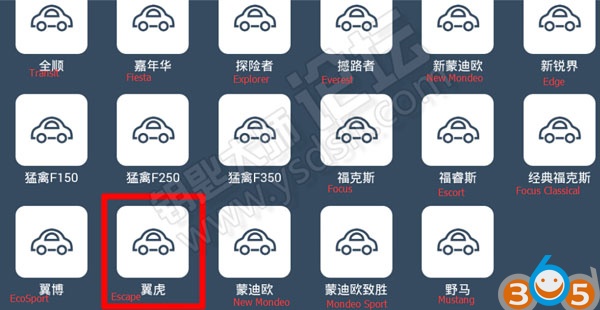

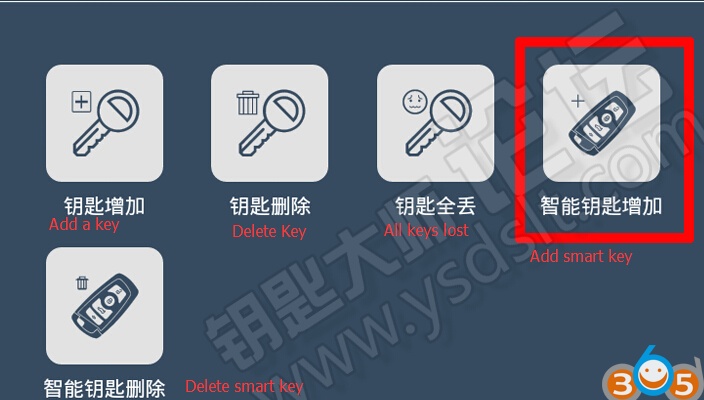

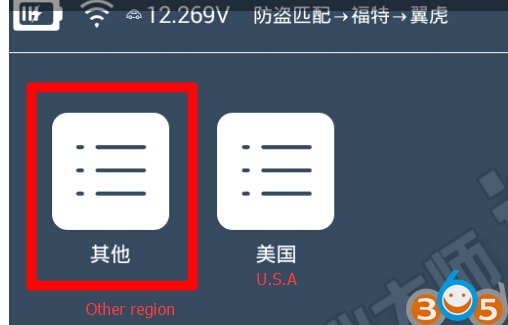

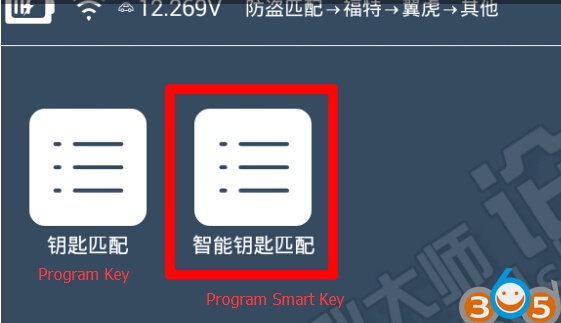

Select Ford->Escape-> Other region-> Program Smart Key->Add smart key

lonsdor-k518-ford-escape-3

lonsdor-k518-ford-escape-4

lonsdor-k518-ford-escape-5

lonsdor-k518-ford-escape-6

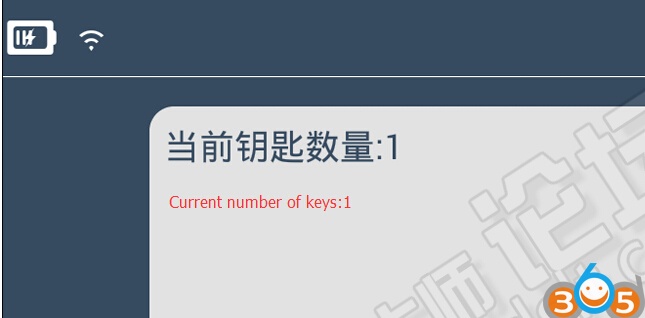

Current key number: 1

lonsdor-k518-ford-escape-7

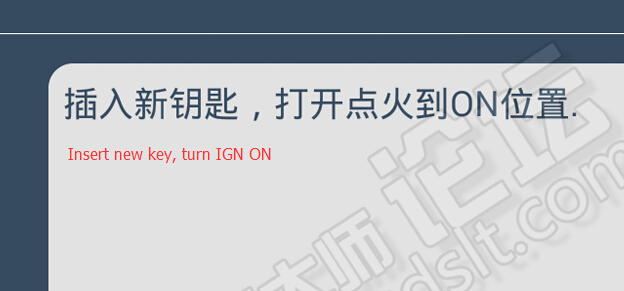

Insert a new key into card slot, turn ignition switch to ON position

lonsdor-k518-ford-escape-8

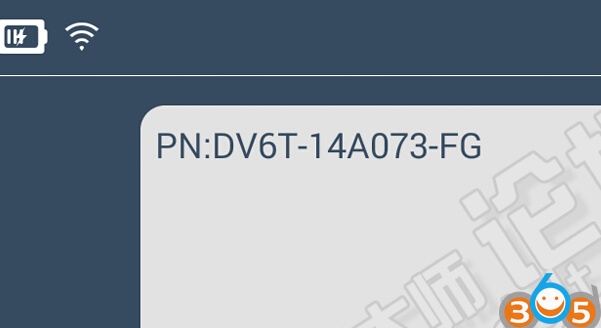

Lonsdor K518ISE shows key information

lonsdor-k518-ford-escape-9

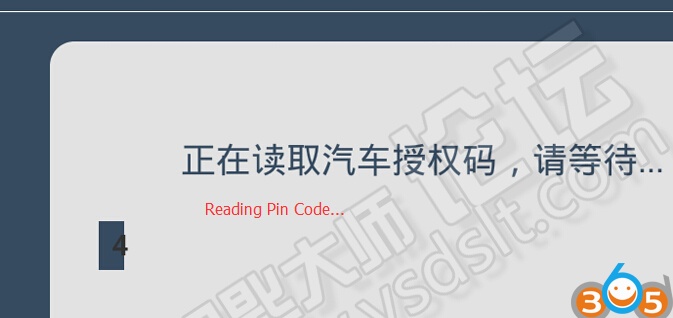

Reading pin code

lonsdor-k518-ford-escape-10

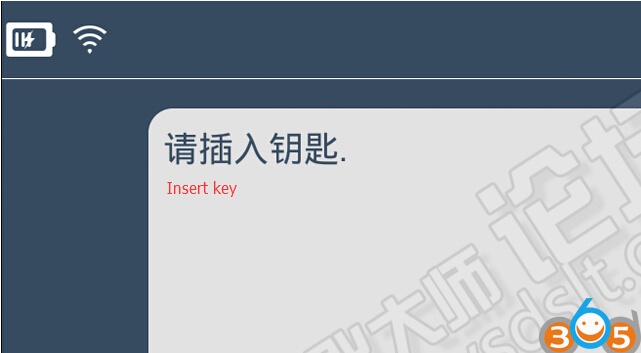

Insert the key into card slot

lonsdor-k518-ford-escape-11

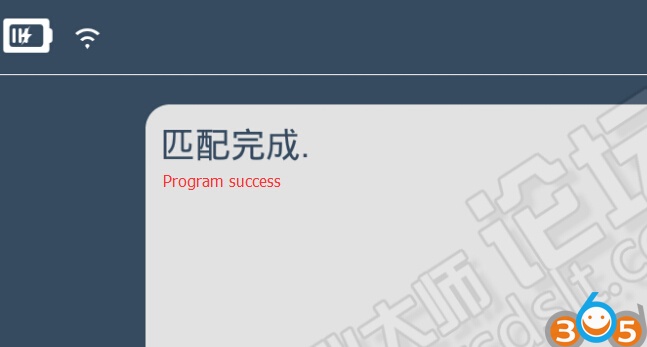

Program success

lonsdor-k518-ford-escape-12

Test the remote to see if it is working.
