Lonsdor K518ISE Program Ford Everest All Keys Lost

Look here: How to program new smart keys to Ford Everest when all keys are lost, using Lonsdor K518ISE key programmer.



Main steps:



Step 1 Require at least 2 keys

Step 2 Ignition OFF and Open and close the door on the driver side

Step 3 Lonsdor k518ISE reads out vehicle info, current key number, PIN codes

Step 4 Put a new smart key into the slot (sensor area) and press the START button

Sensor area:

– Central armrest box

– Cup holder

Step 5 Lonsdor is programming the first new smat key, then put the second one into the slot and press START button

Step 6 Lonsdor continues to program the second. And recognize the programmed key number.

New keys programming completed.



In details…



Ford Everest

ford-Everest-car

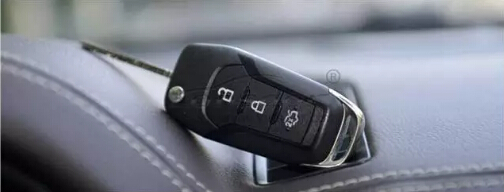

Ford Everest smart key

ford-Everest-smart-folding-key

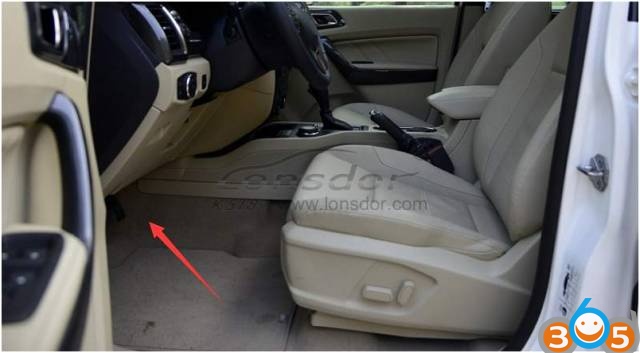

Ford Everest OBD location

ford-Everest-obd-location

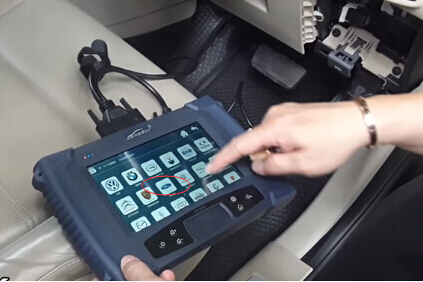

Select Immobilizer->Ford->Everest->Other Region or America

lonsdor-k518ise-ford-1

Go to program new keys when all keys are lost

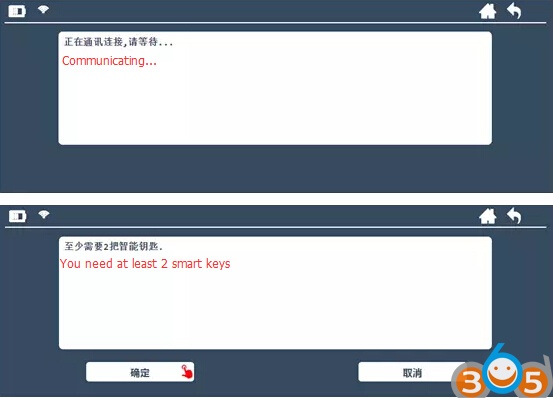

You should have at least 2 smart keys

lonsdor-k518ise-ford-Everest-5

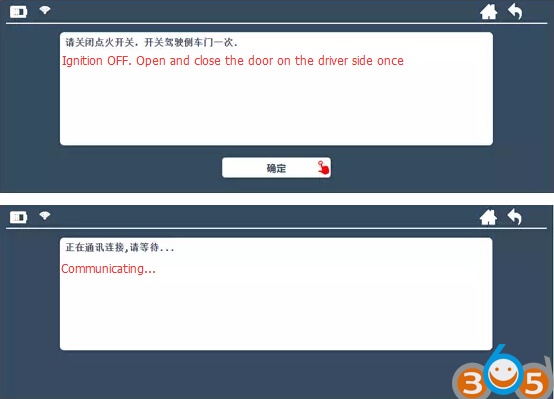

Ignition OFF and Open and close the door on the driver side

lonsdor-k518ise-ford-Everest-6

Lonsdor K518 read Parts number, VIN codes, Current key number

lonsdor-k518ise-ford-Everest-7

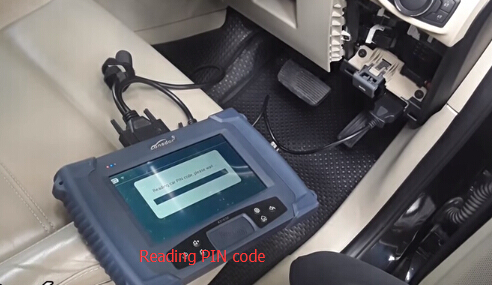

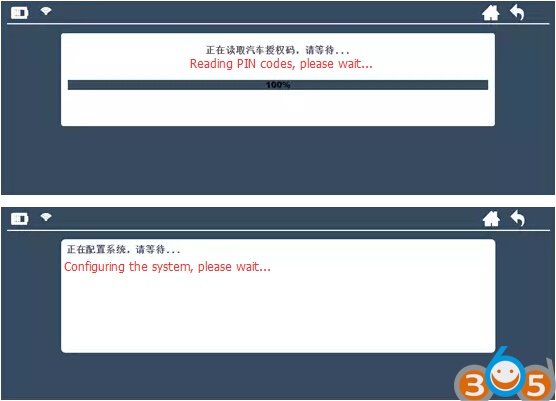

Reading PIN codes

lonsdor-k518ise-ford-2

lonsdor-k518ise-ford-Everest-8

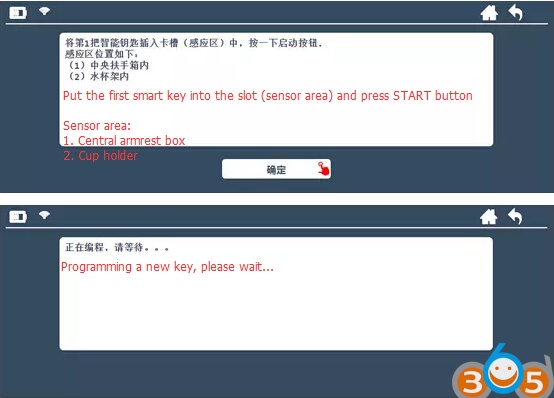

Put a new smart key into the slot (sensor area) and press the START button

Sensor area:

– Central armrest box

– Cup holder

lonsdor-k518ise-ford-Everest-9

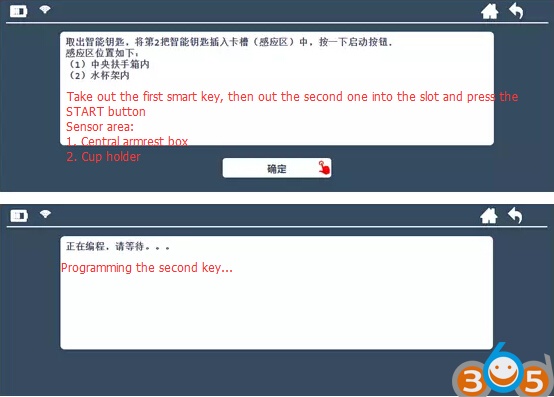

Program new keys one by one

lonsdor-k518ise-ford-Everest-10

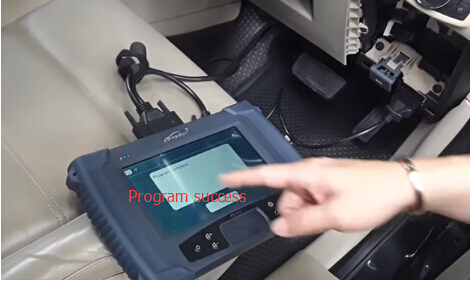

Key programming success

lonsdor-k518ise-ford-3

lonsdor-k518ise-ford-Everest-11

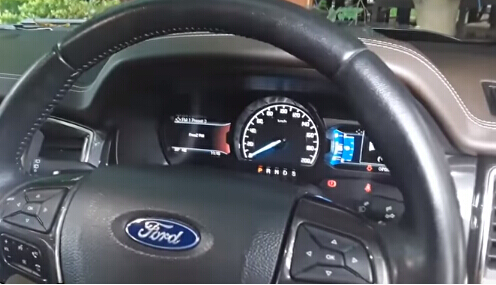

Test the new keys and verify both are working good

lonsdor-k518ise-ford-4

Job’s done!
