Lonsdor K518 Program Chevrolet Cruze Remote Key All Keys Lost by OBD

Guide to read pin code and program remote key on a Chevrolet Cruze when all keys have lost by using Lonsdor K518 key programmer.



Step 1: Read Pin Code

Connect K518 Host with vehicle via OBD diagnostic socket

Select Immobilizer->Chevrolet -> Read Pin Code->Read Pin Code Type 1

lonsdor-k518-cruze-1

lonsdor-k518-cruze-2

lonsdor-k518-cruze-3

Turn on ignition switch

lonsdor-k518-cruze-4

Communicating…

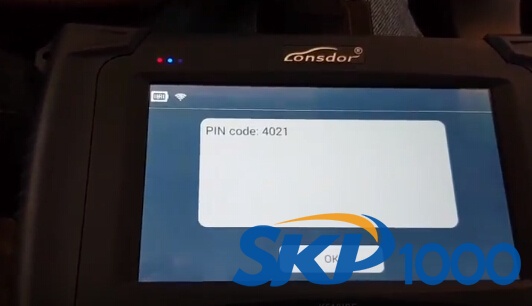

Lonsdor K518ISE read pin code success.

lonsdor-k518-cruze-5

Step 2: Program Remote Key

Go back to Chevrolet menu

Select Cruze-> Immobilizer-> All Keys Lost

lonsdor-k518-cruze-6

lonsdor-k518-cruze-7

lonsdor-k518-cruze-8

Close all doors and turn on ignition

lonsdor-k518-cruze-9

Lonsdor K518 will require enter 4-digit pin code to access and confirm

lonsdor-k518-cruze-10

Configuring system, wait for 10 minutes.

lonsdor-k518-cruze-11

Turn ignition off. Remove key

lonsdor-k518-cruze-12

Switch on and off the driver door, make sure all the electrical appliances are off.

Click OK to continue.

lonsdor-k518-cruze-13

Insert key to be programmed and turn on ignition switch

lonsdor-k518-cruze-14

Program success. Press YES to program next key.

lonsdor-k518-cruze-15

Follow steps above to program next key or more keys.

Turn ignition off. Remove key.

Program complete.

lonsdor-k518-cruze-16

Start car and test the remote.

lonsdor-k518-cruze-17

Working!!!
