Lonsdor K518 Read Hyundai i10 47 Pin Code and Program Smart Key by OBD

Lonsdor K518 key programmer is the first tool to read Hyundai / Kia 46/47/8A smart key PIN code via OBD, all key lost included.   Here’s the instruction on reading Hyundai 47 smart key pin code and program smart key by OBD using K518ISE.

Step 1: Read Pin Code

Connect K518 host with vehicle via OBD diagnostic socket

Turn ignition ON

Select Immobilizer->Hyundai->Read PIN Code

k518-hyundai-i10-1

Select read pin code from 47 Smart Card

k518-hyundai-i10-2

Turn ignition off.

Open and close door on the driver side once

k518-hyundai-i10-3

Comminciating…

Lonsdor K518ISE will display vehicle part number and software version

k518-hyundai-i10-4

k518-hyundai-i10-5

Read 6-digit pin code success.

k518-hyundai-i10-6

Step 2: Program Smart Key

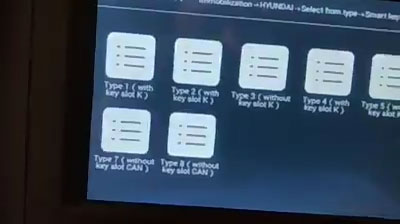

Choose Select from type-> Smart key-> Type 7 (without card slot CAN)-> Program Smart Key

k518-hyundai-i10-7

k518-hyundai-i10-9

k518-hyundai-i10-10

All smart keys need to program, otherwise will not able to start vehicle

k518-hyundai-i10-11

Press OK to continue

k518-hyundai-i10-12

Turn ignition off. Open and close driver door once

Lonsdor K518 requires to enter 6-digit pin code to access

k518-hyundai-i10-13

Enter pin code read from Step 1 and confirm.

Configuring system

k518-hyundai-i10-14

Prepare keys to program.

Press OK and hold the Start button with key head within 5 sec till immobilizer indicator goes on.

Test the smart key.

Done!
