Lonsdor K518 Program EU Ford Transit Custom 2016 Remote Key Success

NEW TEST, NEW UPDATE —Ford Transit Custom 2.2 Tdci 2016 successfully done by Lonsdor K518ISE.
Key learning is all fine!

KEEP IT UP!!!!
The car I tried to do the same two days before !
Failed to work then ,but now yes.

Check: Lonsdor K518ISE/K518S May 2019 updated Ford vehicle list

Procedure and images attached:

lonsdor-k518-2016-Ford-Transit-1

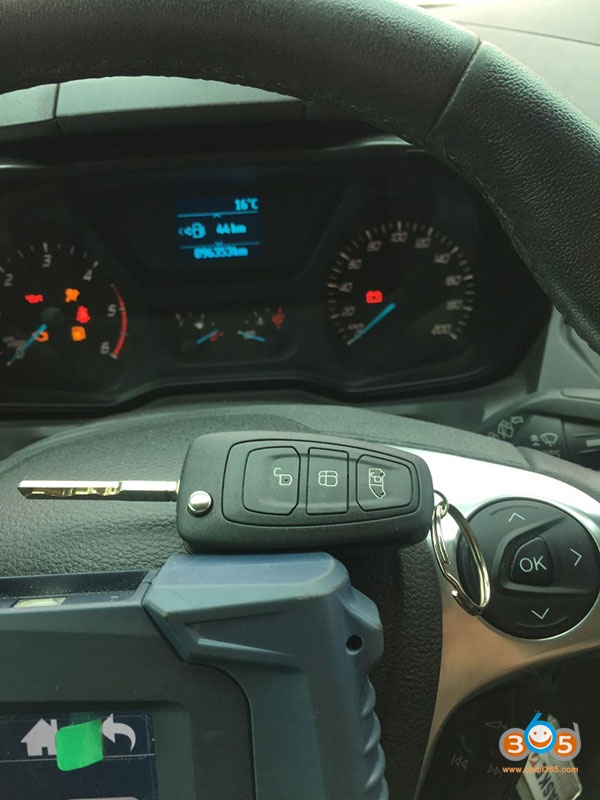

lonsdor-k518-2016-Ford-Transit-2

2 keys are required to program

The function is done though subscribed menu

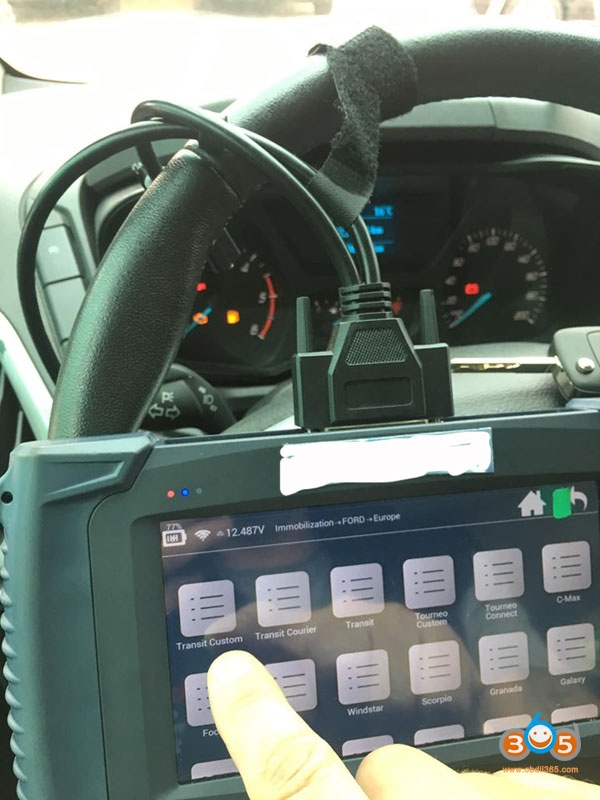

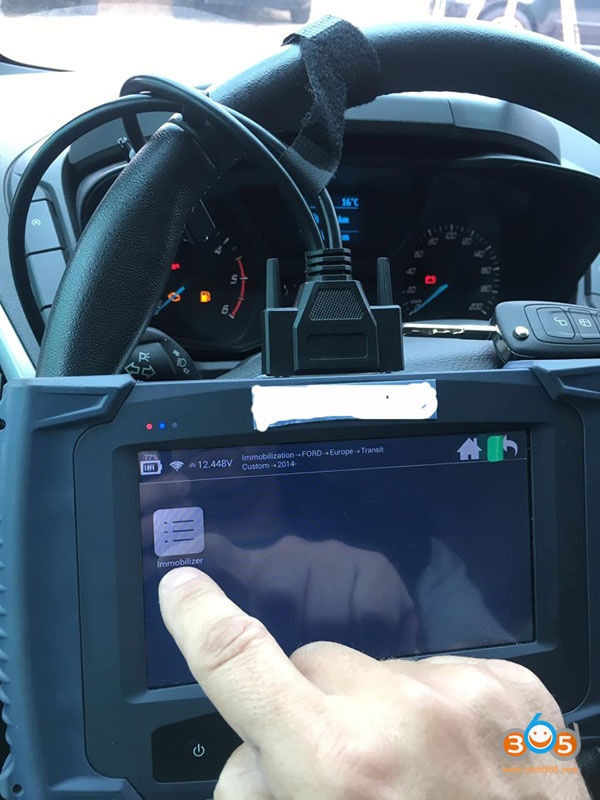

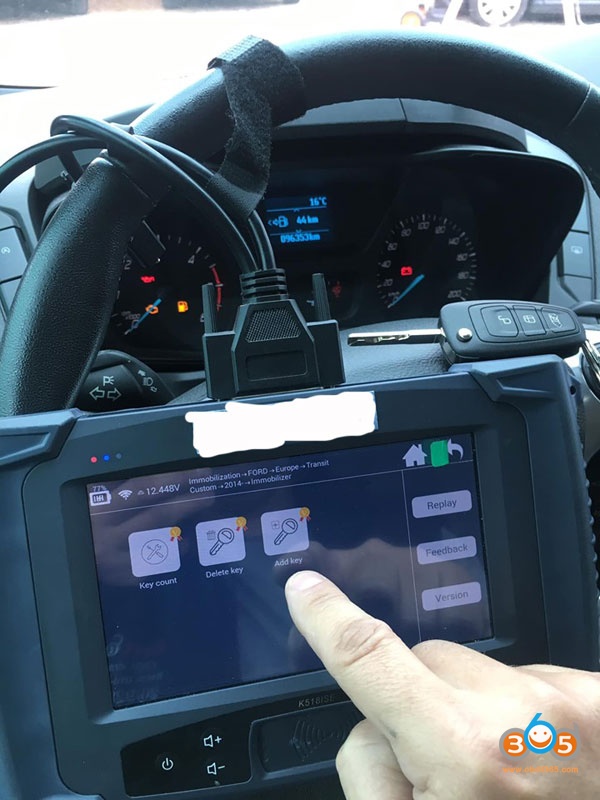

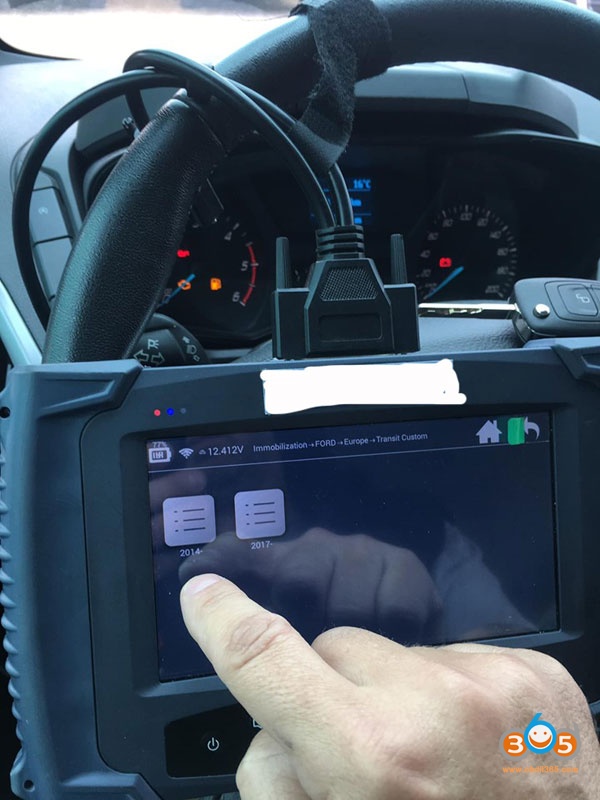

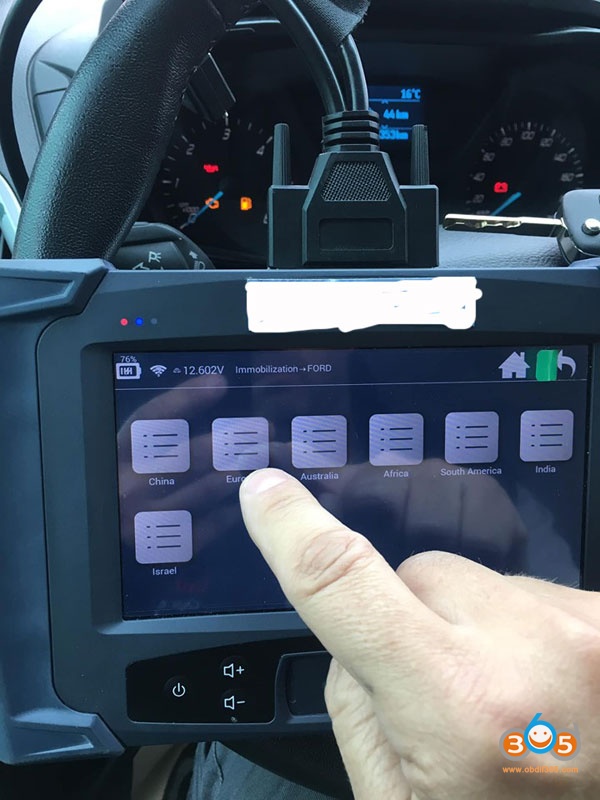

Select Immobilizer->Ford->Europe->Transit Custom->2014 up->Immobilizer->Add key

lonsdor-k518-2016-Ford-Transit-3

lonsdor-k518-2016-Ford-Transit-4

lonsdor-k518-2016-Ford-Transit-5

lonsdor-k518-2016-Ford-Transit-6

lonsdor-k518-2016-Ford-Transit-7

Turn ignition switch to ON position

Make communication

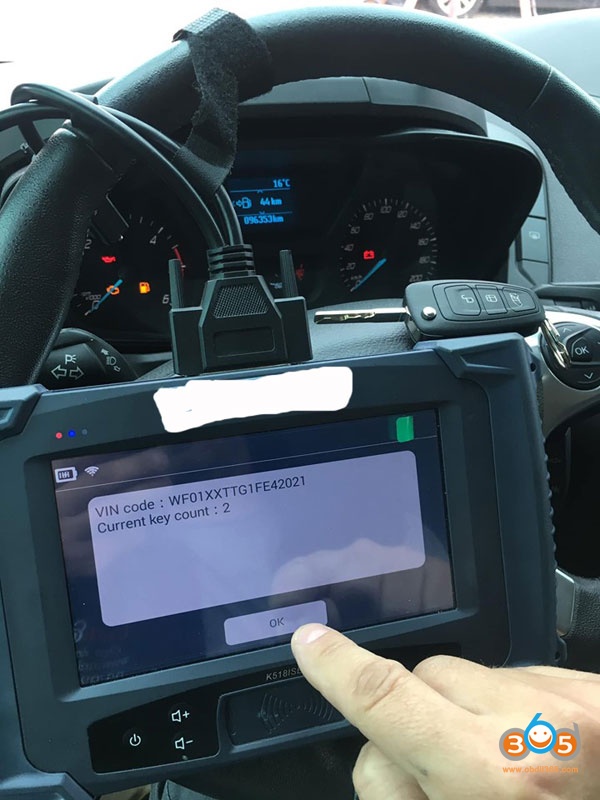

Read Vin and key number

lonsdor-k518-2016-Ford-Transit-8

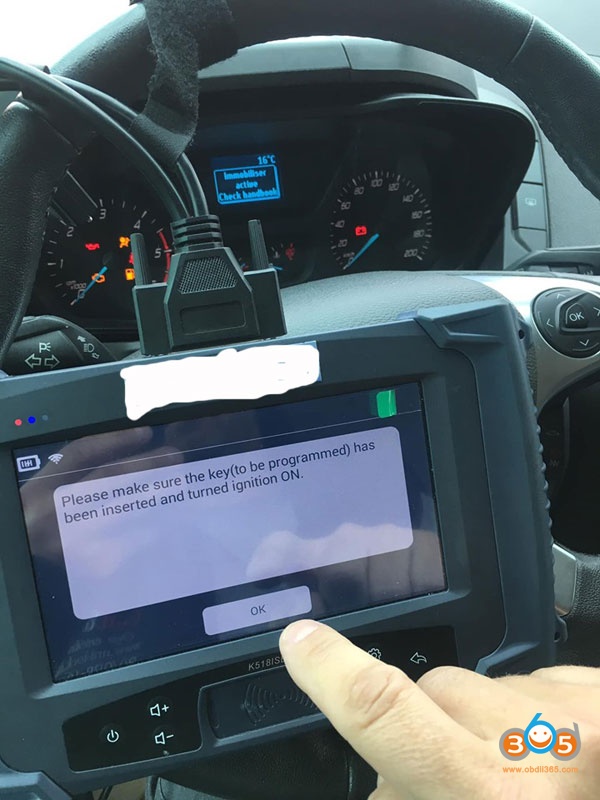

Make sure you have inserted key and turn on ignition

lonsdor-k518-2016-Ford-Transit-9

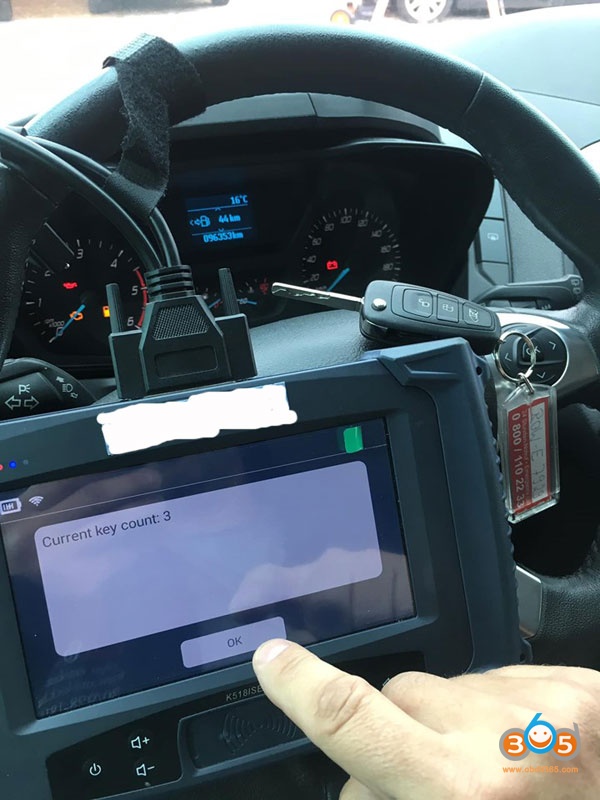

Lonsdor K518 identifies current number of keys: 3

lonsdor-k518-2016-Ford-Transit-10

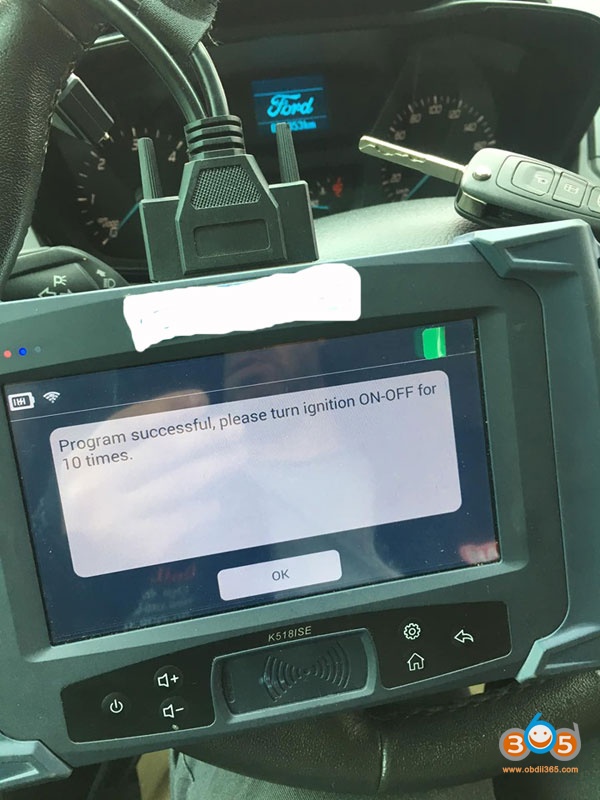

Program success. Turn ignition switch to ON and OFF for 10 times.

lonsdor-k518-2016-Ford-Transit-11

Completed.

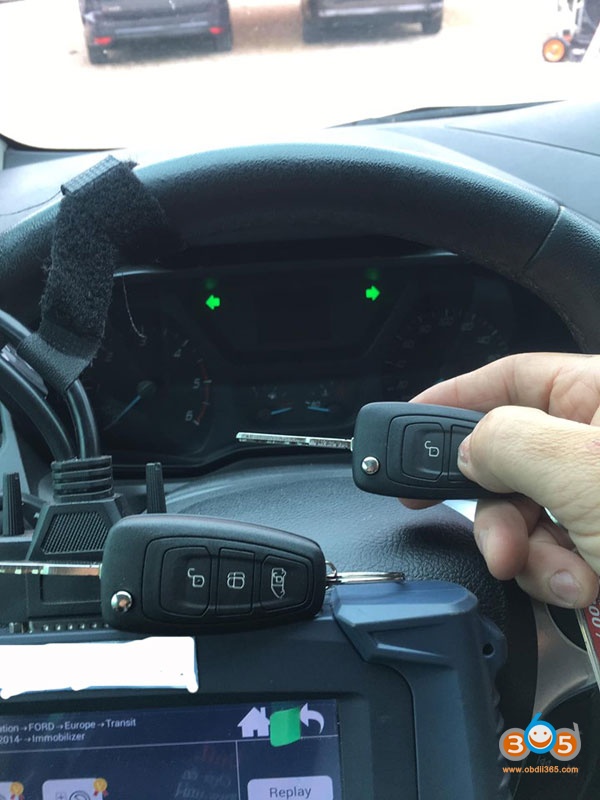

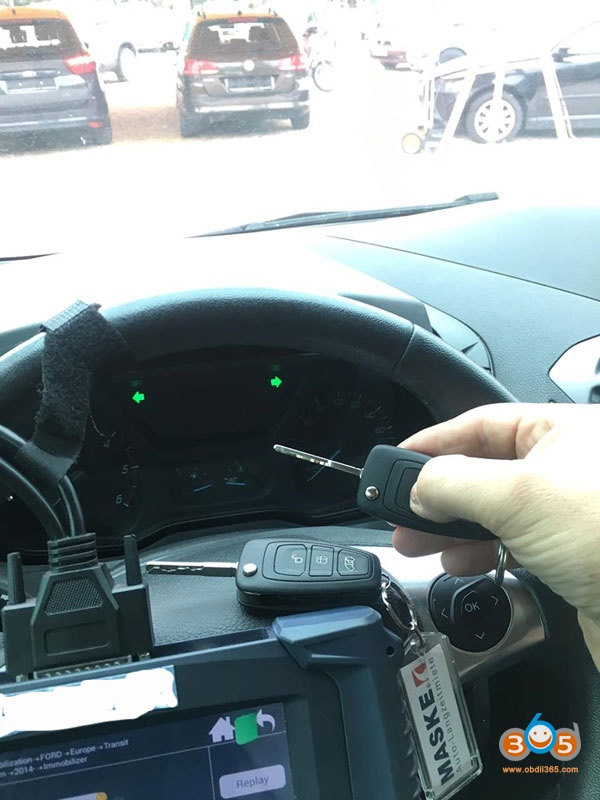

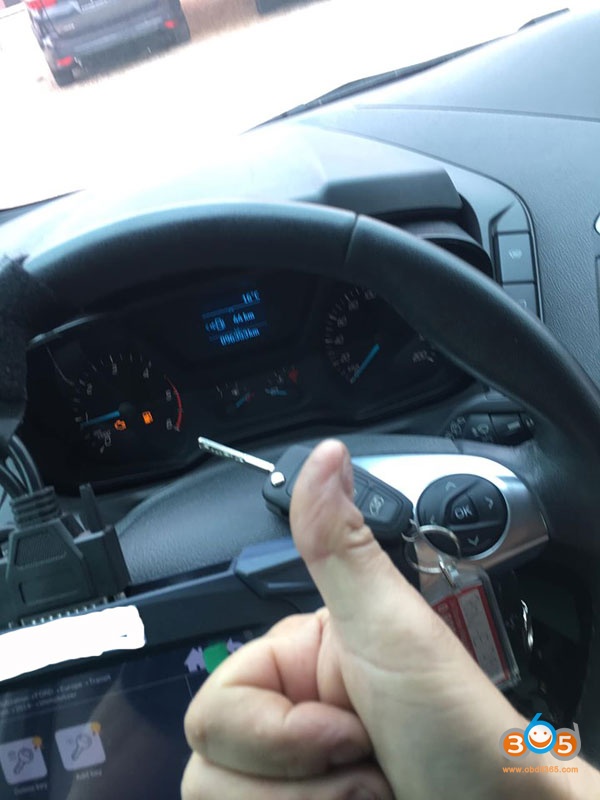

Test the remote control and start engine.

lonsdor-k518-2016-Ford-Transit-12

lonsdor-k518-2016-Ford-Transit-13

lonsdor-k518-2016-Ford-Transit-14

lonsdor-k518-2016-Ford-Transit-15
