Lonsdor K518ISE Adds BMW 7-series F01 2010 CAS4 Remote Key Success

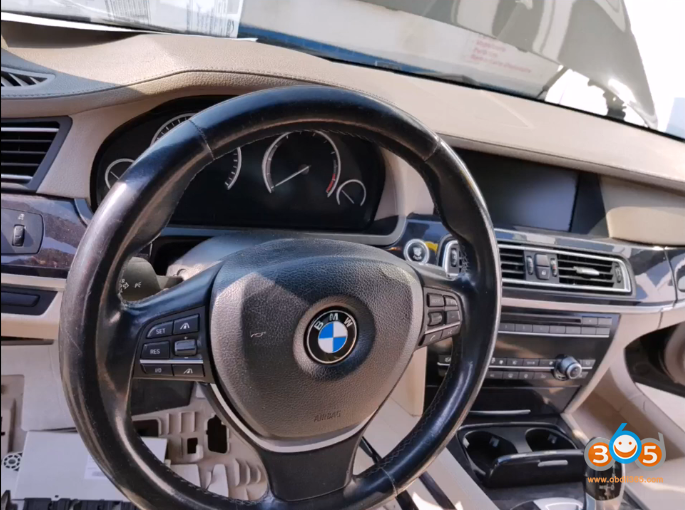

Model: BMW 7-series F01 2010

IMMO Type: CAS4 1L15Y

Remote frequency: 868MHz

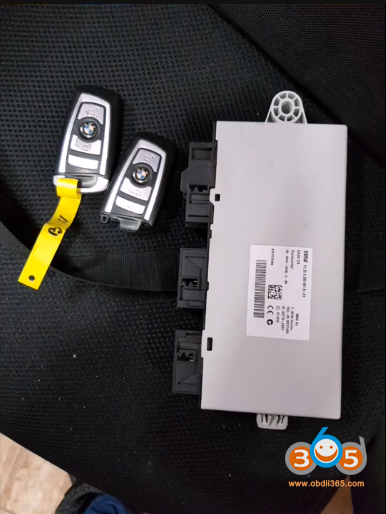

Tools used: 1 original key and a new key, remote unlocker, xhorse vvdi prog and Lonsdor k518ISE key programmer

lonsdor-k518ise-f01-2010-key-1

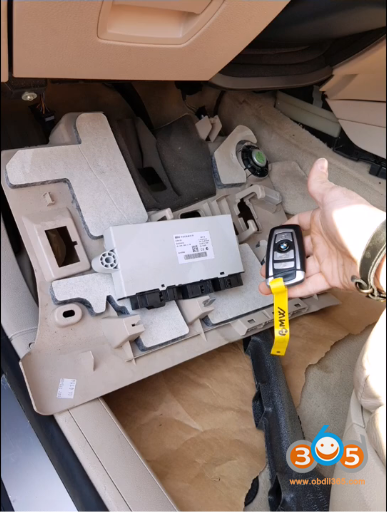

lonsdor-k518ise-f01-2010-key-2

lonsdor-k518ise-f01-2010-key-19

Step 1: Renew Remote Key

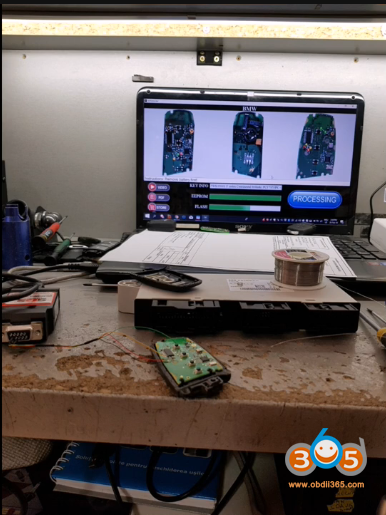

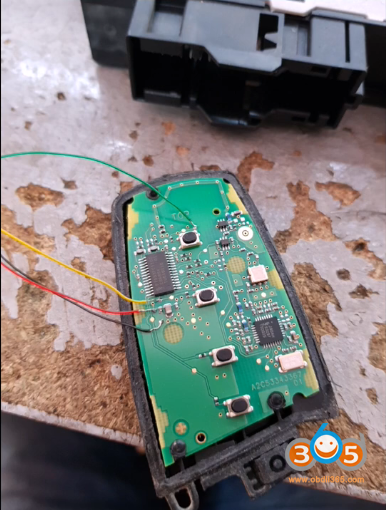

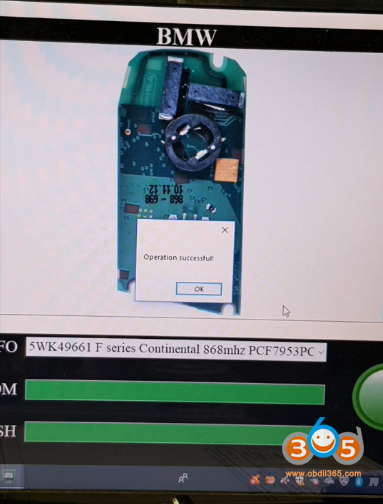

unlock/renew BMW remote key PCF7953 using vvdi key tool or other remote unlocker

lonsdor-k518ise-f01-2010-key-3

lonsdor-k518ise-f01-2010-key-4

lonsdor-k518ise-f01-2010-key-5

lonsdor-k518ise-f01-2010-key-6

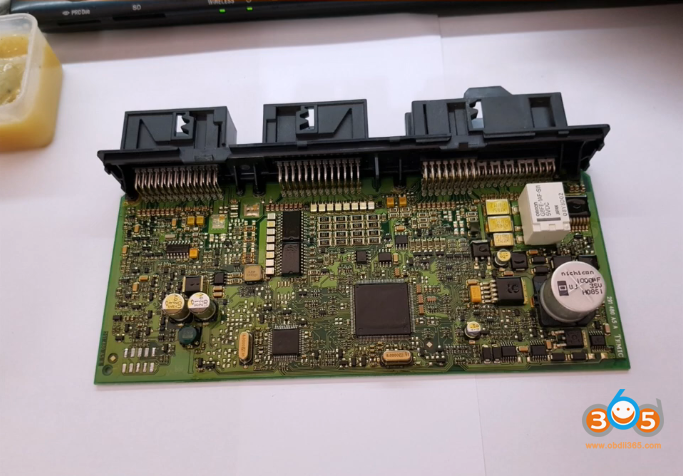

Step 2: Read CAS4 Dump with VVDI Prog

lonsdor-k518ise-f01-2010-key-7

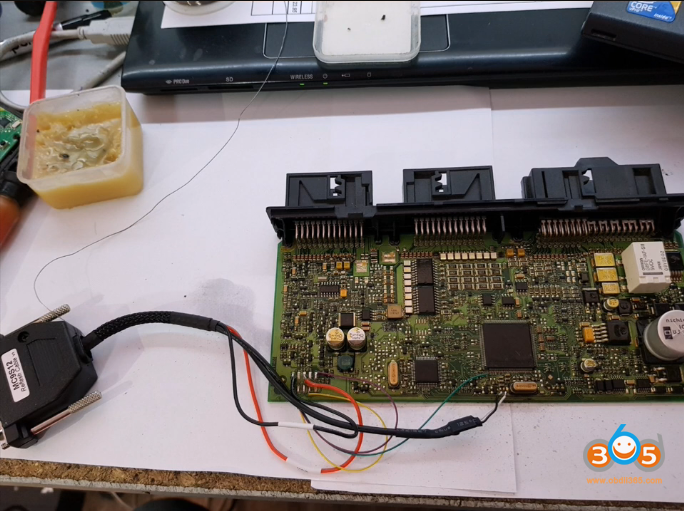

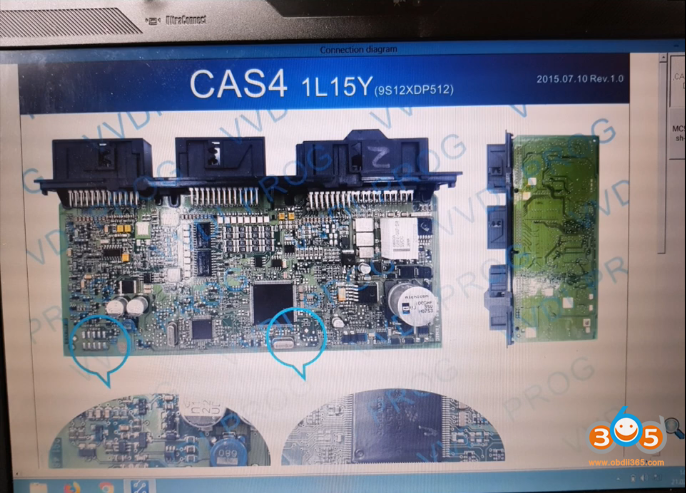

Follow VVDI-Prog wiring diagram to connect cas4 and computer

lonsdor-k518ise-f01-2010-key-8

lonsdor-k518ise-f01-2010-key-9

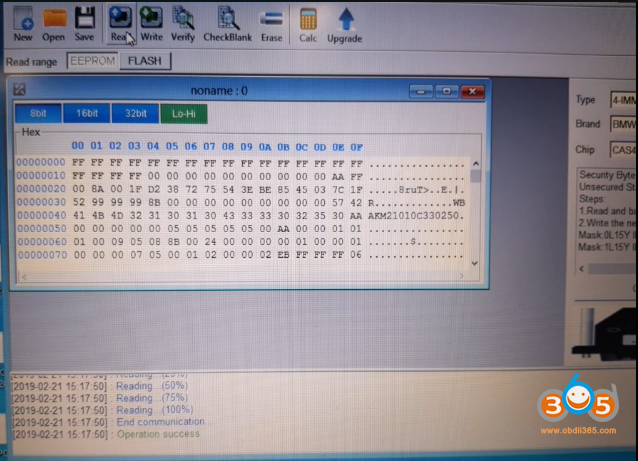

Read and save CAS4 1L15Y dump data

lonsdor-k518ise-f01-2010-key-10

Step 3: Add key with Lonsdor K518

Select Immobilizer->BMW->Select from type->CAS4/CAS4+ ->Make ignition key

lonsdor-k518ise-f01-2010-key-11

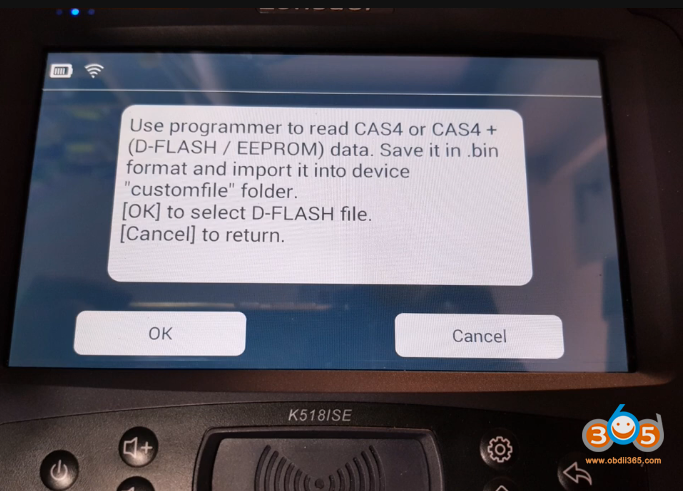

Copy and paste CAS4 D-flash/EEPROM to Lonsdor “customfile” folder

lonsdor-k518ise-f01-2010-key-12

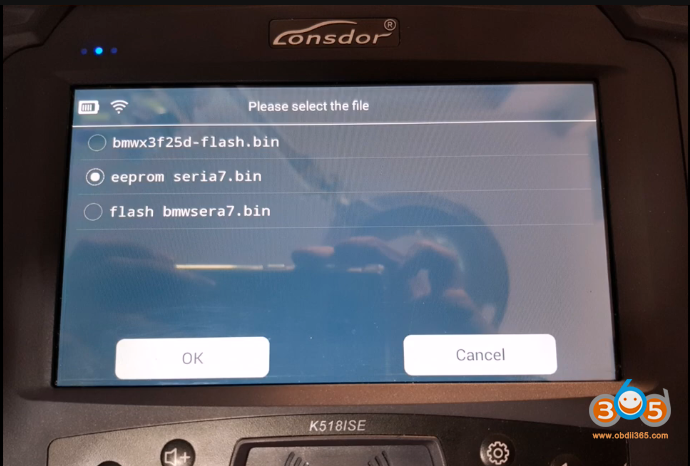

Select D-flash data

lonsdor-k518ise-f01-2010-key-13

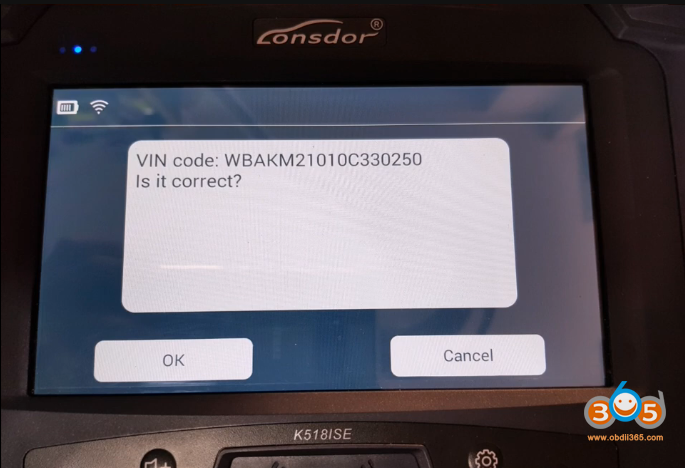

Read VIN

lonsdor-k518ise-f01-2010-key-14

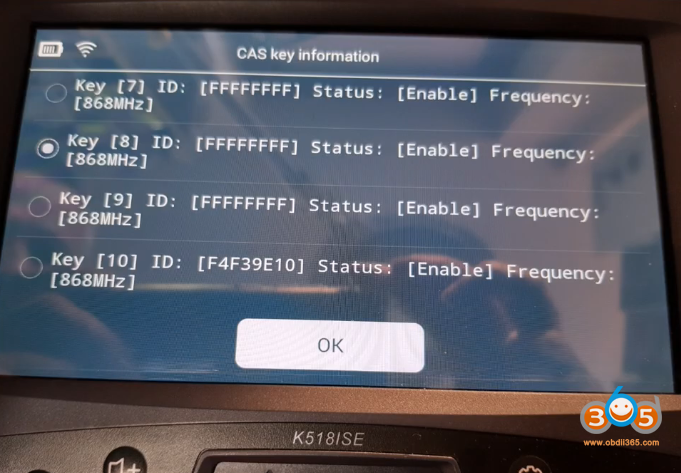

Select a key position to add

lonsdor-k518ise-f01-2010-key-15

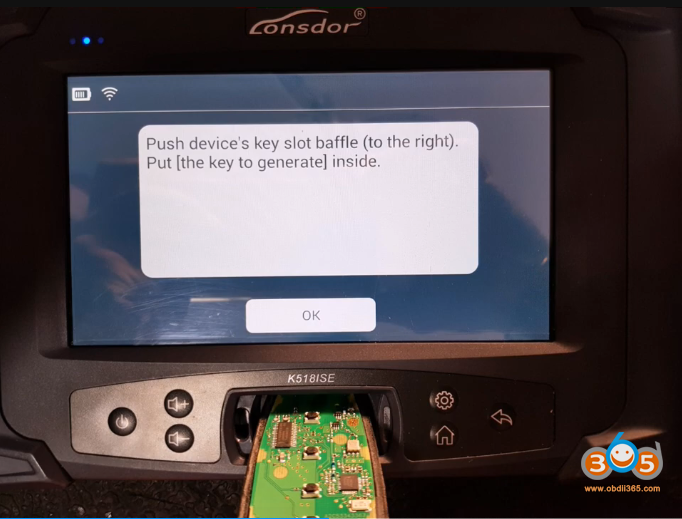

Put the key to be generated to K518 card slot

lonsdor-k518ise-f01-2010-key-16

Generate ignition key success.

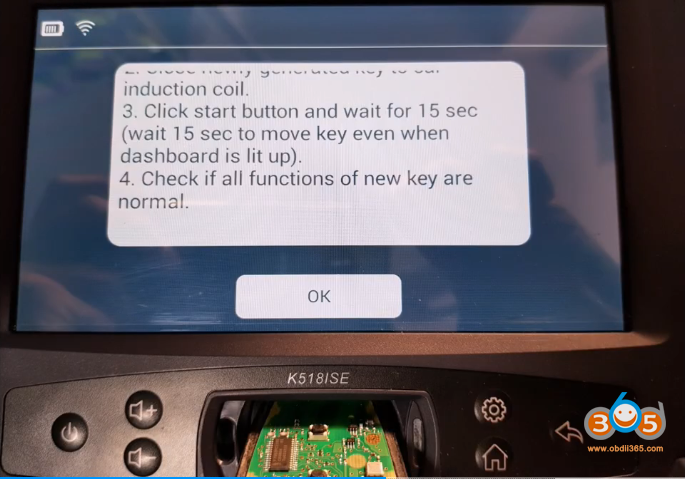

Follow steps below to program remote control:

lonsdor-k518ise-f01-2010-key-17

lonsdor-k518ise-f01-2010-key-18

Program remote key success.

Reinstall CAS4 module

Close the new key to ignition and press Start button to sync key

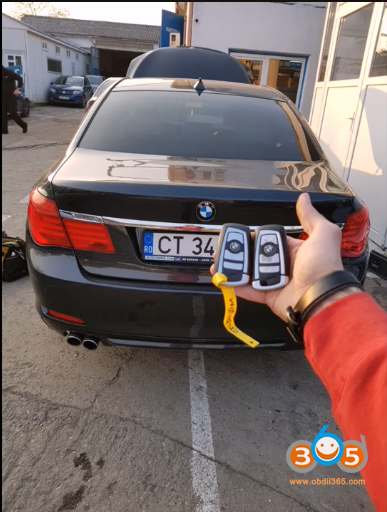

Test remote control and start engine.

lonsdor-k518ise-f01-2010-key-21

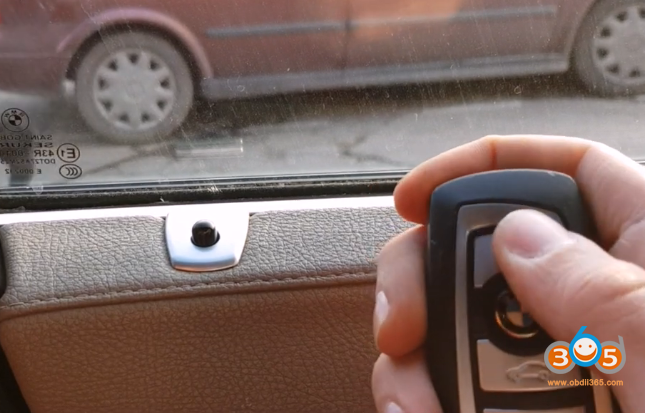

lonsdor-k518ise-f01-2010-key-22

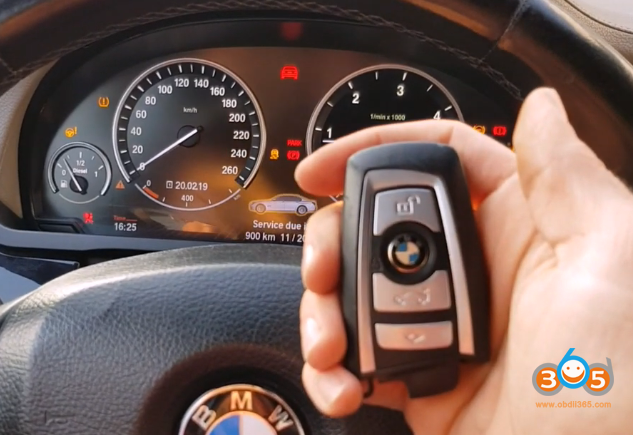

lonsdor-k518ise-f01-2010-key-20

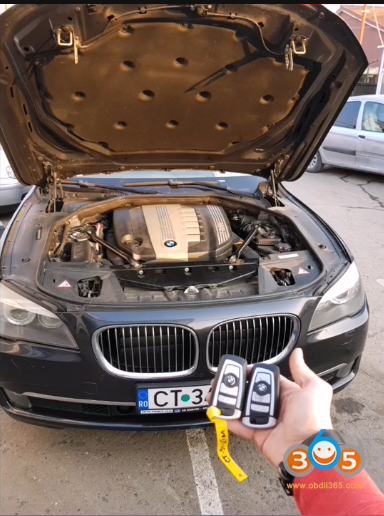

lonsdor-k518ise-f01-2010-key-23

lonsdor-k518ise-f01-2010-key-24

Done.
