Lonsdor K518ISE Program Citroen Berlingo 2013 Remote Key Success

How-to guide: Citroen Berlingo 2013 key programming by Keydiy remote using Lonsdor K518ISE key programmer via OBD.

berlingo-original-remote

Berlingo 2013 original remote 3-button

keydiy-remote

Keydiy universal remote 3-button



Step 1: Read Pin Code

Connect K518 host with vehicle via OBD socket

Select Immobilizer->Citroen-> Read pin code->Type 2

lonsdor-k518-citroen-berlingo-2

lonsdor-k518-citroen-berlingo-3

lonsdor-k518-citroen-berlingo-4

Turn ignition switch to ON position with original key

lonsdor-k518-citroen-berlingo-8

Read vehicle information: VIN, PSA number etc

lonsdor-k518-citroen-berlingo-5

Reading data and verifying PIN

lonsdor-k518-citroen-berlingo-6

Londsdor K518 read Berlingo 2013 pin code succeed



Step 2: Program key & remote

Select Immobilizer->Citroen->Select from vehicle ->Berlingo->Immobilizer->Type 3->Program key

lonsdor-k518-citroen-berlingo-7

Turn ignition to ON position

Communicating

Read vehicle information again

lonsdor-k518-citroen-berlingo-9

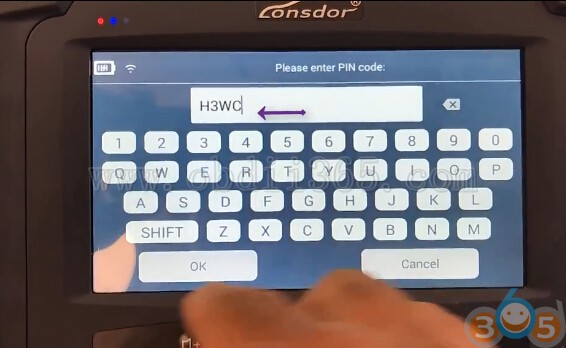

K518ISE requires 4-digit pin code to access

Turn ignition OFF and ON with original key within 15 seconds

lonsdor-k518-citroen-berlingo-10

1st key programming completed

lonsdor-k518-citroen-berlingo-11

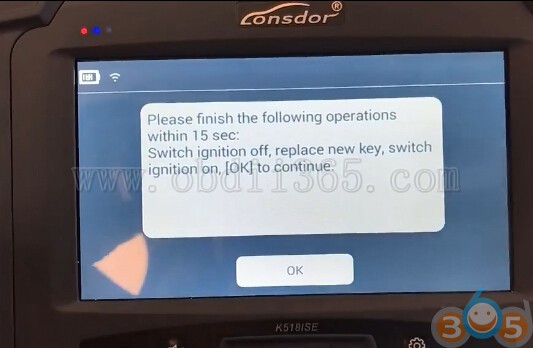

Turn ignition off.

Insert new key (keydiy remote), turn ignition on

lonsdor-k518-citroen-berlingo-12

2nd key programming completed

lonsdor-k518-citroen-berlingo-13

Follow steps below to program remote control:

  1. Turn ignition off and remove key
  2. Insert a key and switch ignition on
  3. Press any button of the remote key for 10 sec and then release within 20 sec
  4. Switch ignition off and remove key

lonsdor-k518-citroen-berlingo-14

Program remote key success.

lonsdor-k518-citroen-berlingo-15

lonsdor-k518-citroen-berlingo-16

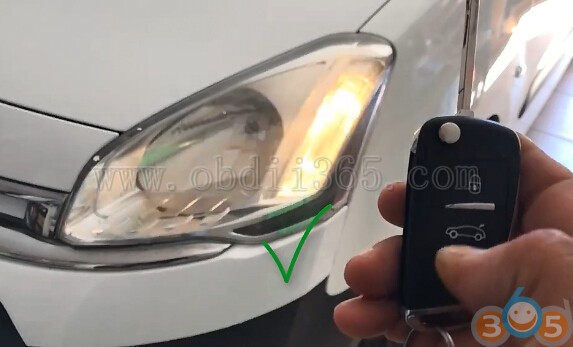

Test the remote and start vehicle.

Done.
