Lonsdor K518ISE read Peugeot 508 2012 Pin Code in 10 seconds

New customer feedback: Lonsdor K518ISE key programmer read Peugeot 508 year 2012 Pin Code success in 10 seconds!!!



Connect K518 host with vehicle via OBD socket

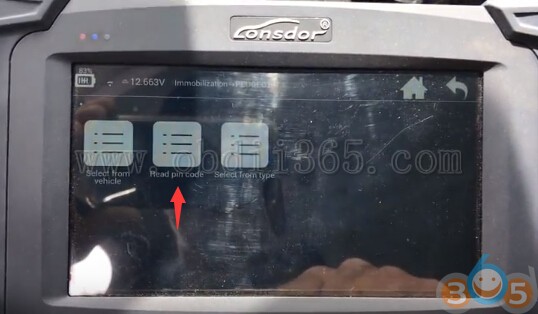

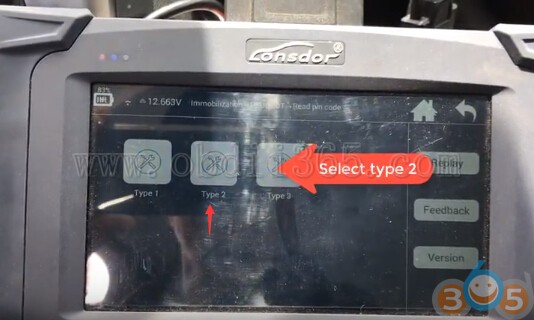

Select Immobilizer->Peugeot->Read PIN code->Type 2

lonsdor-k518-peugeot-508-pin-2 lonsdor-k518-peugeot-508-pin-3 lonsdor-k518-peugeot-508-pin-4

During the operation, windshield wipers move and headlights turn on. It’s normal phenomenon。

To stop the windshield wipers from moving, check Help folder and pull out the corresponding fuse.

lonsdor-k518-peugeot-508-pin-5

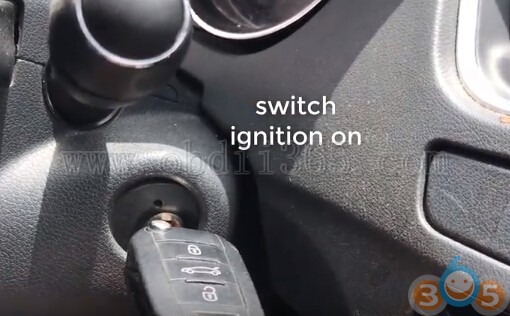

Turn ignition to ON position

lonsdor-k518-peugeot-508-pin-6

Lonsdor K518 reads vehicle information

lonsdor-k518-peugeot-508-pin-7

Click OK to confirm and begin reading pin code

lonsdor-k518-peugeot-508-pin-8

Lonsdor read Peugeot 508 pin code success in 10 seconds. Very fast.

Lonsdor K518ISE will not only read pin code by also program keys to this model after the key was encoded.
