SKP1000 Read Cadillac SRX 2013 Pin Code and Program Smart Key

How to read security pin code and add a smart key to a Cadillac SRX 2013 by using SKP1000 car key programmer via OBD.



Key information:

Original key: 5-button smart card

Frequency: 315MHz

Chip: ID46 chip

Pin Code: read by SKP1000

Device to program: SKP 1000 tablet key programmer



Procedure:

Step 1: Read PIN Code

Connect SKP1000 key programmer with vehicle via OBD

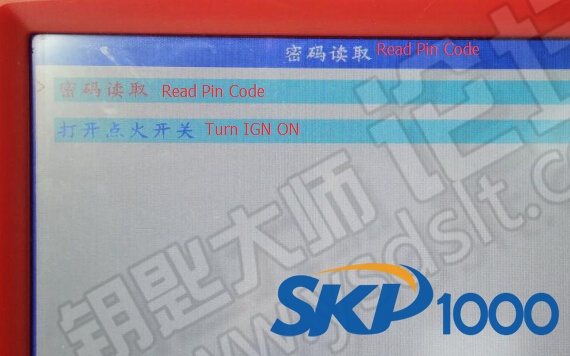

Turn ignition ON

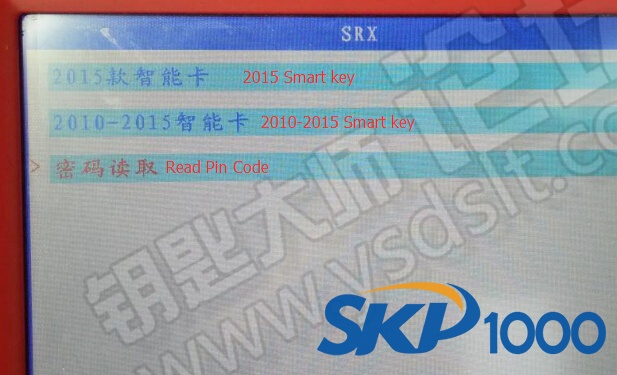

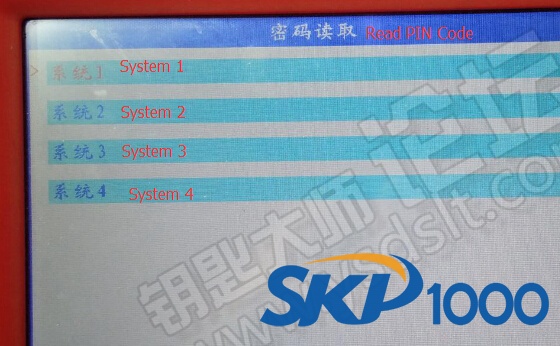

Select Cadillac->SRX->Read Pin code->System 1

skp1000-Cadillac-srx-1

skp1000-Cadillac-srx-2

skp1000-Cadillac-srx-3

skp1000-Cadillac-srx-4

skp1000-Cadillac-srx-5

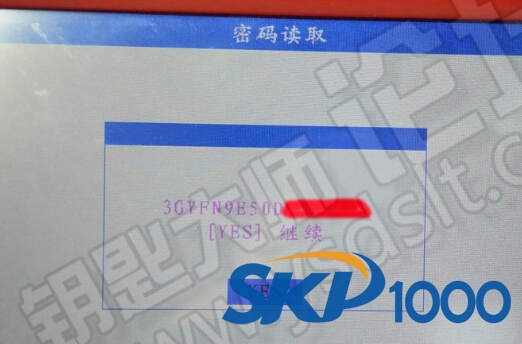

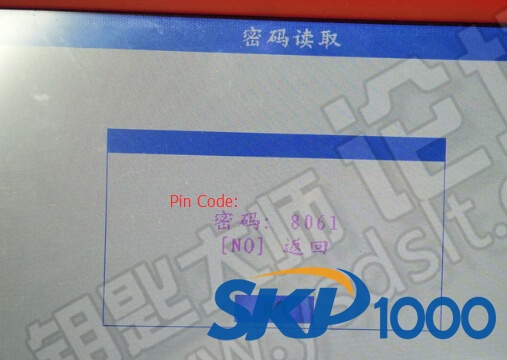

SKP-1000 read vehicle VIN then pin code

skp1000-Cadillac-srx-6

skp1000-Cadillac-srx-7

Step 2: Program Smart Key

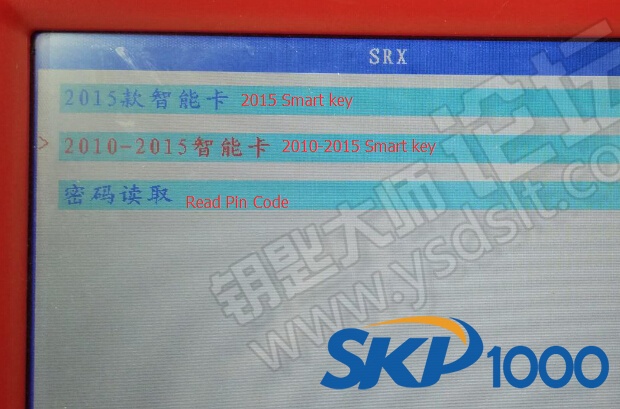

Select 2010-2015 Smart key-> Smart key system

skp1000-Cadillac-srx-8

Choose OBDII Connector

Turn ignition OFF

Press YES

skp1000-Cadillac-srx-9

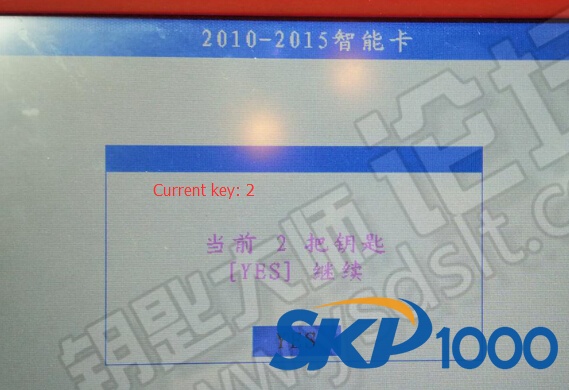

Current key number: 2

skp1000-Cadillac-srx-10

Choose Program Smart key entry

skp1000-Cadillac-srx-11

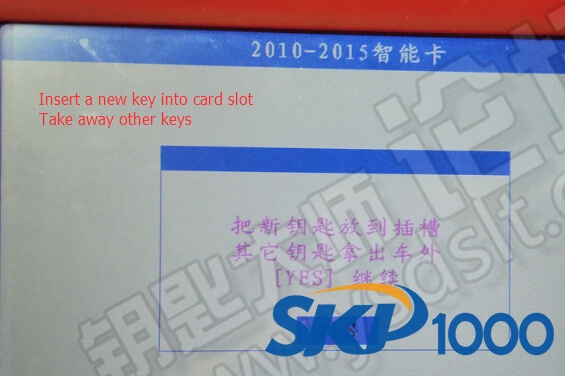

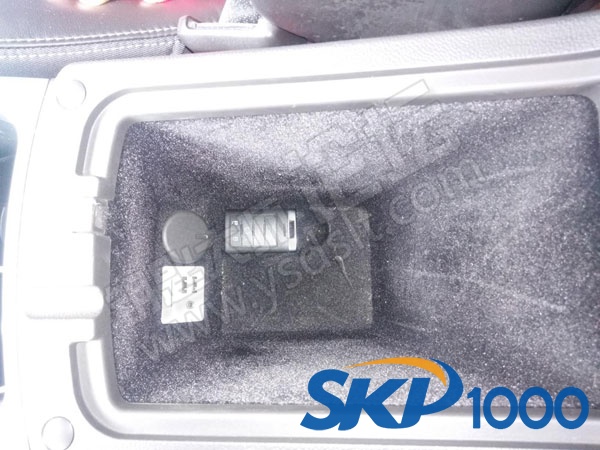

Please insert a new key into slot and take other keys out of car

skp1000-Cadillac-srx-12

skp1000-Cadillac-srx-13

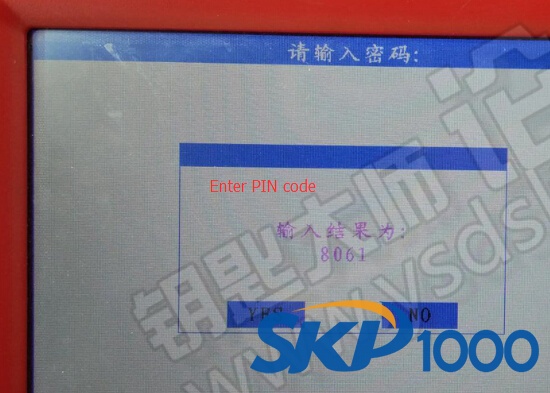

SKP1000 auto key programmer require to enter 4-digit security code

skp1000-Cadillac-srx-14

Configuring system, please wait for 12 minutes

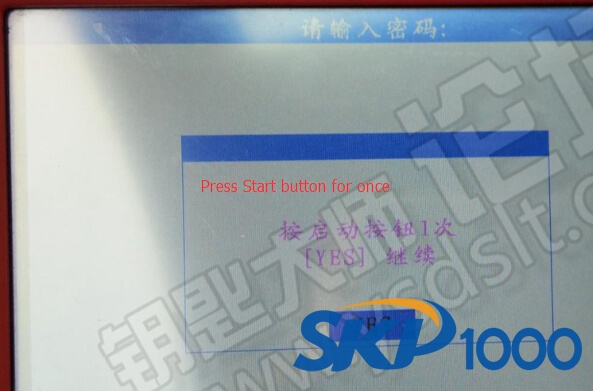

Then press on the Start button for once

skp1000-Cadillac-srx-15

Whether to program next key? Press YES

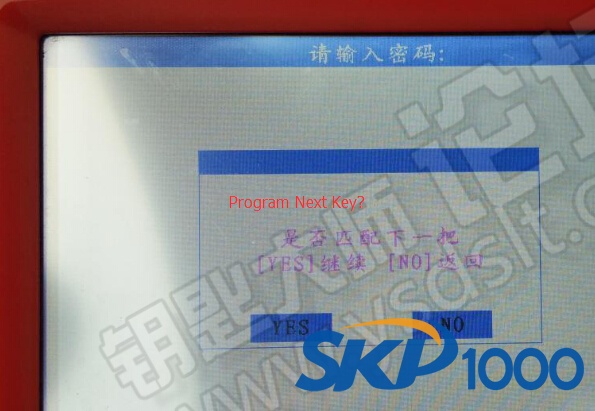

skp1000-Cadillac-srx-16

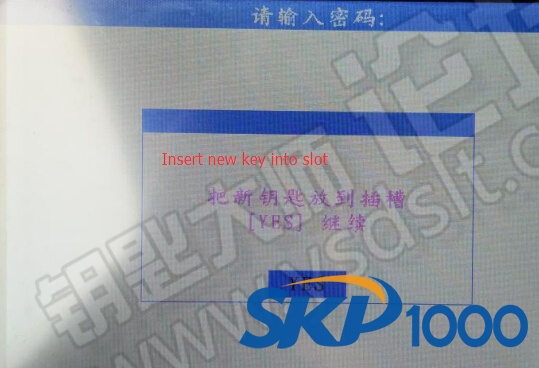

Put new key into slot, press YES to continue

skp1000-Cadillac-srx-17

Press on the START button for once

skp1000-Cadillac-srx-18

Program next key? Press YES

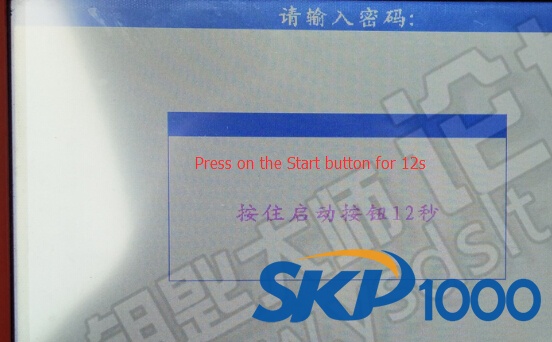

Press on the Start button for 12s

skp1000-Cadillac-srx-18

Keep pressing on the START button until ignition to ON position

skp1000-Cadillac-srx-19

Configuring system

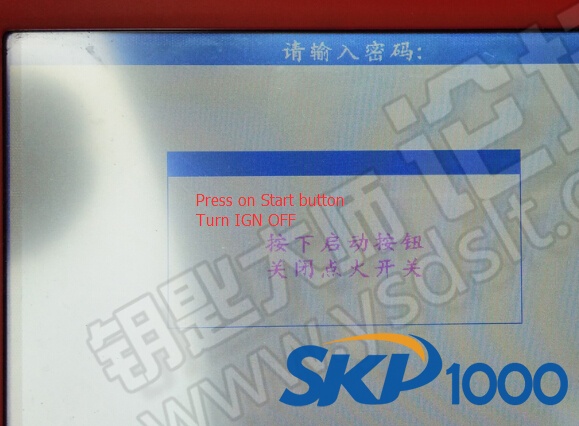

Press on START button

Turn ignition OFF

skp1000-Cadillac-srx-20

Configuring system,please wait for 30s

All keys must be synchronized with the car

Press YES

skp1000-Cadillac-srx-21

Press Start Button and start engine

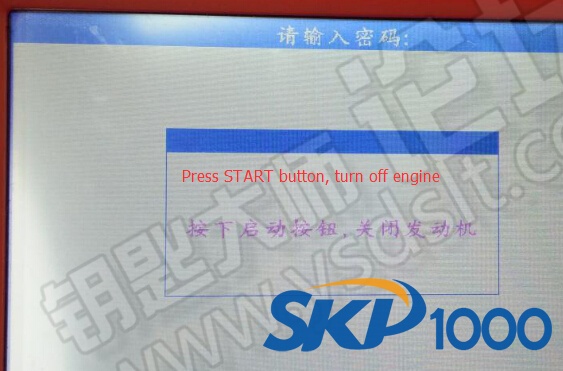

Press Start Button and then turn off engine

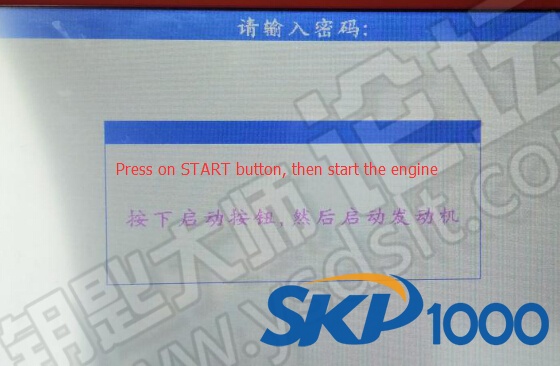

skp1000-Cadillac-srx-22

skp1000-Cadillac-srx-23

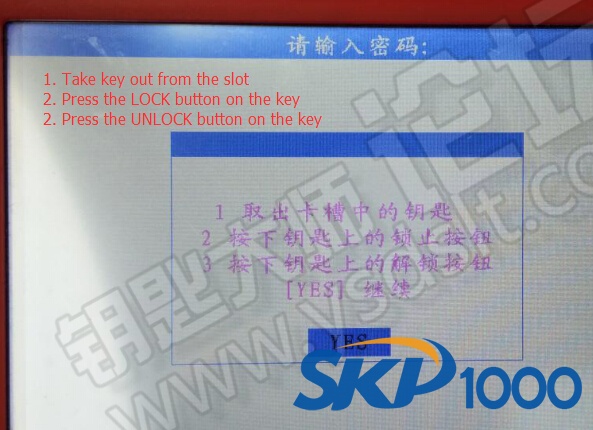

Follow SKP1000 prompt,

  1. Take key out of the slot

2. Press the LOCK button on the key

3. Press the UNLOCK button on the key

skp1000-Cadillac-srx-24

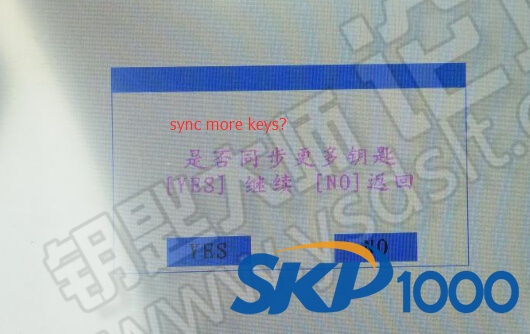

Sync more keys?

Press YES

skp1000-Cadillac-srx-25

Follow steps above to add next key

Insert next key into slot

Take away other keys

Press Start Button and start engine

Configuring system…

Press Start Button and then turn off engine

  1. Take key out of the slot

2. Press the LOCK button on the key

3. Press the UNLOCK button on the key

Sync more keys?

Press NO

Configuring system…

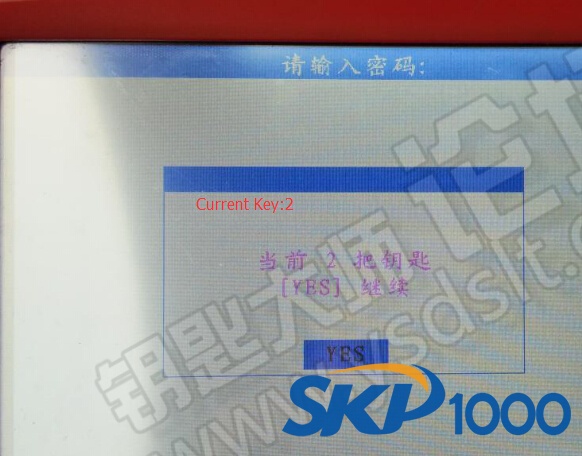

Current key: 2

skp1000-Cadillac-srx-27

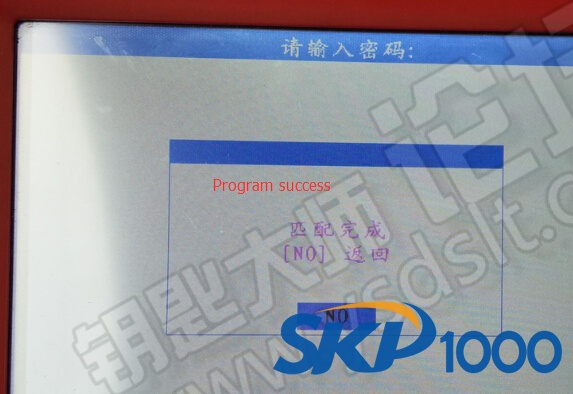

Program success.

skp1000-Cadillac-srx-28
