SKP1000 Read Pin Code and Program Remote Key on a Chrysler Sebring 2008

Here’s the guide to use SKP1000 car key programmer to read security pin code and add a straight remote key on a┬áChrysler Sebring 2008.

skp1000-Chrysler-Sebring-1

Key information:

Original key: 3-button Straight remote key

Chip: ID46

Frequency: 433MHz

Pin code: YES (Read by SKP 1000)

Device to program: SKP1000 tablet auto key programmer.



Procedure:

Step 1: Read Pin Code

Connect SKP1000 key programmer with vehicle via OBD socket

Select Chrysler->Immobilizer system (straight remote key)-> Immobilizer system

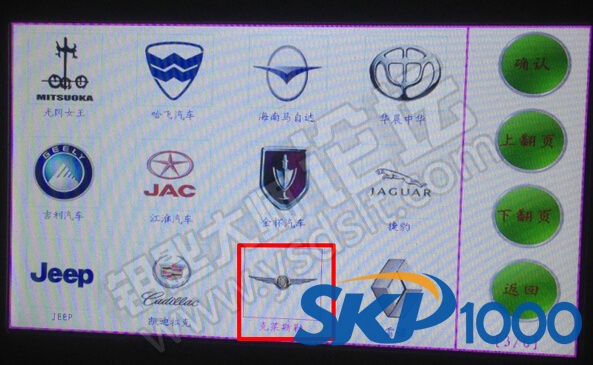

skp1000-Chrysler-Sebring-2

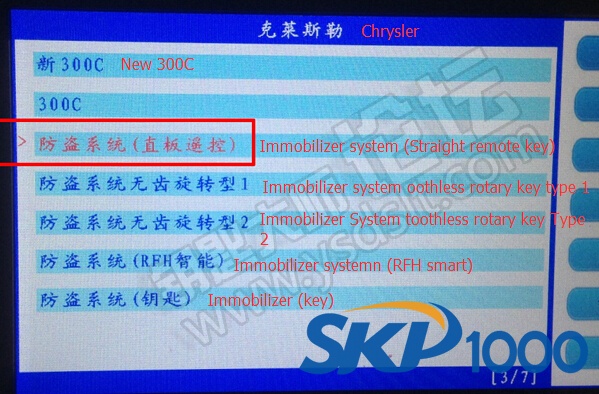

skp1000-Chrysler-Sebring-3

skp1000-Chrysler-Sebring-4

Choose OBDII connector

Turn ignition to ON position

Press YES

skp1000-Chrysler-Sebring-5

Select Read Pin Code function

skp1000-Chrysler-Sebring-6

Read pin code success

skp1000-Chrysler-Sebring-7

Step 2: Program key

Select Add a key function

skp1000-Chrysler-Sebring-8

Insert a new key to be programmed

Turn ignition ON

Press YES

skp1000-Chrysler-Sebring-9

SKP1000 will require to enter pin code to program key

Enter 4-digit security code and confirm

skp1000-Chrysler-Sebring-10

skp1000-Chrysler-Sebring-11

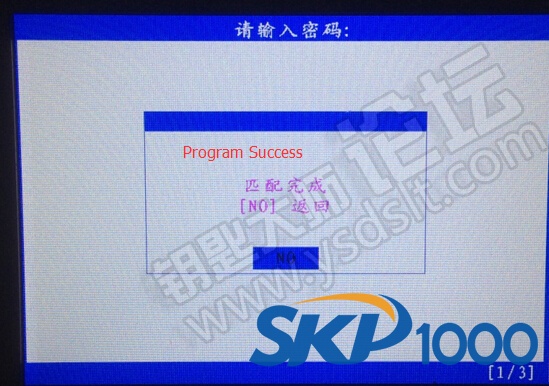

Program success will generate remote automatically.

skp1000-Chrysler-Sebring-12

Test the remote key.
