Lonsdor K518 Program Ford Kuga 2013 Smart Key without PIN Code

Guide to program smart key on a Ford Kuga 2013 year by using Lonsdor K518 key programmer.

Key information:

Original key: 3-button smart card

Frequency: 433MHz

Chip Type: 83 chip

Card slot: under the steering wheel

PIN Code:  automatically read by K518

Device to program: Lonsdor K518ISE key programmer

Generate Remote: automatically generate remote after program success



Procedure:

Connect Lonsdor K518 host with vehicle via OBD diagnostic socket

Select Ford->Kuga->Other region->Program Smart Key->Add smart key

For American Kuga, K518 supports program key from year 2005-2007.

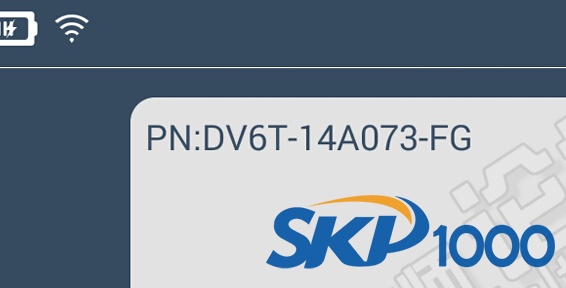

Lonsdor K518 shows current key number

Insert a new key into card slot, turn ignition to ON position

Lonsdor K518ISE reading pin code in progress

Insert key

Program success.

Test remote control.
