Lonsdor K518ISE Read Pin Code and Program Key on VW Golf 4

Lonsdor K518ISE key programmer has successfully read pin code and programmed key for vw glof 4.



Step 1: Read Pin Code

Connect Lonsdor K518 with vehicle via OBD socket

Select Immobilizer->VW->2th & 3th IMMO->Pin code reading->Dashboard

lonsdor-k518ise-vw-golf4-1

lonsdor-k518ise-vw-golf4-2

lonsdor-k518ise-vw-golf4-3

lonsdor-k518ise-vw-golf4-4

Downloading application

Turn ignition switch on

lonsdor-k518ise-vw-golf4-5

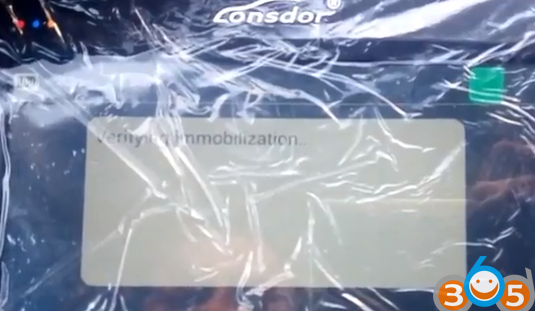

Start reading pin code and verifying immobilizerlonsdor-k518ise-vw-golf4-6

Read pin code success

lonsdor-k518ise-vw-golf4-7

Step 2: Program key

Select Immobilizer function

lonsdor-k518ise-vw-golf4-8

lonsdor-k518ise-vw-golf4-9

Turn ignition on

lonsdor-k518ise-vw-golf4-10

Turn ignition off and on

Insert a working key to switch ignition on

lonsdor-k518ise-vw-golf4-11

Communicating

Lonsdor K518ISE requires to enter 5-digit pin code to access and confirm

lonsdor-k518ise-vw-golf4-12

Login success

Select program channel 21

lonsdor-k518ise-vw-golf4-13

Enter number of keys to be programmed: 2

lonsdor-k518ise-vw-golf4-14

Switch ignition off

Insert all keys and turn ignition on for at least 5 sec one by one.  When complete all keys, press OK to finish key programming.

lonsdor-k518ise-vw-golf4-15

Test remote and start car.

lonsdor-k518ise-vw-golf4-16

Done.
