SKP1000 Adds Toyota Land Cruiser 2012 Smart Key by OBD

SKP1000 Key programmer (CI600 plus) successfully added a smart key to a Toyota Land Cruiser year 2012 by OBD.

Key information:

2-button smart key

Frequency: 433MHz

Card slot: No

Start engine: One button start-stop

Device to program: SKP 1000 tablet auto key programmer

Procedure:

Connect SKP1000 host with vehicle via OBD diagnostic socket

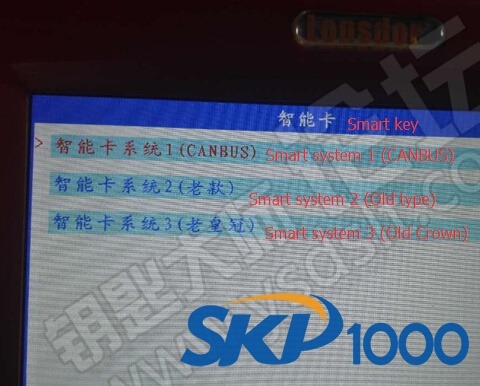

Select Immobilizer function->Toyota->By system-> Smart key system 1 (CANBUS)

Maximum 7 keys can be programmed to this car

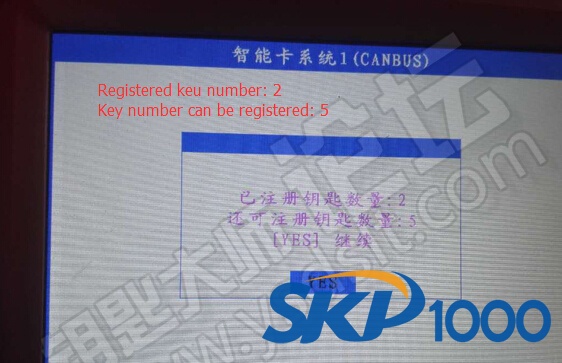

2 smart keys has been registered and another 5 keys can be programmed

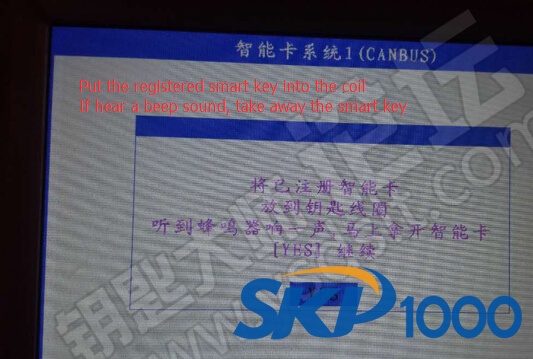

SKP1000 car key programmer prompt to put a registered smart key into coil, remove smart key when hear beep sound

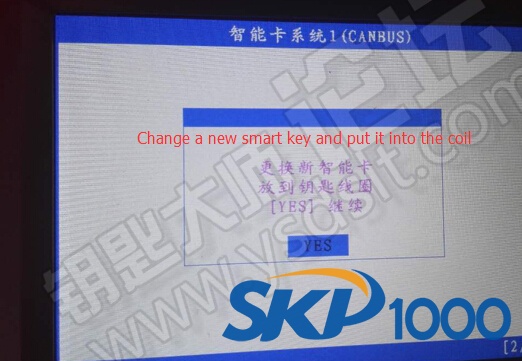

Change a new smart key and put it into coil

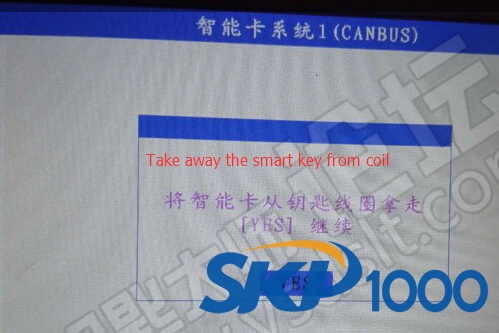

Remove key from coil

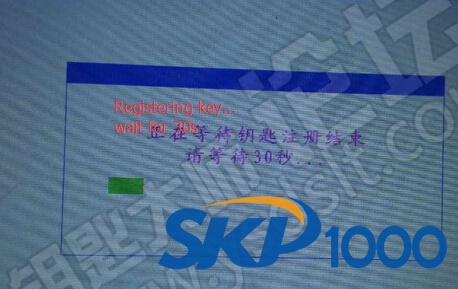

Configuring…please wait for 30 sec

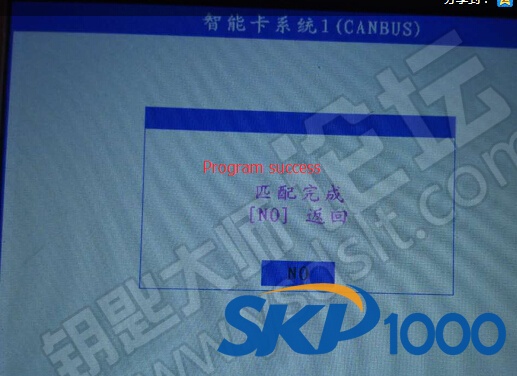

Program success.

Test the new smart key.
