Lonsdor K518ISE Program Ford Mondeo 2016 Remote Key

Here’s the procedure to duplicate a key for the 2016 Ford Mondeo with key chip ID49 Hitag 3 (Hitag pro). The remote control is automatically programmed. Key programming is done with the Lonsdor K518ISE key programmer.

lonsdor-k518-2016-ford-mondeo-0

Two keys are required. Original key and a new key (3-button remote).



Turn on ignition switch with original key

Select Immobilizer->Ford->New Mondeo-> pre-2017->Immobilizer->Add key

lonsdor-k518-2016-ford-mondeo-1

lonsdor-k518-2016-ford-mondeo-2

lonsdor-k518-2016-ford-mondeo-3

lonsdor-k518-2016-ford-mondeo-4

lonsdor-k518-2016-ford-mondeo-5

You can check Lonsdor K518 manual to add key or program all keys lost

lonsdor-k518-2016-ford-mondeo-6

lonsdor-k518-2016-ford-mondeo-7

lonsdor-k518-2016-ford-mondeo-8

Switch ignition off

lonsdor-k518-2016-ford-mondeo-9

Read VIN and key numbers

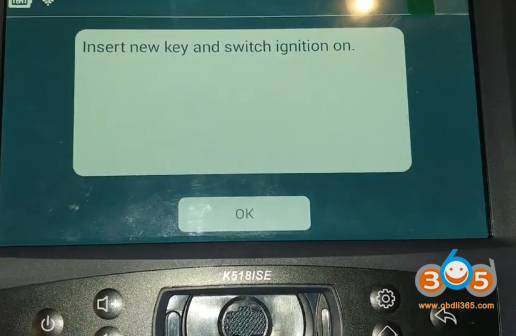

Insert a new key and turn on ignition

lonsdor-k518-2016-ford-mondeo-10

Programming in procedure

lonsdor-k518-2016-ford-mondeo-11

Identify number of programmed keys: 3

lonsdor-k518-2016-ford-mondeo-12

lonsdor-k518-2016-ford-mondeo-13

Program complete.

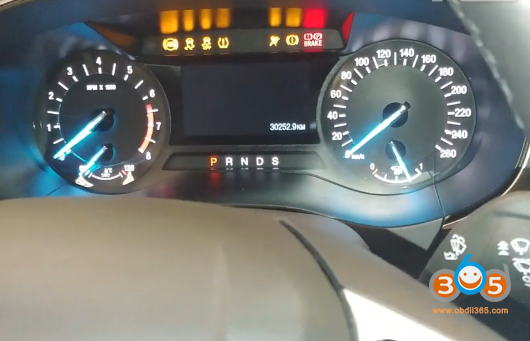

Test the remote control and start car.

lonsdor-k518-2016-ford-mondeo-14

Done.
