Lonsdor K518ISE Program Honda CR-V 2015 Remote Key

How to make a chip key with auto start on the Honda CR-V 2015. In the key chip ID49 Hitag 3 (Hitag pro). The remote control buttons are automatically programmed. Key rogramming is done with the Lonsdor K518ise key programmer.

lonsdor-k518-honda-crv-2015-key-1

Remote key 3 buttons

Note: DO Follow each IGN ON/OFF operation.

Connect K518 host with vehicle via OBD Socket

Select Immobilizer->Honda->Select from vehicle->CR-V->2012 up-> Immobilizer->Search Immo Type->Immo Type

lonsdor-k518-honda-crv-2015-key-2

lonsdor-k518-honda-crv-2015-key-3

lonsdor-k518-honda-crv-2015-key-4

lonsdor-k518-honda-crv-2015-key-5

lonsdor-k518-honda-crv-2015-key-6

Turn on ignition switch

lonsdor-k518-honda-crv-2015-key-7

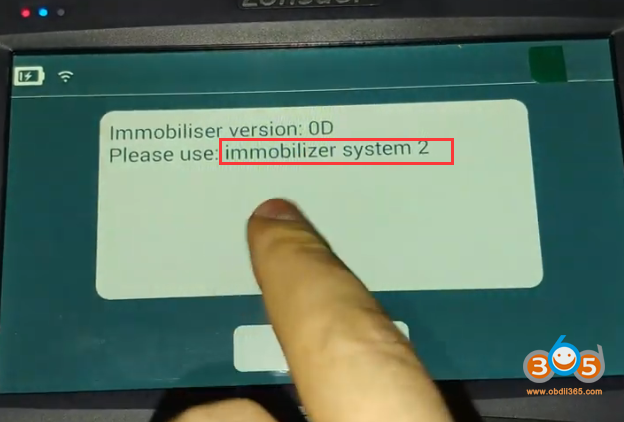

Lonsdor K518 identified the immo type 2

Then go back to select IMMO2 and Add Key

lonsdor-k518-honda-crv-2015-key-8

Insert registered key and switch ignition ON

lonsdor-k518-honda-crv-2015-key-9

Turn off ignition in 15s

lonsdor-k518-honda-crv-2015-key-10

Turn ignition on with original key in 17s

Turn off ignition in 17s

lonsdor-k518-honda-crv-2015-key-11

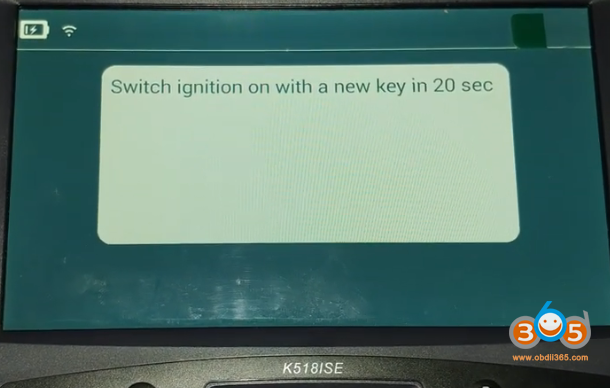

Turn on ignition with a new key in 20s

Turn off ignition in 17s

lonsdor-k518-honda-crv-2015-key-12

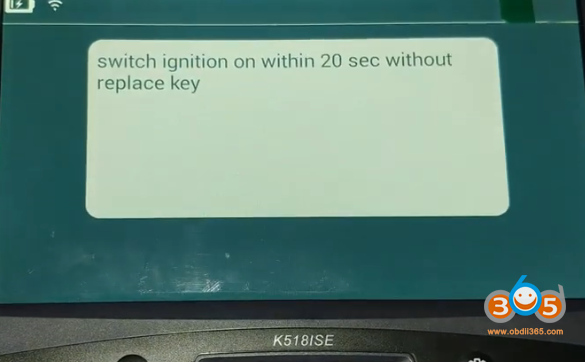

Turn on ignition switch without replacing key in 20s

Turn off ignition in 15s

Turn on ignition

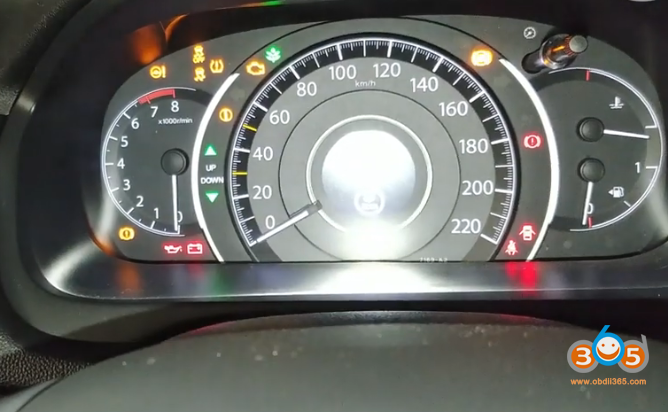

Check if the immobilizer indicator goes off

lonsdor-k518-honda-crv-2015-key-13

lonsdor-k518-honda-crv-2015-key-14

If yes, turn off ignition in 15s

Switch ignition on

lonsdor-k518-honda-crv-2015-key-15

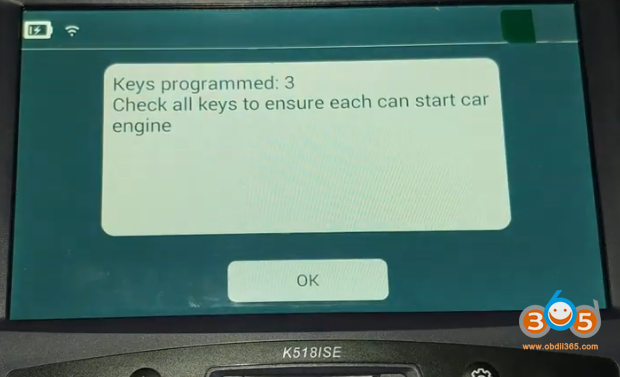

The new key has been successfully programmed

lonsdor-k518-honda-crv-2015-key-16

Test all keys.

Done.
