Lonsdor K518ISE Program SsangYong Kyron 2014 Remote Key

How to program remote key on a SsangYong Kyron 2014 using Lonsdor K518ISE key programmer.





Step 1: Program key

Connect K518 host with vehicle via OBD

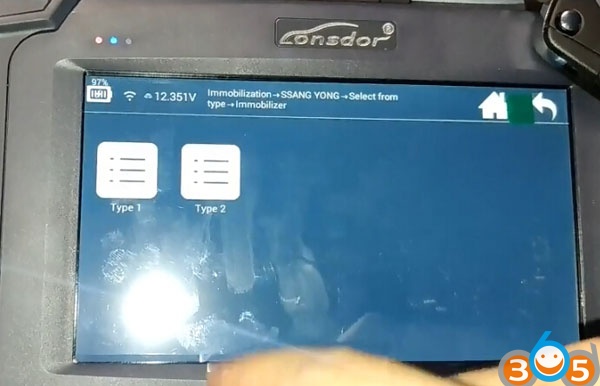

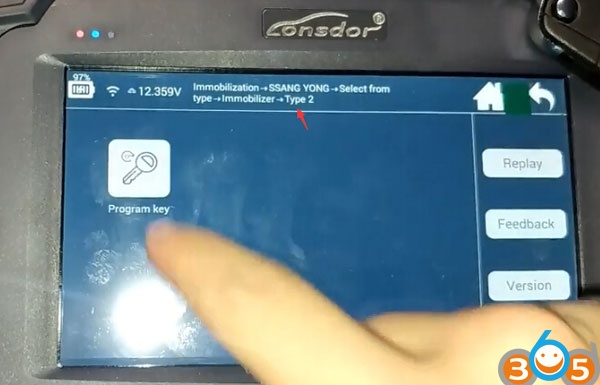

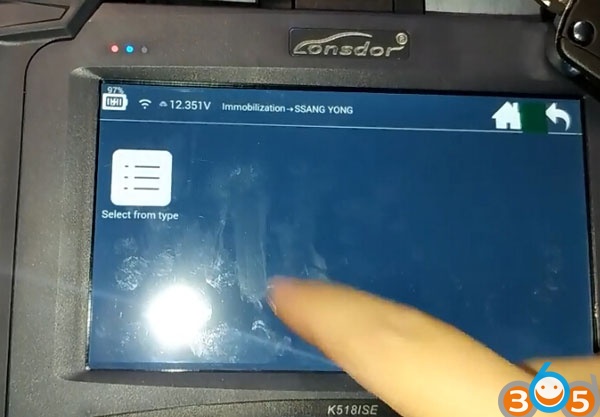

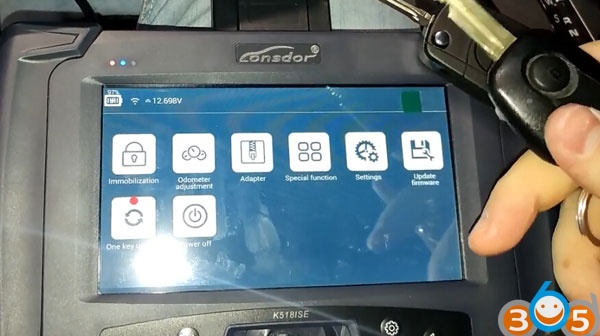

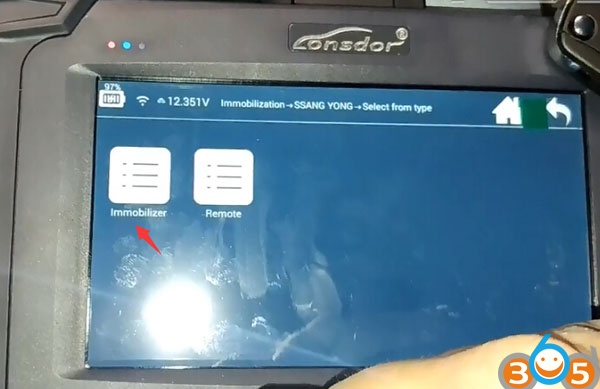

Select Immobilizer->SsangYong->Select from Type->Immobilizer->Type 2->Program key

lonsdor-k518-SsangYong-Kyron-1 lonsdor-k518ise-SsangYong-Kyron-2 lonsdor-k518-SsangYong-Kyron-3 lonsdor-k518-SsangYong-Kyron-4 lonsdor-k518-SsangYong-Kyron-5 lonsdor-k518-SsangYong-Kyron-6

(If don’t know which type to choose, try one by one. When select Type 1, it gave communication failed error. Type2 works)

Turn ignition switch to ON position with original key

lonsdor-k518-SsangYong-Kyron-7

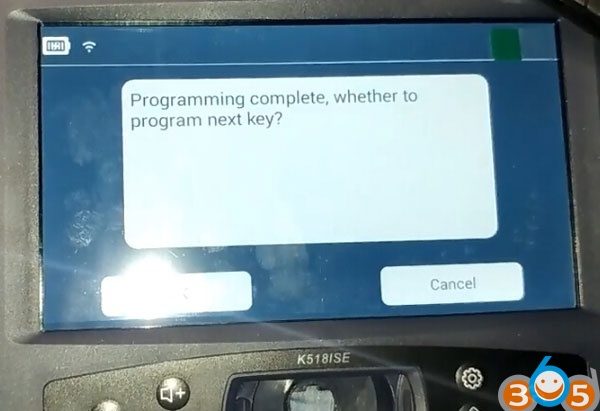

Program complete. Program next key

lonsdor-k518-SsangYong-Kyron-8

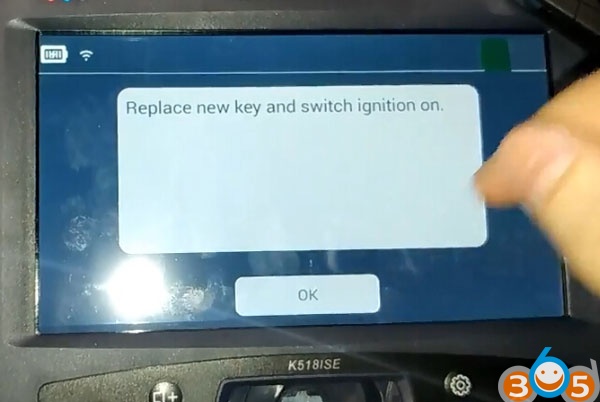

Replace new key and turn on ignition

Program 2nd key success

Both keys can start car

lonsdor-k518-SsangYong-Kyron-9



Step 2: Program remote with Lonsdor k518

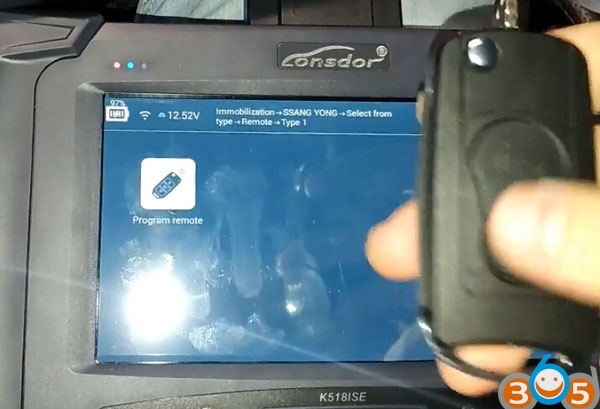

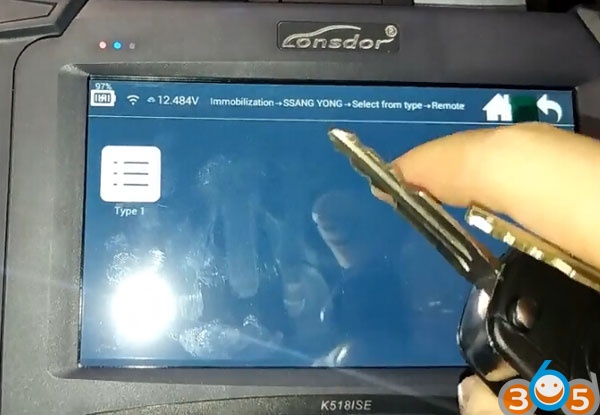

Select SsangYong->Select from Type->Remote->Type 1->Program remote

lonsdor-k518-SsangYong-Kyron-10

lonsdor-k518-SsangYong-Kyron-11

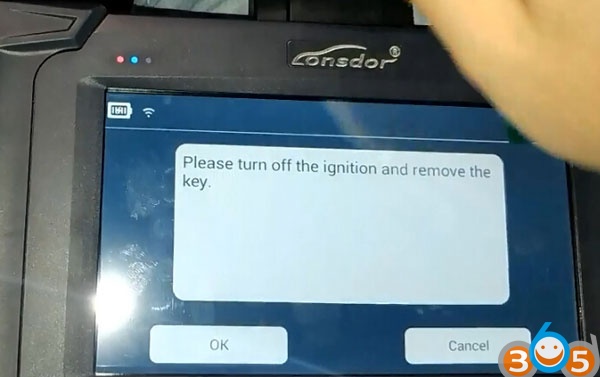

Turn ignition off and remove key

lonsdor-k518-SsangYong-Kyron-12

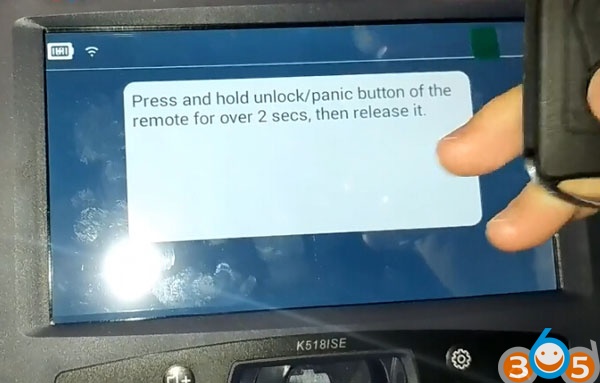

Press and hold unlock/panic button of the remote for 2 secs, then release it

lonsdor-k518-SsangYong-Kyron-13

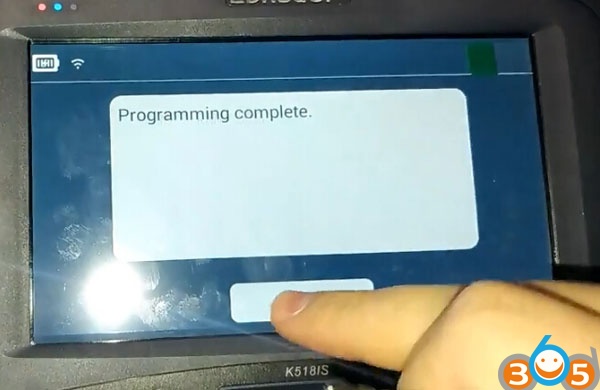

Program remote success

lonsdor-k518-SsangYong-Kyron-14

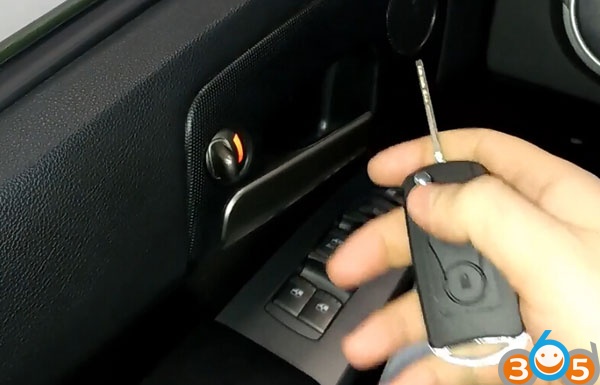

Remote control works!

lonsdor-k518-SsangYong-Kyron-15
