Lonsdor K518ISE Read Pin Code on Citroen Jumpy 2018

New test report: Lonsdor K518ISE has successfully read pin code on a new Citroen Jumpy year 2018.

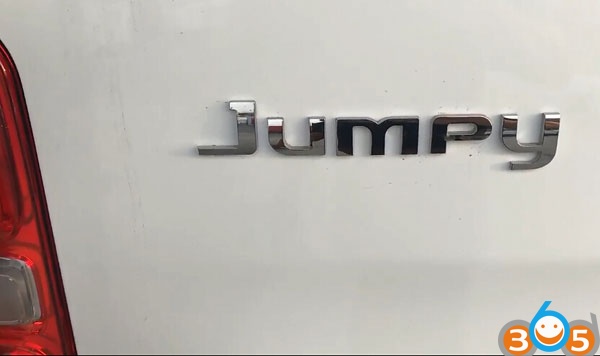

lonsdor-k518-citroen-jumpy-2

Connect K518 host with vehicle via OBD socket

Turn on ignition switch

Select Immobilizer->Citroen->Read Pin Code->Type 1

If you are not sure which type to choose from, try one by one

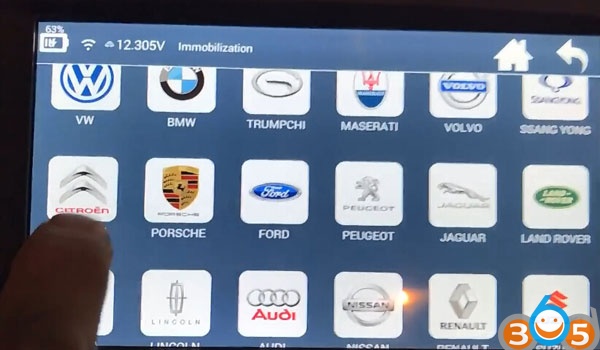

lonsdor-k518-citroen-jumpy-3

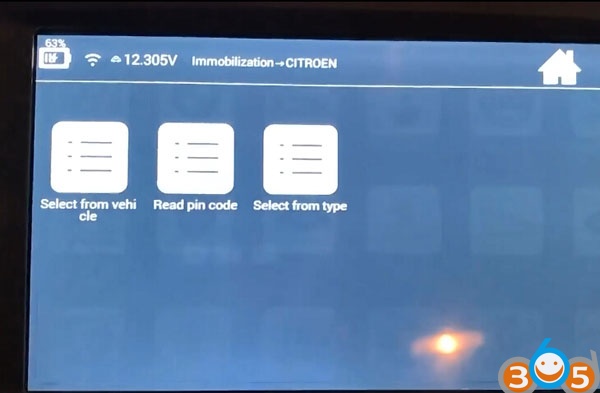

lonsdor-k518-citroen-jumpy-4

lonsdor-k518-citroen-jumpy-5

Turn off ignition. Don’t insert smart key.

Turn on ignition again

Turn off ignition

Communicating

Follow K518 prompt to repeat Ignition ON/OFF operation for several times

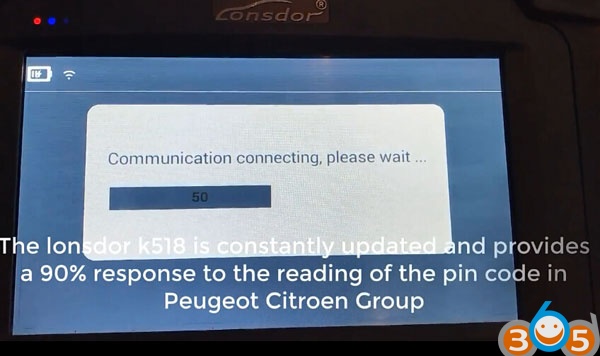

lonsdor-k518-citroen-jumpy-6

The lonsdor K518 is constantly updated and provides a 90% response to the reading of the pin code in Peugeot Citroen group

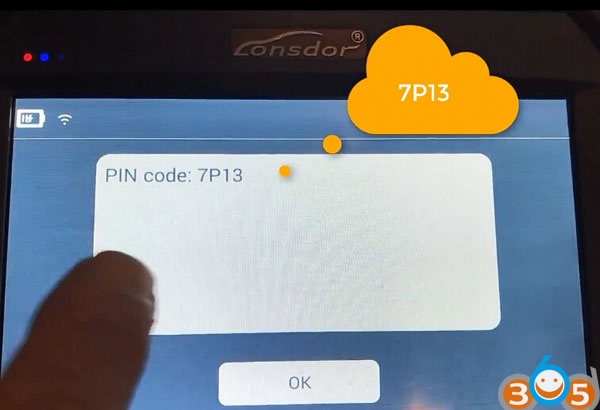

lonsdor-k518-citroen-jumpy-7

Pin code reading success.
