Program Toyota Corolla 2012 72G Remote Key with Lonsdor K518ISE

The task is to make 2 new master keys after lost all keys on a 2012 Toyota Corolla car with key chip 72G. Immobilizer reset, key programming and remote control programming is done with Lonsdor K518ISE car key programmer.



Main steps:





Step 1: Generate 72G key chip

Step 2: Reset IMMO

Step 3: Program 1st master key

Step 4: Add another master key

Step 5: Program remote control



Step-by-step procedure:



Step 1: Generate 72G key chip

lonsdor-k518-2012-toyota-corolla-2

lonsdor-k518-2012-toyota-corolla-3

lonsdor-k518-2012-toyota-corolla-4

In Lonsdor K518ISE, select Generate key chip->4D->Toyota 72G

lonsdor-k518-2012-toyota-corolla-5
Place a blank chip into K518 card slot, press OK

lonsdor-k518-2012-toyota-corolla-6

Select a master key position

Generating

lonsdor-k518-2012-toyota-corolla-7

Generate 72G key chip succeed.



Step 2: Reset IMMO

Select Immobilizer->Toyota-> Select from vehicle->China->Corolla->2012 up-> Mechanical key (with 72 G)->Reset Immobilizer (all key lost)

lonsdor-k518-2012-toyota-corolla-8

lonsdor-k518-2012-toyota-corolla-9

lonsdor-k518-2012-toyota-corolla-10

lonsdor-k518-2012-toyota-corolla-11

lonsdor-k518-2012-toyota-corolla-12

Turn off ignition switch

Switch ignition ON

Getting immo data

lonsdor-k518-2012-toyota-corolla-13

Switch ignition off and remove key

Turn on ignition again

lonsdor-k518-2012-toyota-corolla-14

Programming key in progress

lonsdor-k518-2012-toyota-corolla-15

Switch ignition off and remove key



Step 3: Program 1st master key

Follow steps below to program key within 120s (here we need to program 1 master key)

lonsdor-k518-2012-toyota-corolla-16

lonsdor-k518-2012-toyota-corolla-17

Program 1 master key:
Insert the first master key, switch ignition on and wait 5 sec, and then switch ignition off 5 times. When immo indicator goes off, programming completed.

lonsdor-k518-2012-toyota-corolla-18

1st master key programming completed

lonsdor-k518-2012-toyota-corolla-19

The key can start car.





Step 4: Add another master key

lonsdor-k518-2012-toyota-corolla-20

Select Add key function

lonsdor-k518-2012-toyota-corolla-21

A master key is required before remove or add other keys.

lonsdor-k518-2012-toyota-corolla-22

Insert the programmed original key into ignition

lonsdor-k518-2012-toyota-corolla-23

Insert the key to be programmed. Don’t turn on the ignition switch.

lonsdor-k518-2012-toyota-corolla-24

Wait for the security light go off. Programming completed.



Step 5: Program remote control

In Lonsdor K518, go to Immobilizer->Toyota->Select from vehicle->China->Corolla->2012 up->Remote->Program remote

lonsdor-k518-2012-toyota-corolla-25

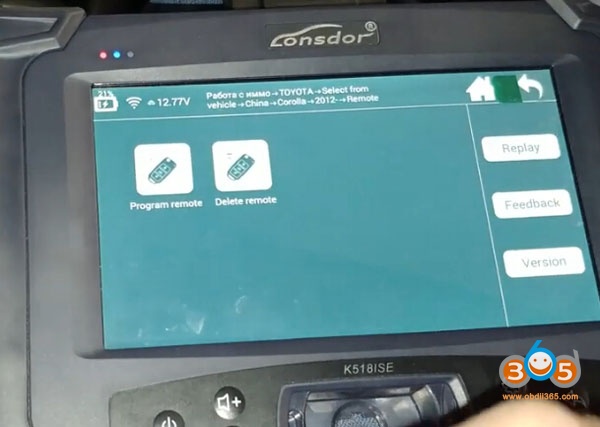

lonsdor-k518-2012-toyota-corolla-26

Turn on ignition switch

lonsdor-k518-2012-toyota-corolla-27

Open the driver door. When the internal locks is open, open other doors.

Reading data

lonsdor-k518-2012-toyota-corolla-28

Press and hold the lock and unlock buttons of the remote to be programmed for 2 sec simultaneously within 30 sec, press the lock button once, click OK to continue

lonsdor-k518-2012-toyota-corolla-29

Remote programming succeed.
