SKP1000 Program Nissan Qashqai 2016 Smart Card without BCM code

Nissan Qashqai 2016 smart card key programming is the same as new X-tail. Both has 20-digit BCM code. Original Nissan Qashqai key use special 2-button 315MHz no chip smart key. SKP1000 key programmer will program smart card for this model without BCM code.

skp1000-nissan-QASHQAI-1

skp1000-nissan-QASHQAI-2

(CI600 Plus the Chinese version of SKP1000)

skp1000-nissan-QASHQAI-3

2016 Qashqai BCM Type 284B1-4BY5A is different from X-tail, but they have same immobilizer system

skp1000-nissan-QASHQAI-4

Connect SKP-1000 key programmer with vehicle via OBD socket

Select Immobilizer->Nissan->2013-Nissan X-tail smart card (Auto read BCM code)

skp1000-nissan-QASHQAI-5

Select OBDII connector

Turn Ignition to ON position

Press YES to continue

skp1000-nissan-QASHQAI-6

Select Smart Card System (Without BCM Code)

skp1000-nissan-QASHQAI-7

Configuring the system….

Select Program Smart Card

skp1000-nissan-QASHQAI-8

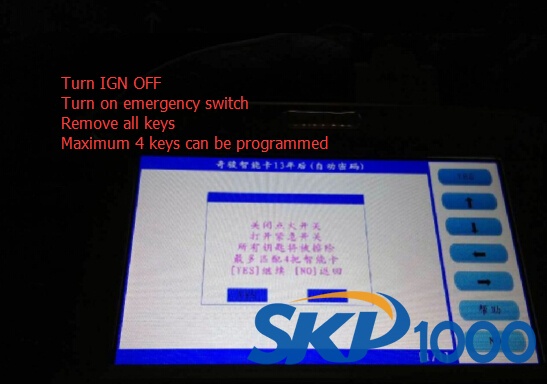

Turn ignition OFF

Turn on emergency switch (Shown as picture below)

Remove all keys

Maximum 4 keys can be programmed

Press YES to continue

SKP1000 will read BCM code automatically, then start to program smart card. This will delete all smart card.

skp1000-nissan-QASHQAI-9

skp1000-nissan-QASHQAI-10

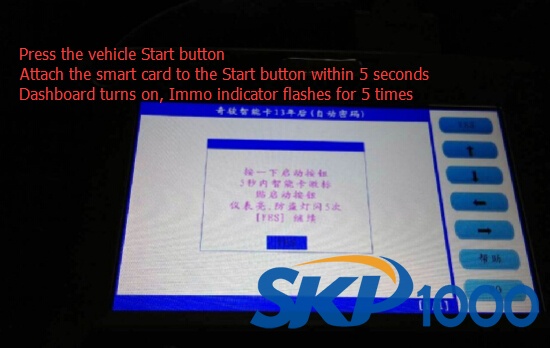

Press the vehicle engine Start button once

Attach the smart card to the Start button within 5 seconds

Dashboard turns on, immo indicator flashes for 5 times

Press YES to continue

skp1000-nissan-QASHQAI-11

skp1000-nissan-QASHQAI-12

Note: Make sure the dashboard turns on, if dash is not on, you cannot program key.

The first smart card must be original.

If the immobilizer indicator does no go off, you may use the wrong key type. Please attach the old smart card to Start button immediately.

skp1000-nissan-QASHQAI-13

Program success.

Press YES if you need to program next key

Turn ignition OFF. Wait for 5 seconds

skp1000-nissan-QASHQAI-14

Follow procedure above to program next smart card

skp1000-nissan-QASHQAI-15

Done.
