SKP1000 Read Pin Code and Program Smart Key on a Buick Envision 2016

Guide to read security pin code and program smart key on a Buick Envision 2016 by using SKP1000 key programmer via OBD.

skp1000-buick-envision-1

Key information:

Original key: 3-button smart key

Frequency: 433MHz

Chip: ID46 chip

Start way: One button Start/Stop

Pin code: read 4-digit pin code by SKP1000 via OBD

Card slot: Yes

Device: SKP 1000 tablet auto key programmer



Procedure:

Step 1: Read Pin Code

Connect SKP1000 car key programmer with vehicle via OBD

Turn ignition ON

Select GM->Buick->Read Pin Code-> System 1

skp1000-buick-envision-2

skp1000-buick-envision-3

skp1000-buick-envision-4

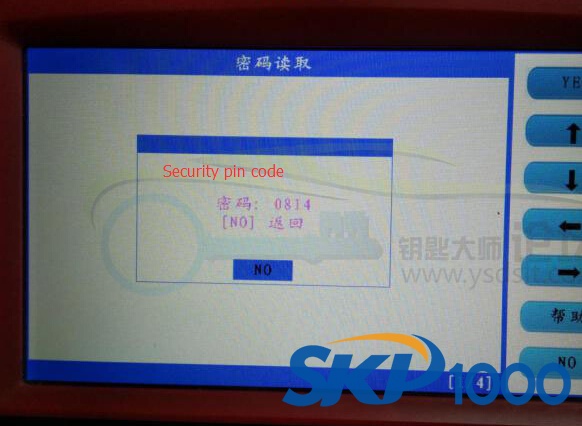

SKP-1000 will auto detect vehicle VIN and 4-digit security code

skp1000-buick-envision-5

skp1000-buick-envision-6

Step 2: Program Smart Key

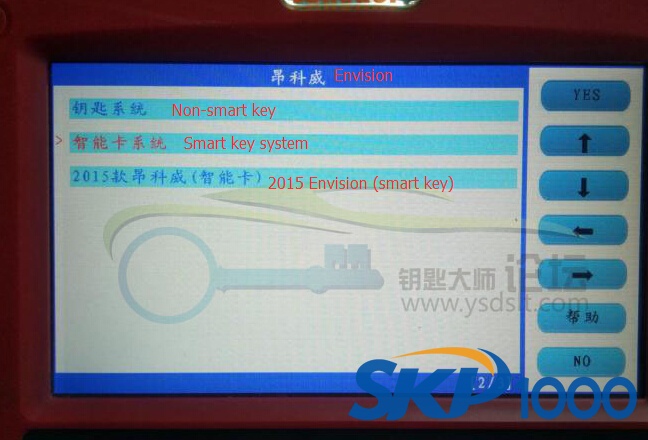

Back to Buick menu, select Envision-> Smart key system

skp1000-buick-envision-7

Choose OBDII connector

Turn ignition OFF

Press YES

skp1000-buick-envision-8

SKP1000 will display current key number: 1

skp1000-buick-envision-9

Select Program Smart Key

skp1000-buick-envision-10

Put a new key into card slot and take all other keys out of vehicle

skp1000-buick-envision-11

skp1000-buick-envision-12

SKP1000 requires to enter 4-digit pin code to access

skp1000-buick-envision-13

Confirming entered value, please wait for about 5 minutes

skp1000-buick-envision-14

Configuring… Please wait for 12 minutes

skp1000-buick-envision-15

Press on the Start button for once

Press YES

skp1000-buick-envision-16

Configuring system, please wait…

Whether to program next key?

Press YES to continue

skp1000-buick-envision-17

Insert next key into card slot

Press YES

skp1000-buick-envision-18

Press on the Start button for once

Whether to program next key?

Press YES

Keep press on the Start button for 12s

skp1000-buick-envision-19

Release Start button

skp1000-buick-envision-20

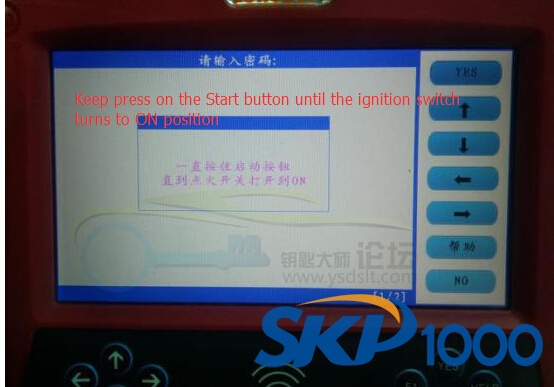

Keep press on the Start button until the ignition switch turns to ON position

skp1000-buick-envision-21

Press on Start button

Turn ignition OFF

Press YES

skp1000-buick-envision-22

Configuring system, please wait for 30s

SKP-1000 key programmer prompts all keys must be synchronized with the vehicle, press YES to continue

skp1000-buick-envision-23

Press on the Start button and start engine

skp1000-buick-envision-24

Configuring…

Press on the Start button and turn off engine

skp1000-buick-envision-25

Follow SKP 1000 instruction:

Remove key from card slot

Press on Lock button of the smart key

Press on Unlock button of the smart key

Press YES



Sync more keys?

Press YES

skp1000-buick-envision-26

Follow steps above to add next key

Insert next key into card slot, take away all other keys

skp1000-buick-envision-27

Press on Start button and start engine

Configuring

Press on Start button and turn off engine

Remove key from card slot

Press on Lock button of the smart key

Press on Unlock button of the smart key

Press YES

Sync more keys?

Press YES



Current key number: 2

skp1000-buick-envision-28

Program success.

skp1000-buick-envision-29
