Lonsdor K518ISE Read Opel Corsa-D 2008 Pin Code and Add PCF7941 Remote Key

How to read pin code and program new remote key on a Opel Corsa-D 2008 using Lonsdor K518ISE key programmer.

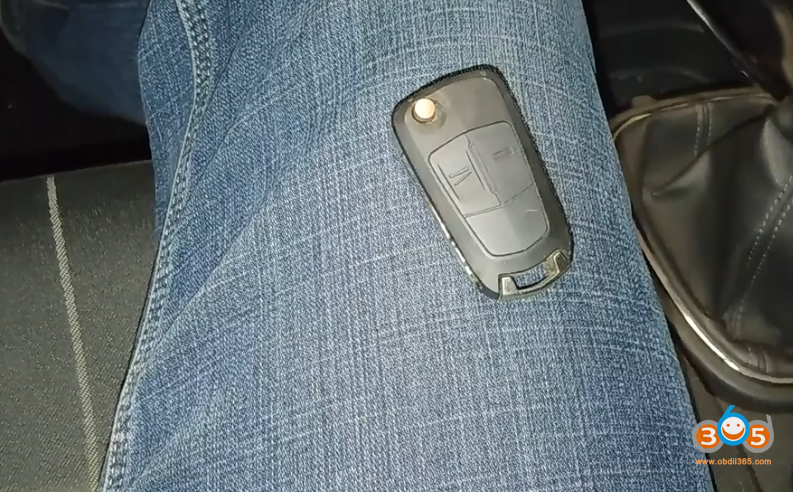

Chip: ID46 PCF7941 (HITAG2)
Remote frequency: 433MHz

lonsdor-k518ise-opel-corsa-1

Pin code: read by K518



Step 1: Read Pin Code

Connect K518 host with vehicle via OBD socket

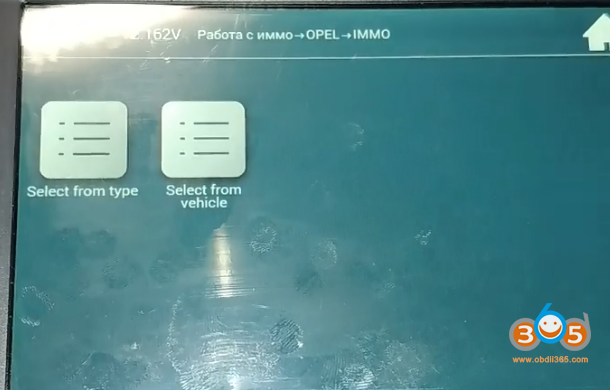

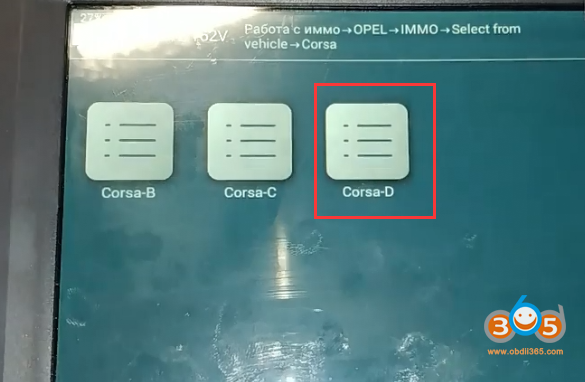

Select Opel->IMMO->Select from vehicle->Corsa->Corsa-D->Immobilizer

lonsdor-k518ise-opel-corsa-2

lonsdor-k518ise-opel-corsa-3

lonsdor-k518ise-opel-corsa-4

lonsdor-k518ise-opel-corsa-5

lonsdor-k518ise-opel-corsa-6

lonsdor-k518ise-opel-corsa-7

lonsdor-k518ise-opel-corsa-8

Check key information and manual

lonsdor-k518ise-opel-corsa-9

Select Read Pin Code

Turn on ignition switch

Verifying pin code

lonsdor-k518ise-opel-corsa-10

Read 4-digit pin code success.





Step 2: Program remote key

lonsdor-k518ise-opel-corsa-11

Select Add key function

Insert a key to be programmed and turn on ignition switch

lonsdor-k518ise-opel-corsa-13

Current number of keys programmed: 1

lonsdor-k518ise-opel-corsa-14

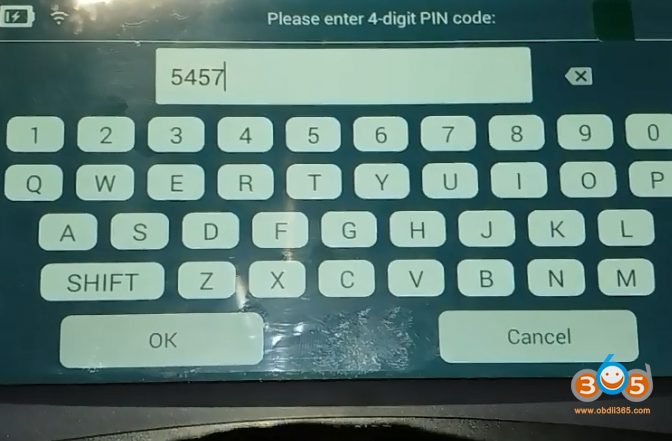

Lonsdor K518ISE auto fill in the pin code just read

lonsdor-k518ise-opel-corsa-15

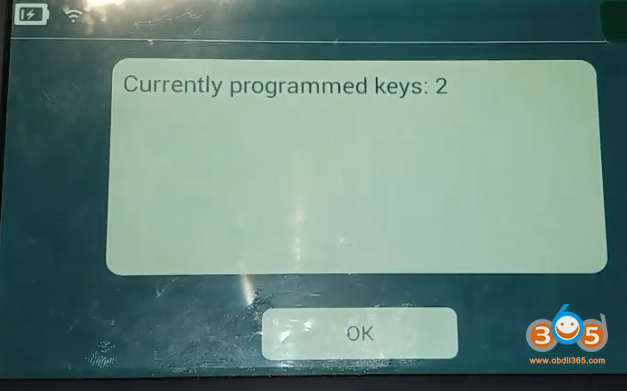

Second keys has been programmed success

Switch off ignition

Turn ignition to ON position again

Programming complete

lonsdor-k518ise-opel-corsa-16

Test the remote control

lonsdor-k518ise-opel-corsa-17

Start engine.

Done.
